| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_106T01_9000006596_58808cztM0_level2.fits | modeM0/AS1A14_106T01_9000006596_58808cztM0_level2_quad_clean.evt |
| Size (bytes) | 699,085,440 | 94,518,720 |
| Size | 666.7 MB | 90.1 MB |
| Events in quadrant A | 3,362,091 | 697,109 |
| Events in quadrant B | 4,672,611 | 719,013 |
| Events in quadrant C | 7,598,467 | 498,045 |
| Events in quadrant D | 9,685,485 | 445,627 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15173 | 0 |
| B | 0 | 18808 | 0 |
| C | 0 | 27513 | 0 |
| D | 0 | 33964 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7208 | 27 | 0.374584% |
| B | 7208 | 292 | 4.051054% |
| C | 7207 | 1929 | 26.765645% |
| D | 7207 | 2105 | 29.207715% |

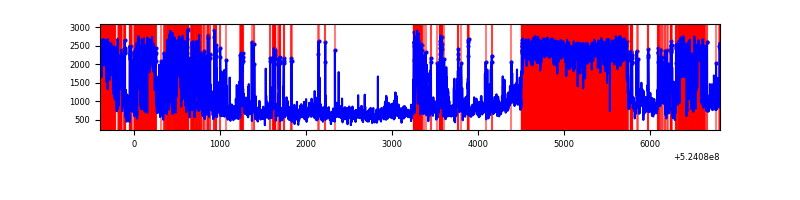

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7208 | 7208 | 22 | 22 | 0.31% | 0.31% |  |
| B | 7207 | 7207 | 253 | 253 | 3.51% | 3.51% |  |
| C | 7207 | 7207 | 1450 | 1450 | 20.12% | 20.12% |  |
| D | 7206 | 7206 | 2097 | 2097 | 29.10% | 29.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 69789 | 352.11 | 787 | 768 | 196.0 |
| A | 15 | 233 | 53274 | 267.86 | 787 | 768 | 196.0 |
| A | 2 | 143 | 40878 | 204.62 | 787 | 768 | 196.0 |
| B | 2 | 136 | 541709 | 3272.87 | 769 | 744 | 165.3 |
| B | 2 | 249 | 277230 | 1672.76 | 769 | 744 | 165.3 |
| B | 4 | 236 | 271350 | 1637.18 | 769 | 744 | 165.3 |
| C | 15 | 198 | 4594568 | 26135.84 | 632 | 626 | 175.8 |
| C | 12 | 252 | 213929 | 1213.52 | 632 | 626 | 175.8 |
| C | 13 | 3 | 90647 | 512.15 | 632 | 626 | 175.8 |
| D | 12 | 110 | 5267908 | 28053.78 | 652 | 622 | 187.8 |
| D | 2 | 249 | 1050820 | 5593.4 | 652 | 622 | 187.8 |
| D | 11 | 129 | 386802 | 2056.81 | 652 | 622 | 187.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

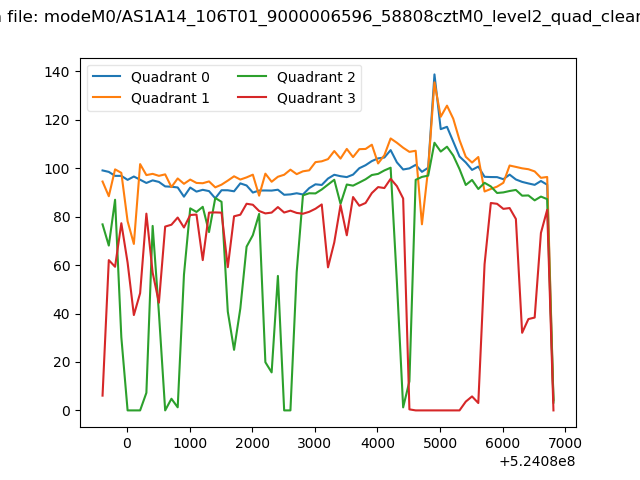

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

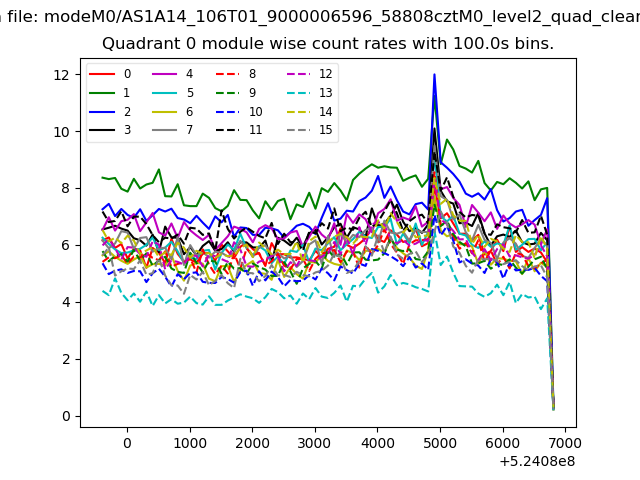

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

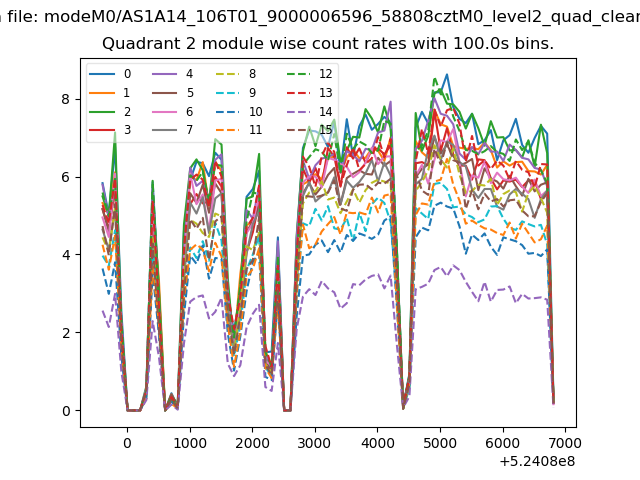

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

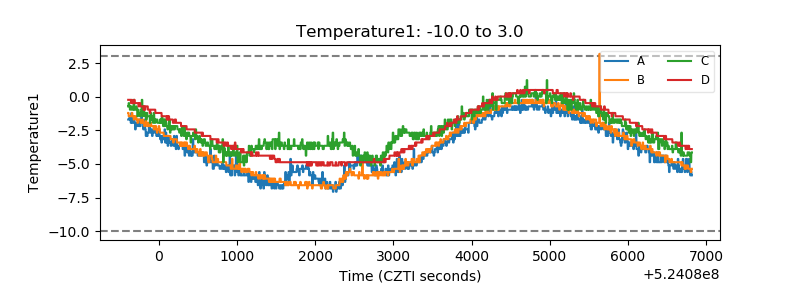

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

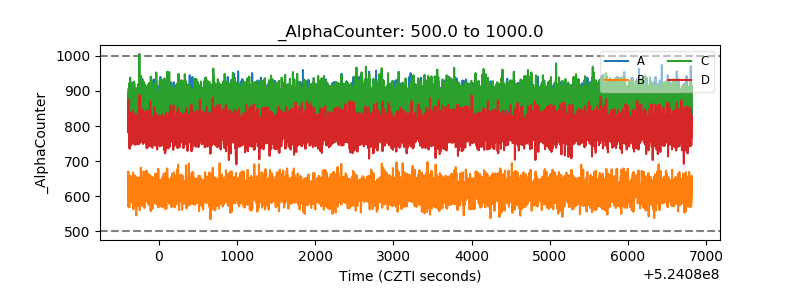

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

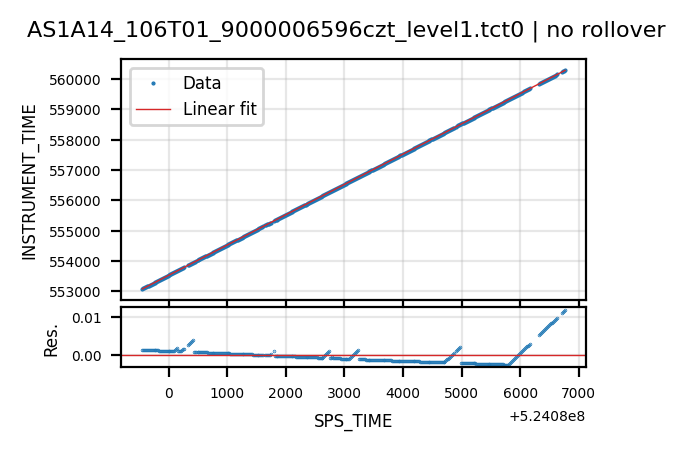

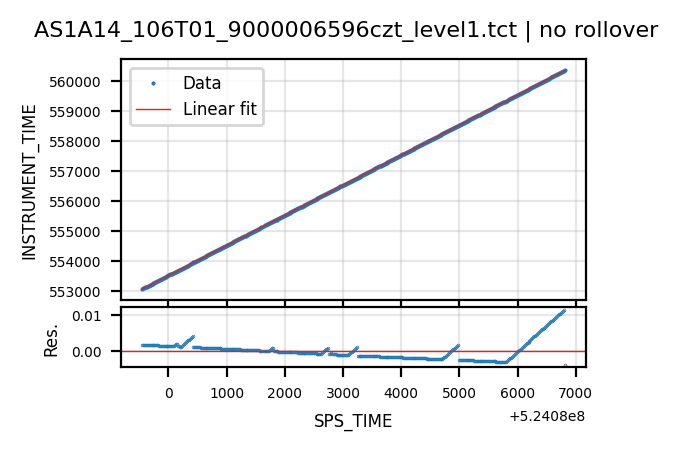

| Tct |  |  |
