| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_106T01_9000006596_58809cztM0_level2.fits | modeM0/AS1A14_106T01_9000006596_58809cztM0_level2_quad_clean.evt |
| Size (bytes) | 641,364,480 | 107,913,600 |
| Size | 611.7 MB | 102.9 MB |
| Events in quadrant A | 3,840,363 | 747,724 |
| Events in quadrant B | 4,677,174 | 779,304 |
| Events in quadrant C | 6,526,579 | 613,720 |
| Events in quadrant D | 8,089,913 | 582,497 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17069 | 0 |
| B | 0 | 19372 | 1 |
| C | 0 | 24933 | 0 |
| D | 0 | 29397 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7826 | 84 | 1.073345% |
| B | 7826 | 292 | 3.731153% |
| C | 7826 | 1181 | 15.090723% |
| D | 7826 | 1192 | 15.231280% |

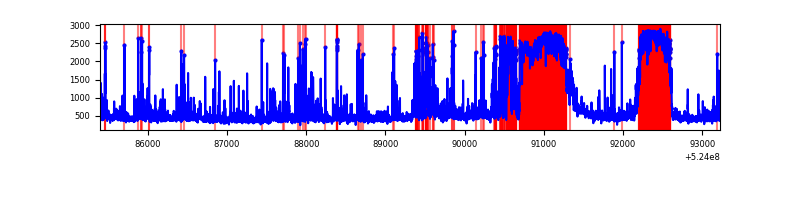

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7825 | 7825 | 75 | 75 | 0.96% | 0.96% |  |
| B | 7826 | 7826 | 224 | 224 | 2.86% | 2.86% |  |
| C | 7826 | 7826 | 1117 | 1117 | 14.27% | 14.27% |  |
| D | 7826 | 7826 | 1150 | 1150 | 14.69% | 14.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 187014 | 868.91 | 857 | 835 | 214.3 |
| A | 15 | 233 | 135589 | 628.9 | 857 | 835 | 214.3 |
| A | 13 | 248 | 97751 | 452.31 | 857 | 835 | 214.3 |
| B | 4 | 236 | 315170 | 1727.55 | 842 | 811 | 182.0 |
| B | 5 | 172 | 276336 | 1514.14 | 842 | 811 | 182.0 |
| B | 2 | 249 | 258171 | 1414.31 | 842 | 811 | 182.0 |
| C | 15 | 198 | 2639946 | 12824.8 | 751 | 745 | 205.8 |
| C | 12 | 252 | 255524 | 1238.06 | 751 | 745 | 205.8 |
| C | 13 | 3 | 233740 | 1132.2 | 751 | 745 | 205.8 |
| D | 12 | 110 | 4164131 | 18675.29 | 781 | 745 | 222.9 |
| D | 2 | 249 | 341071 | 1526.56 | 781 | 745 | 222.9 |
| D | 8 | 129 | 136475 | 608.83 | 781 | 745 | 222.9 |

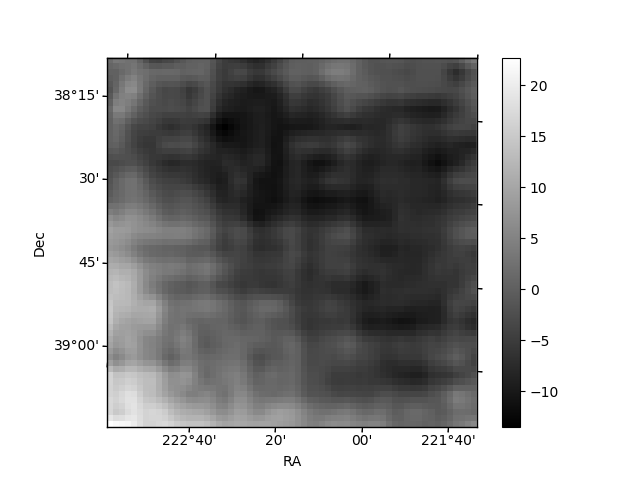

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

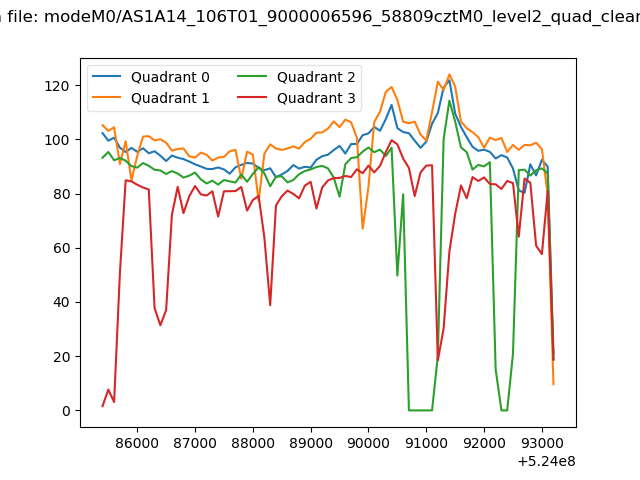

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

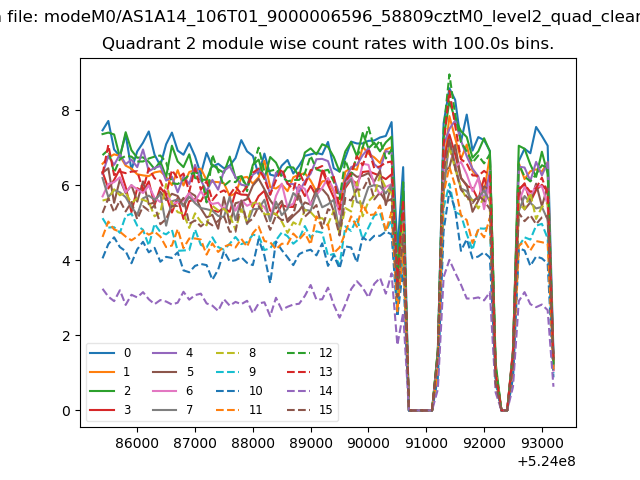

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

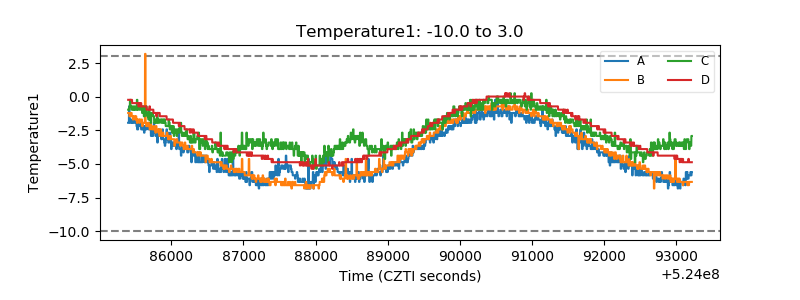

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

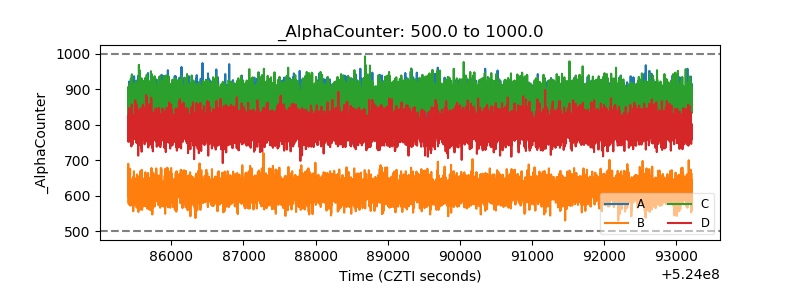

| Alpha Counter |  |

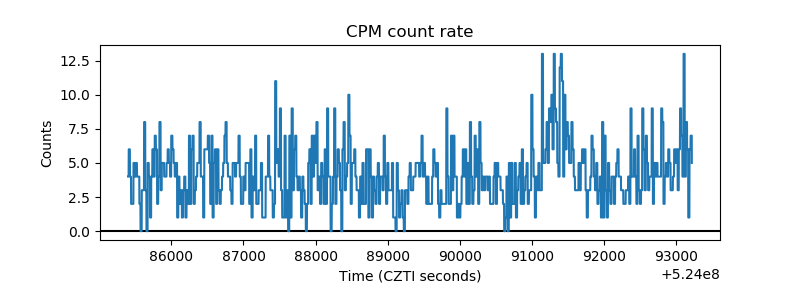

| _CPM_Rate |  |

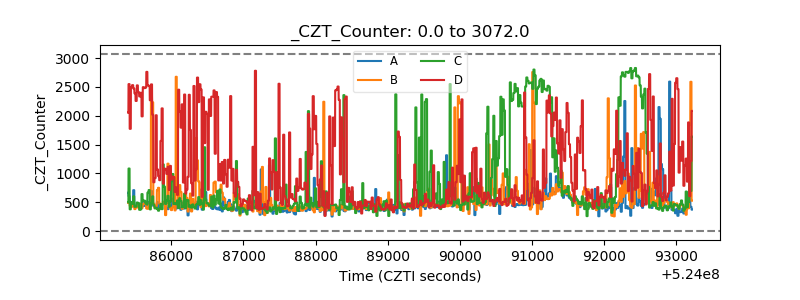

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
