| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_106T01_9000006596_58822cztM0_level2.fits | modeM0/AS1A14_106T01_9000006596_58822cztM0_level2_quad_clean.evt |
| Size (bytes) | 703,814,400 | 109,958,400 |
| Size | 671.2 MB | 104.9 MB |
| Events in quadrant A | 3,708,664 | 753,980 |
| Events in quadrant B | 4,634,536 | 796,178 |
| Events in quadrant C | 5,955,751 | 669,822 |
| Events in quadrant D | 11,154,421 | 570,110 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16629 | 0 |
| B | 0 | 19216 | 0 |
| C | 0 | 23204 | 0 |
| D | 0 | 38604 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7747 | 48 | 0.619595% |
| B | 7748 | 167 | 2.155395% |
| C | 7748 | 658 | 8.492514% |
| D | 7747 | 1466 | 18.923454% |

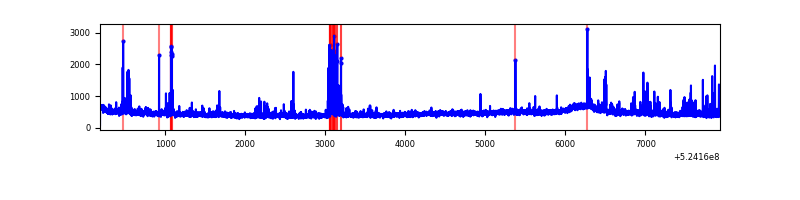

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7747 | 7747 | 28 | 28 | 0.36% | 0.36% |  |
| B | 7748 | 7748 | 87 | 87 | 1.12% | 1.12% |  |
| C | 7748 | 7748 | 607 | 607 | 7.83% | 7.83% |  |
| D | 7747 | 7747 | 1301 | 1301 | 16.79% | 16.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 115462 | 531.47 | 865 | 841 | 215.7 |
| A | 10 | 251 | 59472 | 271.86 | 865 | 841 | 215.7 |
| A | 2 | 143 | 48888 | 222.78 | 865 | 841 | 215.7 |
| B | 7 | 0 | 295716 | 1605.55 | 852 | 821 | 183.7 |
| B | 4 | 171 | 276937 | 1503.31 | 852 | 821 | 183.7 |
| B | 5 | 185 | 169205 | 916.77 | 852 | 821 | 183.7 |
| C | 6 | 223 | 1074619 | 4758.78 | 818 | 810 | 225.6 |
| C | 9 | 38 | 821392 | 3636.56 | 818 | 810 | 225.6 |
| C | 13 | 3 | 451109 | 1995.58 | 818 | 810 | 225.6 |
| D | 12 | 110 | 7165915 | 31469.78 | 789 | 754 | 227.7 |
| D | 2 | 120 | 491103 | 2153.64 | 789 | 754 | 227.7 |
| D | 5 | 32 | 102829 | 448.32 | 789 | 754 | 227.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

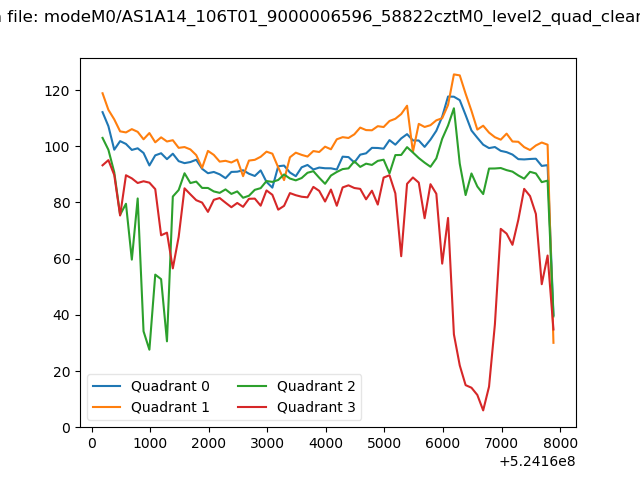

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

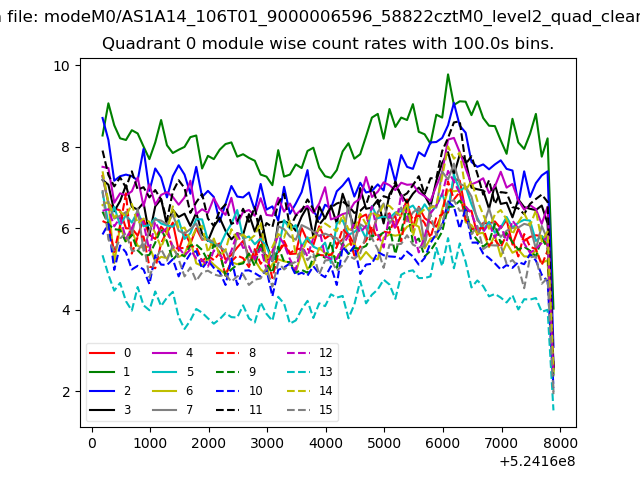

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

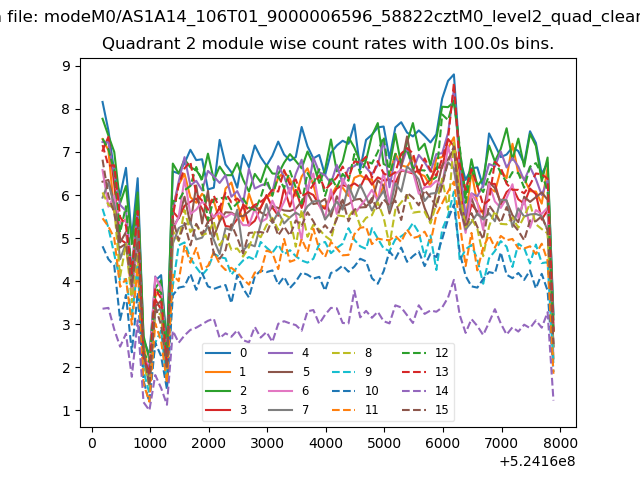

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

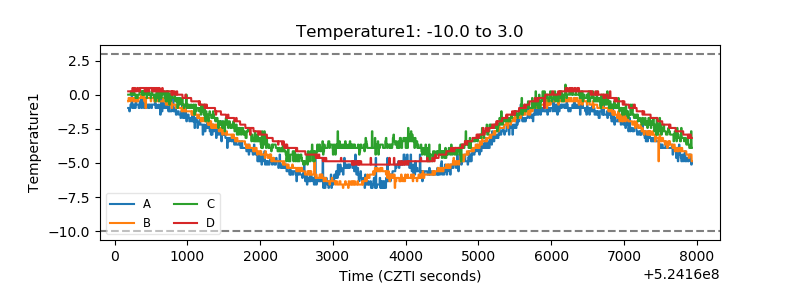

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

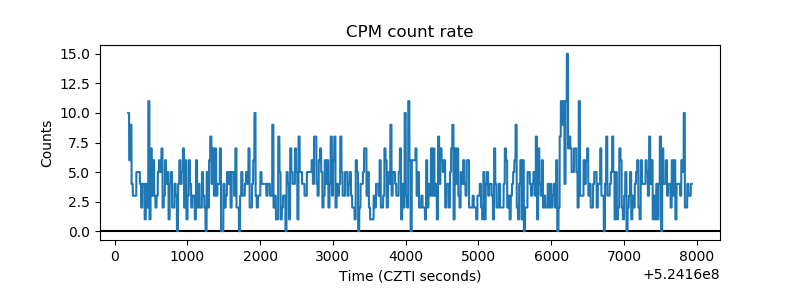

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

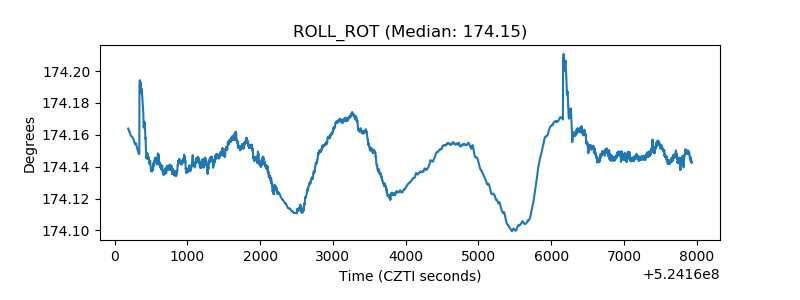

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

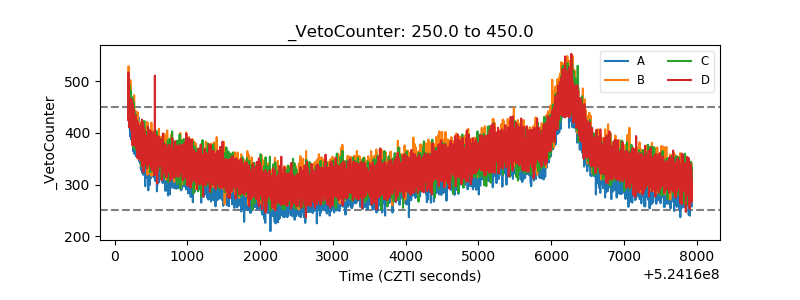

| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
