| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_106T01_9000006596_58823cztM0_level2.fits | modeM0/AS1A14_106T01_9000006596_58823cztM0_level2_quad_clean.evt |
| Size (bytes) | 667,065,600 | 102,908,160 |
| Size | 636.2 MB | 98.1 MB |
| Events in quadrant A | 3,789,423 | 705,071 |
| Events in quadrant B | 5,295,886 | 736,824 |
| Events in quadrant C | 4,543,447 | 642,388 |
| Events in quadrant D | 10,491,827 | 517,246 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16557 | 0 |
| B | 0 | 20951 | 0 |
| C | 0 | 18771 | 0 |
| D | 0 | 36417 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7387 | 67 | 0.906999% |
| B | 7388 | 281 | 3.803465% |
| C | 7388 | 397 | 5.373579% |
| D | 7388 | 1820 | 24.634543% |

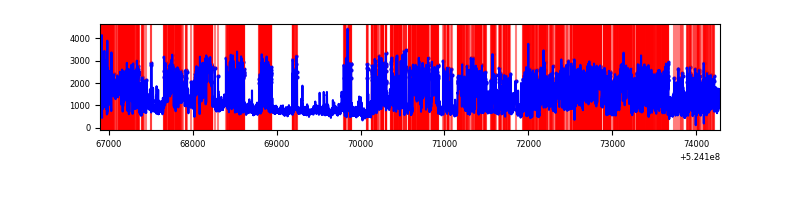

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7387 | 7387 | 50 | 50 | 0.68% | 0.68% |  |
| B | 7388 | 7388 | 174 | 174 | 2.36% | 2.36% |  |
| C | 7388 | 7388 | 356 | 356 | 4.82% | 4.82% |  |
| D | 7388 | 7388 | 1709 | 1709 | 23.13% | 23.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 353093 | 1770.32 | 802 | 783 | 199.0 |
| A | 15 | 233 | 139747 | 698.28 | 802 | 783 | 199.0 |
| A | 3 | 245 | 36211 | 178.02 | 802 | 783 | 199.0 |
| B | 7 | 0 | 956089 | 5701.48 | 786 | 759 | 167.6 |
| B | 4 | 171 | 510724 | 3043.51 | 786 | 759 | 167.6 |
| B | 5 | 172 | 192003 | 1141.36 | 786 | 759 | 167.6 |
| C | 15 | 164 | 825361 | 3906.3 | 767 | 761 | 211.1 |
| C | 13 | 3 | 279643 | 1321.12 | 767 | 761 | 211.1 |
| C | 14 | 254 | 270986 | 1280.11 | 767 | 761 | 211.1 |
| D | 12 | 110 | 7136290 | 35020.14 | 720 | 686 | 203.8 |
| D | 2 | 120 | 169151 | 826.79 | 720 | 686 | 203.8 |
| D | 5 | 32 | 88056 | 428.79 | 720 | 686 | 203.8 |

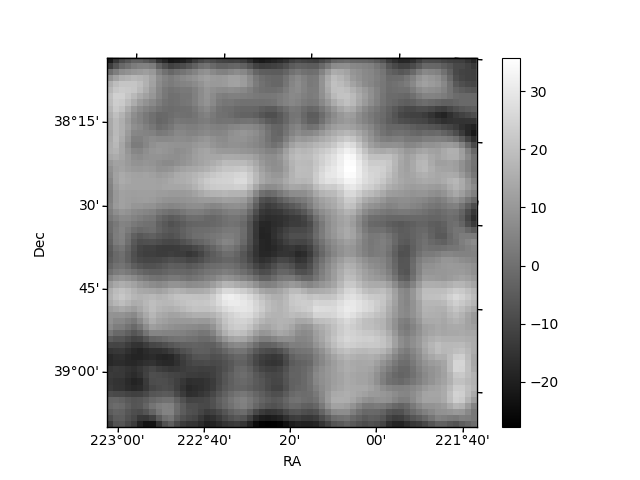

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

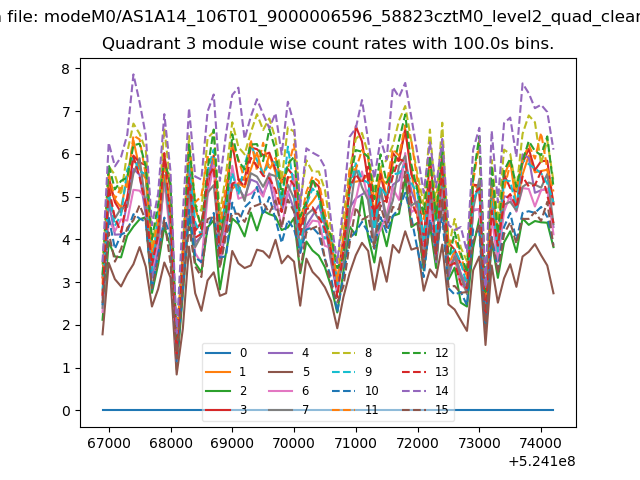

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

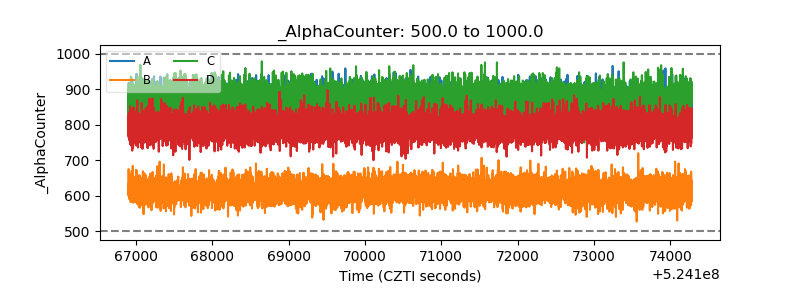

| Alpha Counter |  |

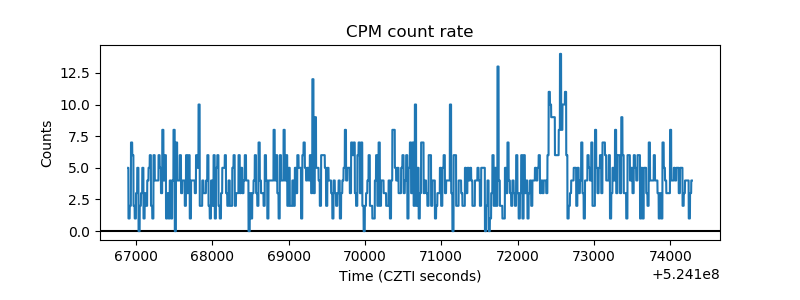

| _CPM_Rate |  |

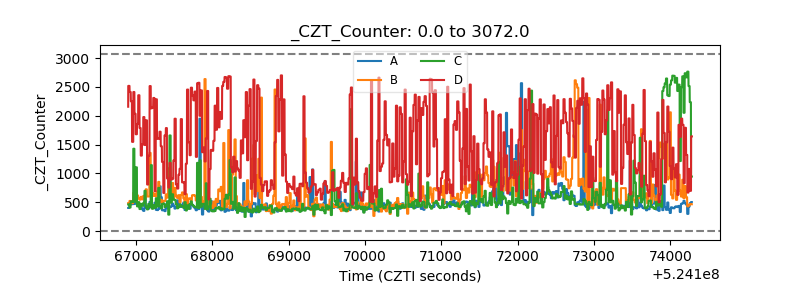

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

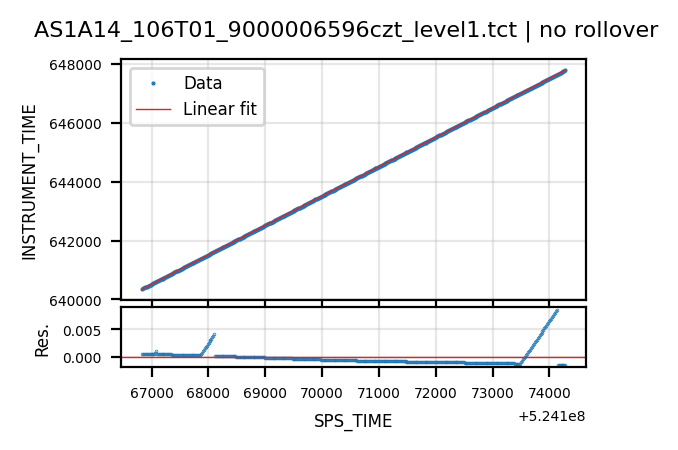

| Tct |  |  |
