| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_106T01_9000006596_58851cztM0_level2.fits | modeM0/AS1A14_106T01_9000006596_58851cztM0_level2_quad_clean.evt |
| Size (bytes) | 697,783,680 | 90,000,000 |
| Size | 665.5 MB | 85.8 MB |
| Events in quadrant A | 12,080,182 | 257,982 |
| Events in quadrant B | 5,997,969 | 699,963 |
| Events in quadrant C | 3,409,632 | 658,103 |
| Events in quadrant D | 3,792,974 | 616,963 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40765 | 0 |
| B | 0 | 22542 | 1 |
| C | 0 | 15279 | 0 |
| D | 0 | 16185 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7061 | 4621 | 65.443988% |
| B | 7060 | 579 | 8.201133% |
| C | 7060 | 36 | 0.509915% |
| D | 7060 | 63 | 0.892351% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

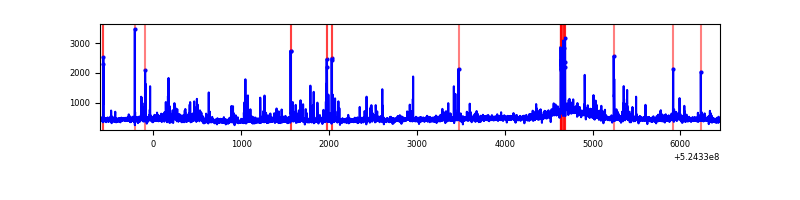

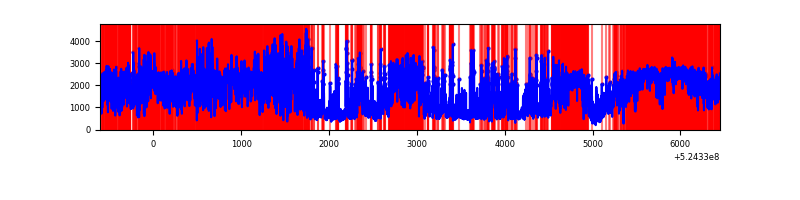

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7060 | 7060 | 2873 | 2873 | 40.69% | 40.69% |  |
| B | 7060 | 7060 | 471 | 471 | 6.67% | 6.67% |  |
| C | 7060 | 7060 | 26 | 26 | 0.37% | 0.37% |  |
| D | 7060 | 7060 | 57 | 57 | 0.81% | 0.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 95 | 6703654 | 63206.16 | 420 | 409 | 106.1 |
| A | 14 | 238 | 2147016 | 20240.76 | 420 | 409 | 106.1 |
| A | 15 | 233 | 746363 | 7033.74 | 420 | 409 | 106.1 |
| B | 5 | 172 | 2179479 | 13182.32 | 769 | 741 | 165.3 |
| B | 4 | 201 | 163228 | 983.12 | 769 | 741 | 165.3 |
| B | 2 | 249 | 161877 | 974.94 | 769 | 741 | 165.3 |
| C | 3 | 233 | 151113 | 710.21 | 767 | 759 | 211.7 |
| C | 12 | 252 | 53036 | 246.94 | 767 | 759 | 211.7 |
| C | 15 | 165 | 33656 | 155.39 | 767 | 759 | 211.7 |
| D | 15 | 238 | 205499 | 934.97 | 768 | 733 | 219.0 |
| D | 6 | 239 | 132644 | 602.31 | 768 | 733 | 219.0 |
| D | 9 | 102 | 93086 | 421.69 | 768 | 733 | 219.0 |

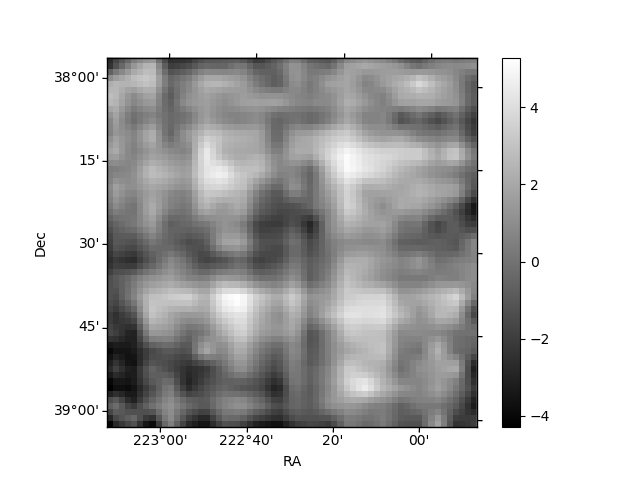

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

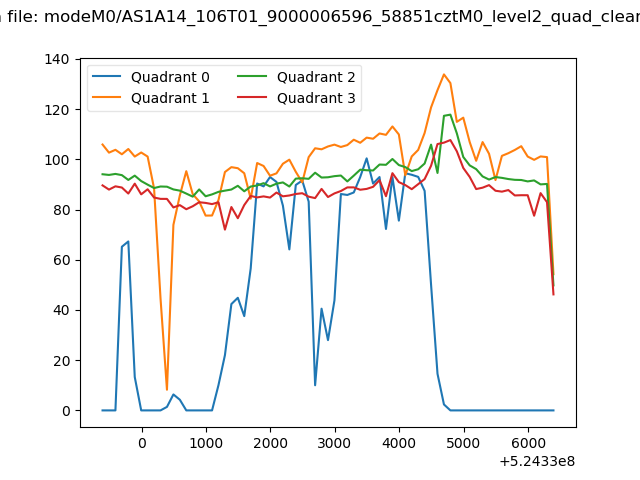

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

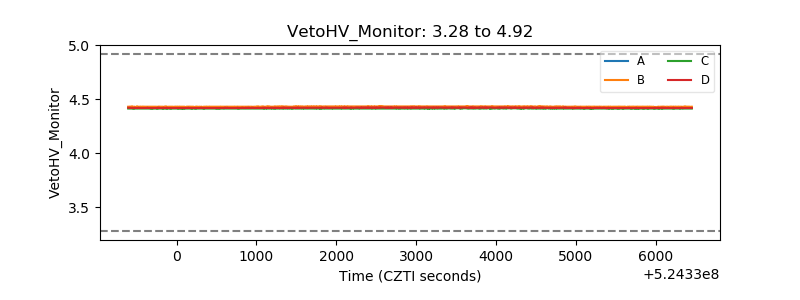

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

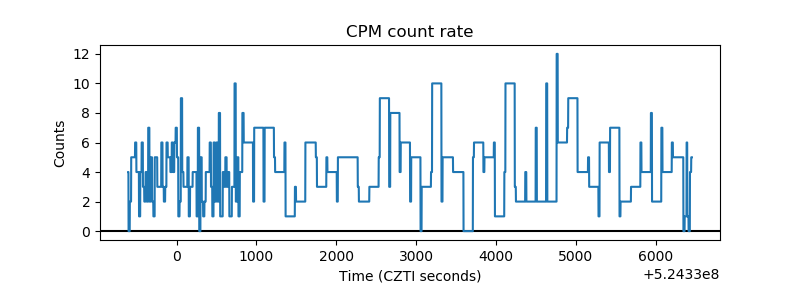

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |

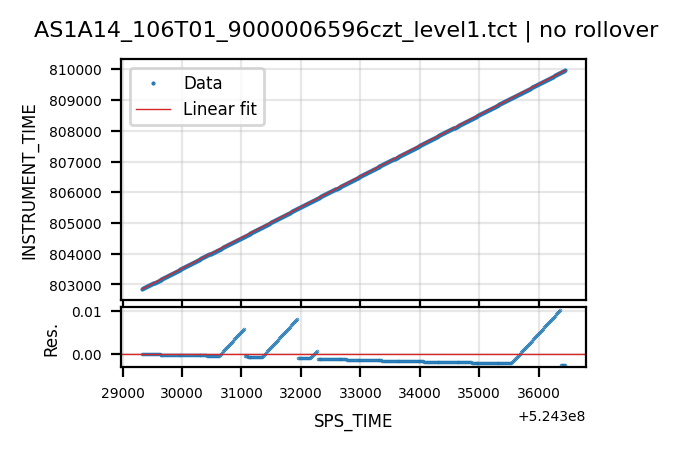

| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
