| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58867cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58867cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,118,018,880 | 87,471,360 |
| Size | 1.0 GB | 83.4 MB |
| Events in quadrant A | 4,875,044 | 725,099 |
| Events in quadrant B | 13,671,835 | 424,831 |
| Events in quadrant C | 6,760,511 | 650,964 |
| Events in quadrant D | 15,489,612 | 316,428 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19681 | 0 |
| B | 0 | 45936 | 2 |
| C | 0 | 25420 | 0 |
| D | 0 | 51227 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7628 | 327 | 4.286838% |
| B | 7627 | 4140 | 54.280844% |
| C | 7628 | 788 | 10.330362% |
| D | 7628 | 4488 | 58.835868% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7628 | 7628 | 270 | 270 | 3.54% | 3.54% |  |
| B | 7626 | 7626 | 3288 | 3288 | 43.12% | 43.12% |  |
| C | 7628 | 7628 | 731 | 731 | 9.58% | 9.58% |  |
| D | 7628 | 7628 | 4515 | 4515 | 59.19% | 59.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 975188 | 4687.79 | 833 | 811 | 207.9 |
| A | 3 | 14 | 339867 | 1631.22 | 833 | 811 | 207.9 |
| A | 15 | 233 | 133197 | 636.92 | 833 | 811 | 207.9 |
| B | 5 | 172 | 8994707 | 60912.04 | 687 | 660 | 147.7 |
| B | 2 | 249 | 963728 | 6522.36 | 687 | 660 | 147.7 |
| B | 4 | 236 | 340830 | 2303.8 | 687 | 660 | 147.7 |
| C | 9 | 38 | 2372106 | 10899.85 | 793 | 783 | 217.6 |
| C | 12 | 252 | 689680 | 3166.53 | 793 | 783 | 217.6 |
| C | 12 | 249 | 201740 | 923.7 | 793 | 783 | 217.6 |
| D | 12 | 110 | 12303424 | 61455.5 | 697 | 664 | 200.2 |
| D | 11 | 129 | 250904 | 1250.01 | 697 | 664 | 200.2 |
| D | 7 | 222 | 77810 | 385.36 | 697 | 664 | 200.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

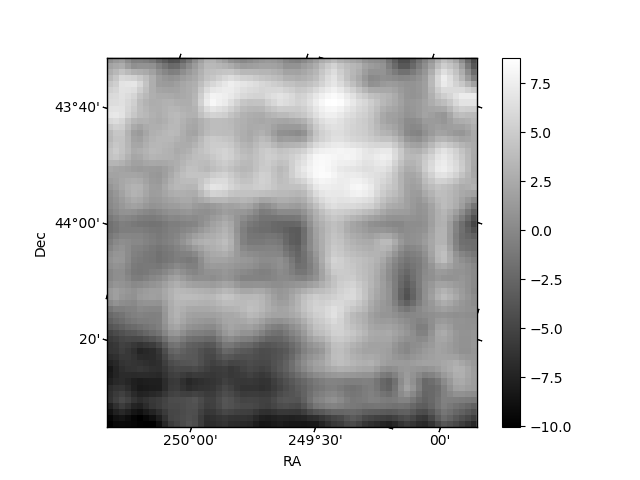

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

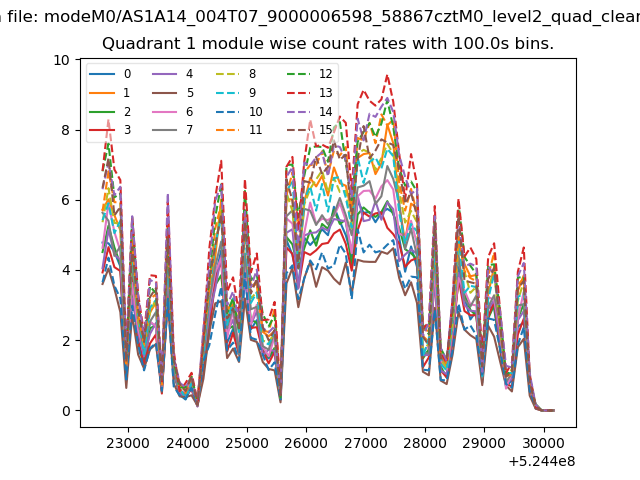

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

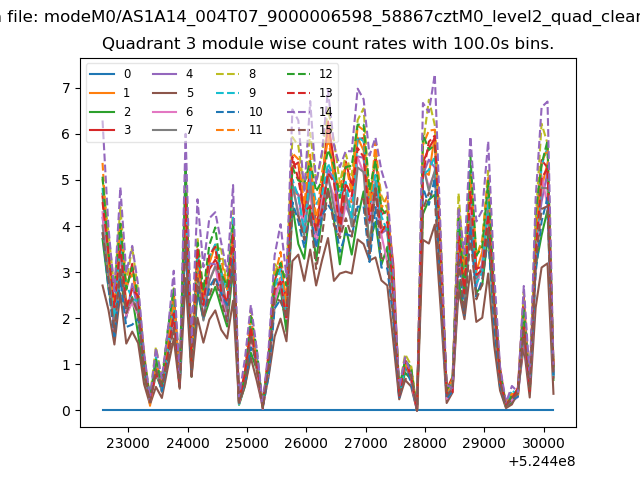

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

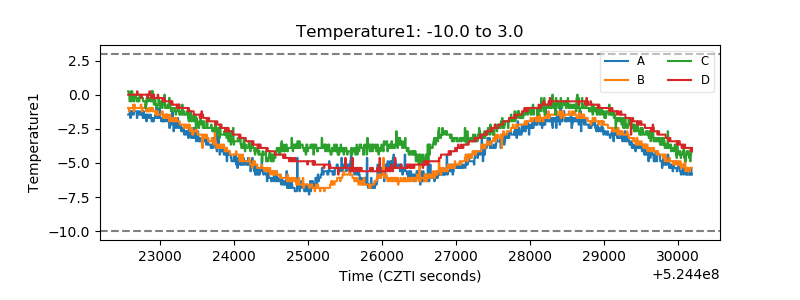

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

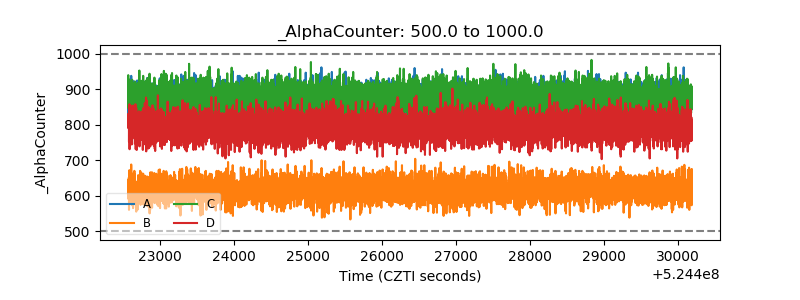

| Alpha Counter |  |
| _CPM_Rate |  |

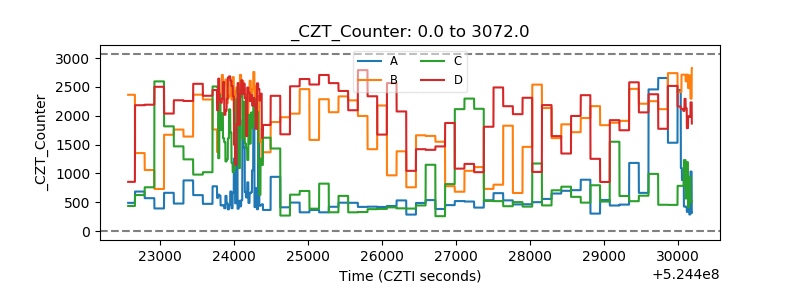

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

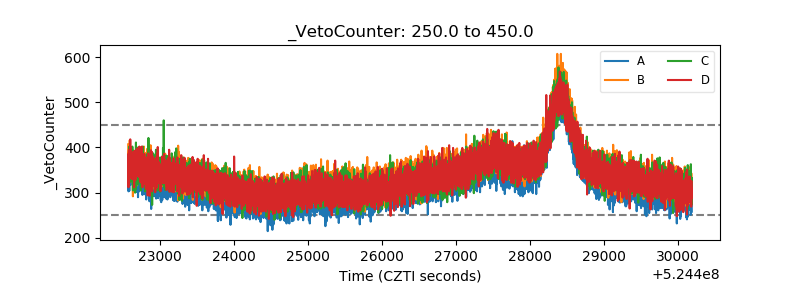

| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

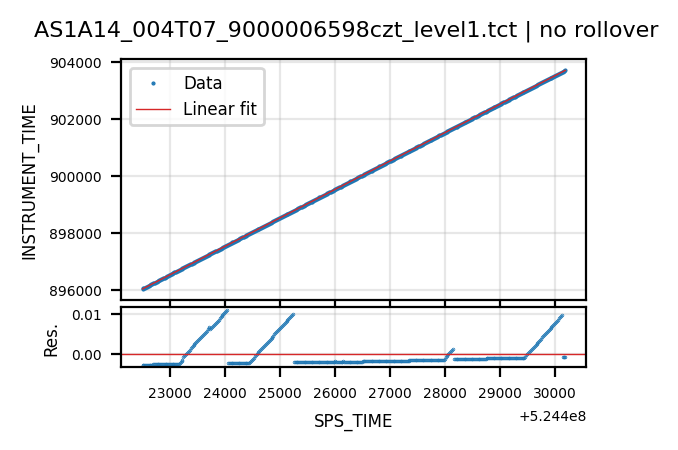

| Tct |  |  |
