| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58880cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58880cztM0_level2_quad_clean.evt |
| Size (bytes) | 633,090,240 | 104,250,240 |
| Size | 603.8 MB | 99.4 MB |
| Events in quadrant A | 4,746,256 | 703,786 |
| Events in quadrant B | 3,749,120 | 753,641 |
| Events in quadrant C | 4,422,072 | 678,483 |
| Events in quadrant D | 9,956,234 | 516,145 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18889 | 0 |
| B | 0 | 16256 | 0 |
| C | 0 | 18065 | 0 |
| D | 0 | 34601 | 6 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7245 | 211 | 2.912353% |
| B | 7246 | 146 | 2.014905% |
| C | 7246 | 96 | 1.324869% |
| D | 7245 | 1740 | 24.016563% |

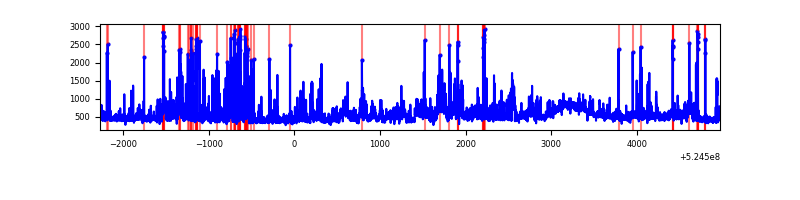

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7245 | 7245 | 169 | 169 | 2.33% | 2.33% |  |
| B | 7246 | 7246 | 54 | 54 | 0.75% | 0.75% |  |
| C | 7246 | 7246 | 90 | 90 | 1.24% | 1.24% |  |
| D | 7244 | 7244 | 1694 | 1694 | 23.38% | 23.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 569407 | 2814.26 | 818 | 796 | 202.0 |
| A | 13 | 248 | 471404 | 2329.21 | 818 | 796 | 202.0 |
| A | 3 | 14 | 282473 | 1394.12 | 818 | 796 | 202.0 |
| B | 0 | 186 | 112024 | 639.0 | 808 | 779 | 174.1 |
| B | 4 | 171 | 92471 | 526.69 | 808 | 779 | 174.1 |
| B | 10 | 247 | 81514 | 463.75 | 808 | 779 | 174.1 |
| C | 9 | 38 | 341118 | 1535.95 | 797 | 788 | 221.6 |
| C | 7 | 87 | 238613 | 1073.33 | 797 | 788 | 221.6 |
| C | 12 | 252 | 227103 | 1021.39 | 797 | 788 | 221.6 |
| D | 12 | 110 | 3240327 | 15260.77 | 749 | 717 | 212.3 |
| D | 11 | 129 | 2986910 | 14067.01 | 749 | 717 | 212.3 |
| D | 12 | 248 | 186019 | 872.9 | 749 | 717 | 212.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

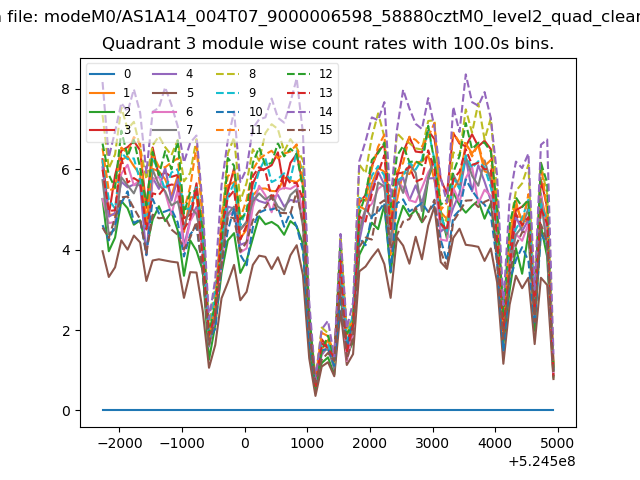

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

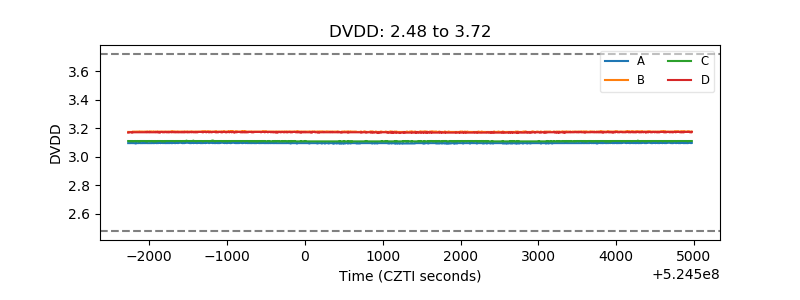

| D_VDD |  |

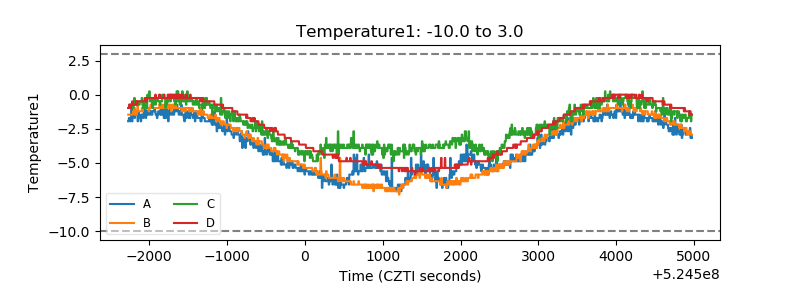

| Temperature 1 |  |
| Veto HV Monitor |  |

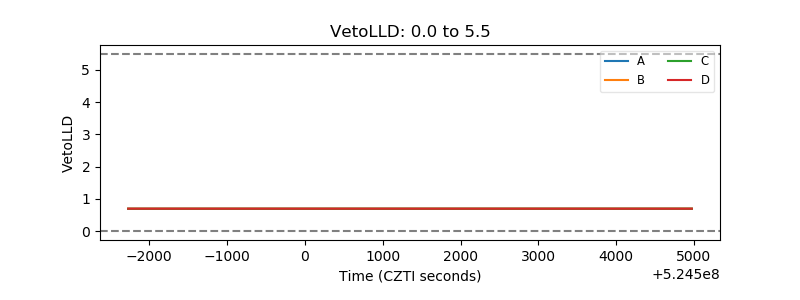

| Veto LLD |  |
| Alpha Counter |  |

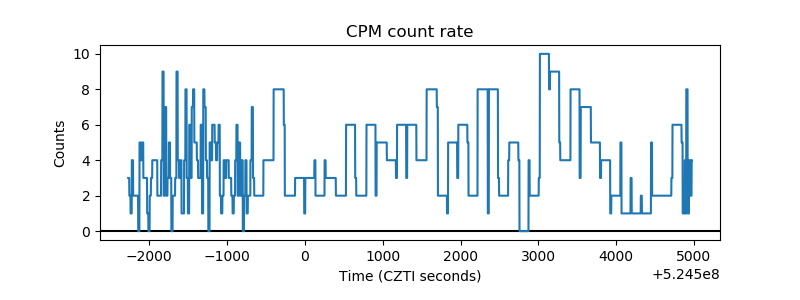

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

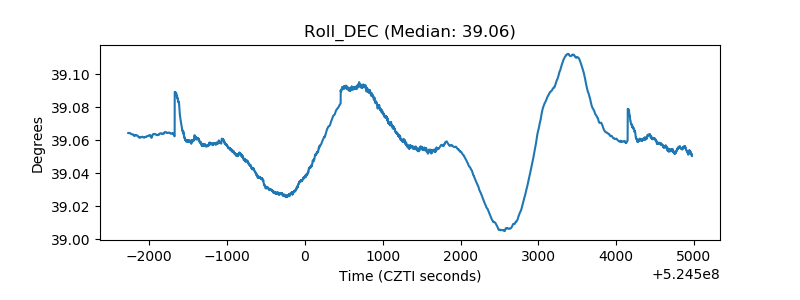

| _Roll_DEC |  |

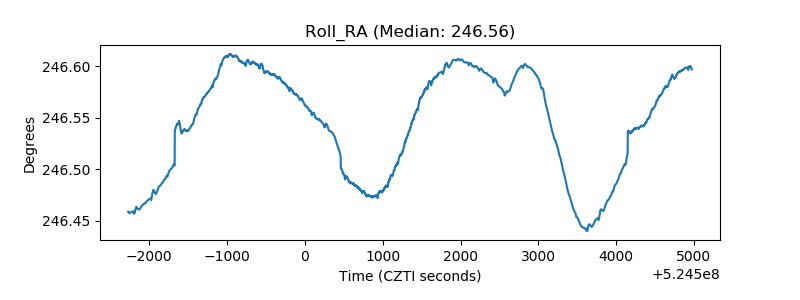

| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
