| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58881cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58881cztM0_level2_quad_clean.evt |
| Size (bytes) | 715,259,520 | 111,458,880 |
| Size | 682.1 MB | 106.3 MB |
| Events in quadrant A | 5,002,571 | 755,848 |
| Events in quadrant B | 4,175,284 | 805,645 |
| Events in quadrant C | 3,861,463 | 726,991 |
| Events in quadrant D | 12,835,107 | 544,839 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20038 | 0 |
| B | 0 | 17875 | 0 |
| C | 0 | 17081 | 0 |
| D | 0 | 43571 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7784 | 185 | 2.376670% |
| B | 7784 | 138 | 1.772867% |
| C | 7785 | 41 | 0.526654% |
| D | 7785 | 1918 | 24.637123% |

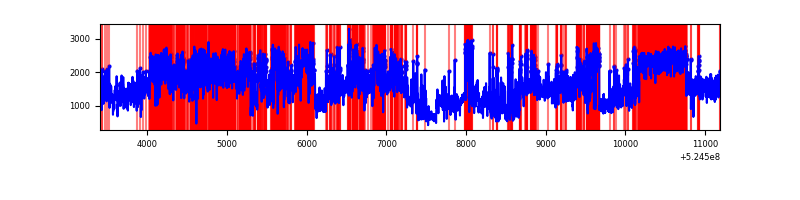

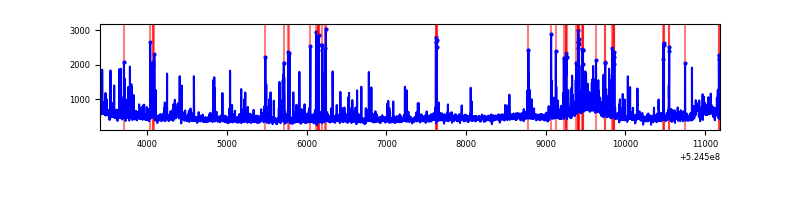

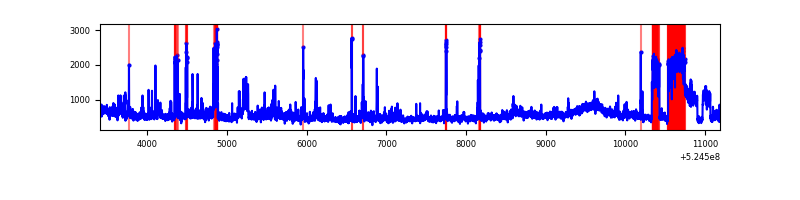

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7784 | 7784 | 212 | 212 | 2.72% | 2.72% |  |
| B | 7784 | 7784 | 58 | 58 | 0.75% | 0.75% |  |
| C | 7785 | 7785 | 33 | 33 | 0.42% | 0.42% |  |
| D | 7785 | 7785 | 2022 | 2022 | 25.97% | 25.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 764352 | 3539.7 | 872 | 846 | 215.7 |
| A | 14 | 238 | 387380 | 1792.02 | 872 | 846 | 215.7 |
| A | 0 | 24 | 174182 | 803.61 | 872 | 846 | 215.7 |
| B | 4 | 236 | 147375 | 801.88 | 857 | 827 | 182.8 |
| B | 5 | 185 | 142709 | 776.34 | 857 | 827 | 182.8 |
| B | 4 | 171 | 131489 | 714.95 | 857 | 827 | 182.8 |
| C | 6 | 13 | 122728 | 523.12 | 849 | 840 | 233.0 |
| C | 14 | 96 | 91633 | 389.67 | 849 | 840 | 233.0 |
| C | 7 | 87 | 76034 | 322.72 | 849 | 840 | 233.0 |
| D | 12 | 110 | 7814478 | 34878.02 | 786 | 749 | 224.0 |
| D | 11 | 129 | 962037 | 4290.89 | 786 | 749 | 224.0 |
| D | 2 | 249 | 221516 | 985.43 | 786 | 749 | 224.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

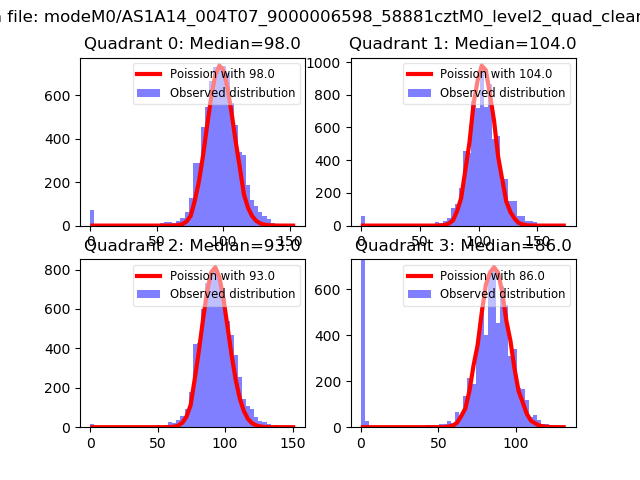

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

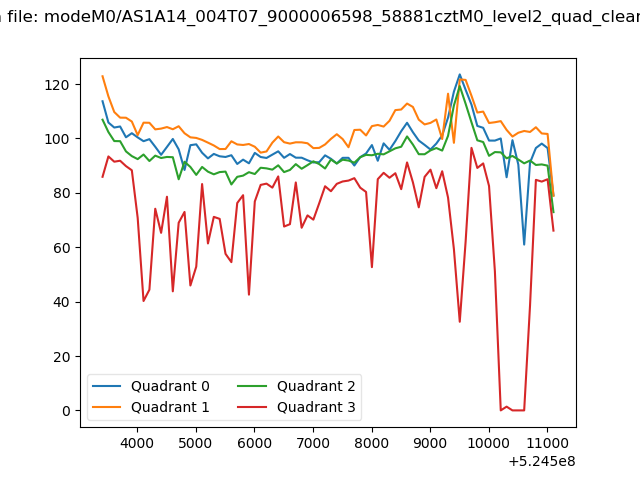

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

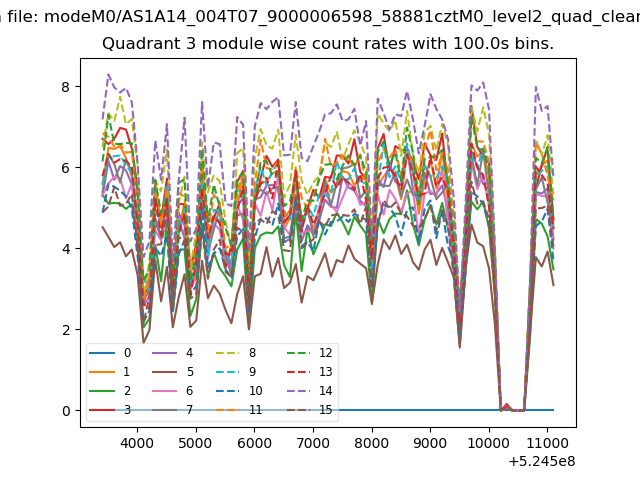

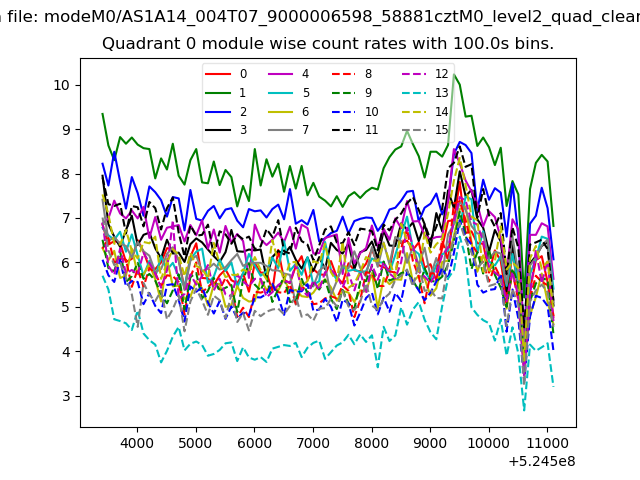

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

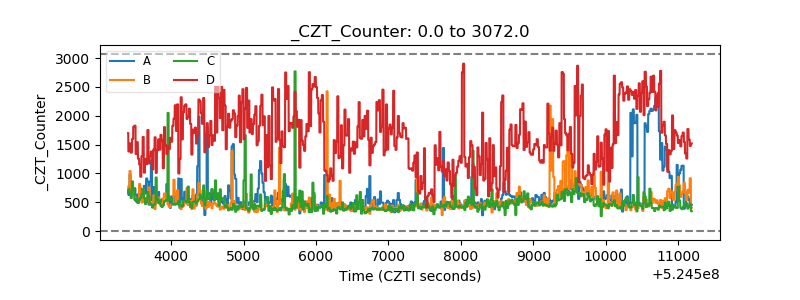

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
