| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58884cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58884cztM0_level2_quad_clean.evt |
| Size (bytes) | 379,540,800 | 58,803,840 |
| Size | 362.0 MB | 56.1 MB |
| Events in quadrant A | 3,031,868 | 394,201 |
| Events in quadrant B | 2,222,853 | 421,346 |
| Events in quadrant C | 2,081,847 | 381,140 |
| Events in quadrant D | 6,383,330 | 285,600 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11948 | 0 |
| B | 0 | 9735 | 0 |
| C | 0 | 9320 | 0 |
| D | 0 | 21913 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4237 | 133 | 3.139013% |
| B | 4237 | 67 | 1.581308% |
| C | 4237 | 42 | 0.991267% |
| D | 4238 | 962 | 22.699387% |

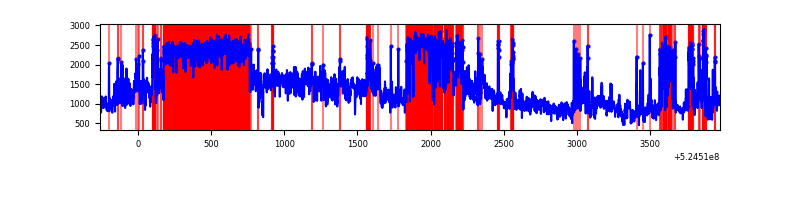

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4237 | 4237 | 180 | 180 | 4.25% | 4.25% |  |
| B | 4237 | 4237 | 56 | 56 | 1.32% | 1.32% |  |
| C | 4237 | 4237 | 48 | 48 | 1.13% | 1.13% |  |
| D | 4238 | 4238 | 1009 | 1009 | 23.81% | 23.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 746162 | 6813.64 | 433 | 421 | 109.4 |
| A | 14 | 238 | 511311 | 4667.87 | 433 | 421 | 109.4 |
| A | 3 | 14 | 46939 | 425.02 | 433 | 421 | 109.4 |
| B | 5 | 185 | 169299 | 1813.59 | 430 | 415 | 93.1 |
| B | 7 | 0 | 112838 | 1207.28 | 430 | 415 | 93.1 |
| B | 4 | 236 | 76033 | 812.04 | 430 | 415 | 93.1 |
| C | 15 | 131 | 109094 | 917.98 | 426 | 422 | 118.4 |
| C | 12 | 249 | 86223 | 724.78 | 426 | 422 | 118.4 |
| C | 6 | 13 | 75870 | 637.33 | 426 | 422 | 118.4 |
| D | 12 | 110 | 3455606 | 30414.47 | 393 | 374 | 113.6 |
| D | 11 | 129 | 1050483 | 9243.52 | 393 | 374 | 113.6 |
| D | 2 | 249 | 120992 | 1061.73 | 393 | 374 | 113.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

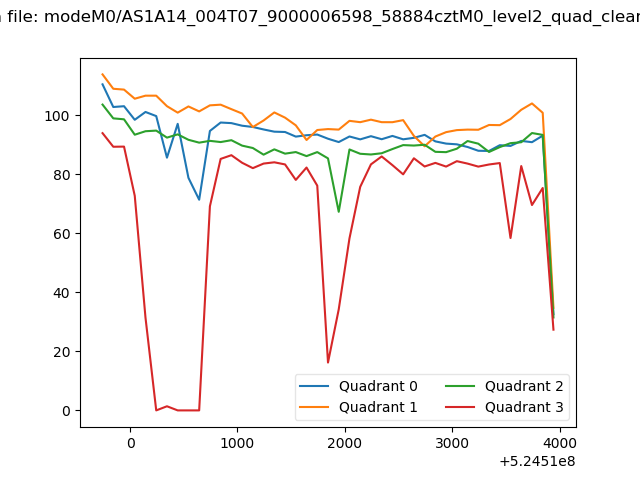

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

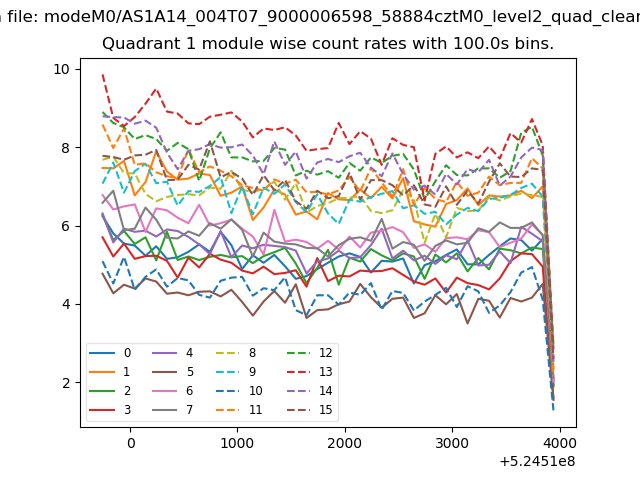

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

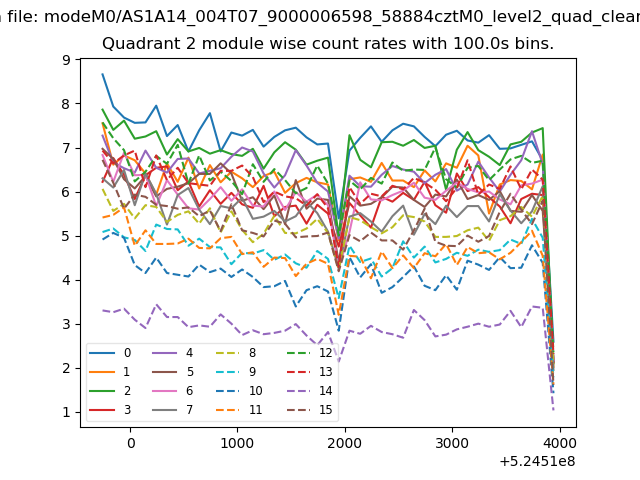

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

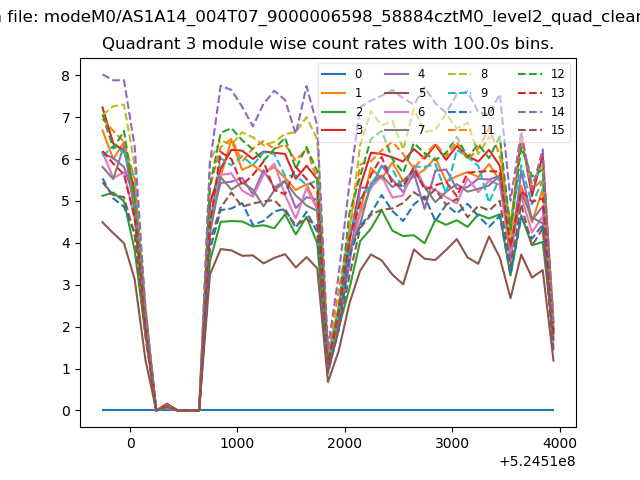

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

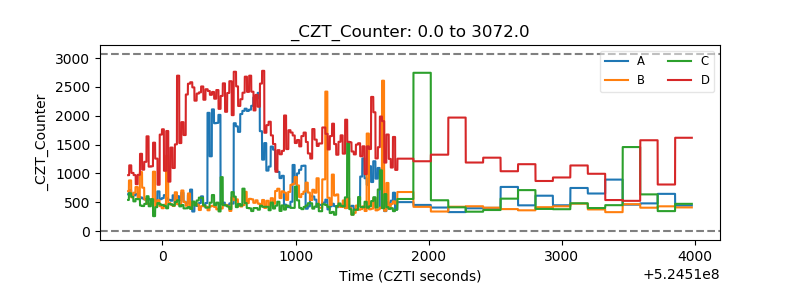

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
