| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58895cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58895cztM0_level2_quad_clean.evt |
| Size (bytes) | 627,909,120 | 100,509,120 |
| Size | 598.8 MB | 95.9 MB |
| Events in quadrant A | 3,872,141 | 688,516 |
| Events in quadrant B | 4,119,883 | 719,107 |
| Events in quadrant C | 3,821,755 | 649,466 |
| Events in quadrant D | 10,885,948 | 497,429 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16247 | 0 |
| B | 0 | 17131 | 1 |
| C | 0 | 16457 | 0 |
| D | 0 | 37296 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7017 | 81 | 1.154339% |
| B | 7016 | 189 | 2.693843% |
| C | 7017 | 135 | 1.923899% |
| D | 7017 | 1686 | 24.027362% |

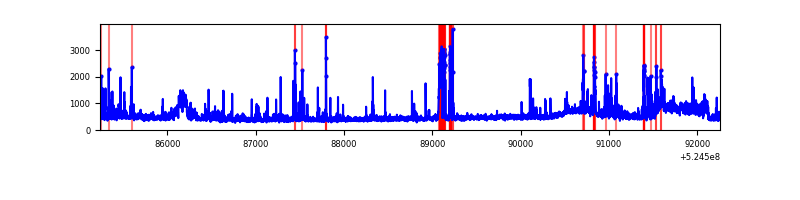

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7017 | 7017 | 54 | 54 | 0.77% | 0.77% |  |
| B | 7016 | 7016 | 94 | 94 | 1.34% | 1.34% |  |
| C | 7017 | 7017 | 83 | 83 | 1.18% | 1.18% |  |
| D | 7017 | 7017 | 1924 | 1924 | 27.42% | 27.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 438584 | 2249.82 | 786 | 764 | 194.6 |
| A | 0 | 24 | 179202 | 916.94 | 786 | 764 | 194.6 |
| A | 3 | 14 | 100734 | 513.72 | 786 | 764 | 194.6 |
| B | 15 | 32 | 294748 | 1761.48 | 769 | 739 | 166.9 |
| B | 4 | 201 | 227971 | 1361.4 | 769 | 739 | 166.9 |
| B | 0 | 171 | 109069 | 649.03 | 769 | 739 | 166.9 |
| C | 12 | 252 | 517830 | 2482.9 | 758 | 749 | 208.3 |
| C | 12 | 249 | 132908 | 634.6 | 758 | 749 | 208.3 |
| C | 6 | 223 | 84859 | 403.88 | 758 | 749 | 208.3 |
| D | 12 | 110 | 6394940 | 31611.33 | 713 | 683 | 202.3 |
| D | 2 | 249 | 541356 | 2672.93 | 713 | 683 | 202.3 |
| D | 7 | 222 | 510821 | 2521.97 | 713 | 683 | 202.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

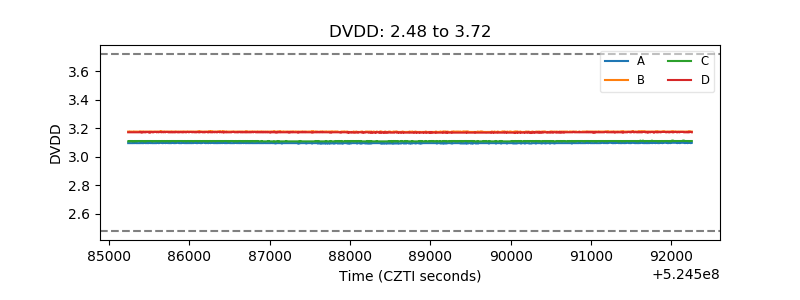

| D_VDD |  |

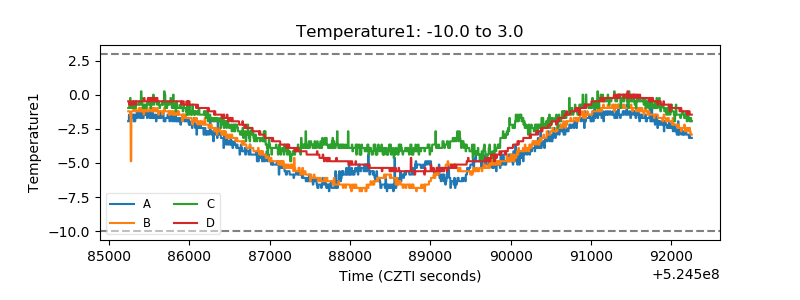

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

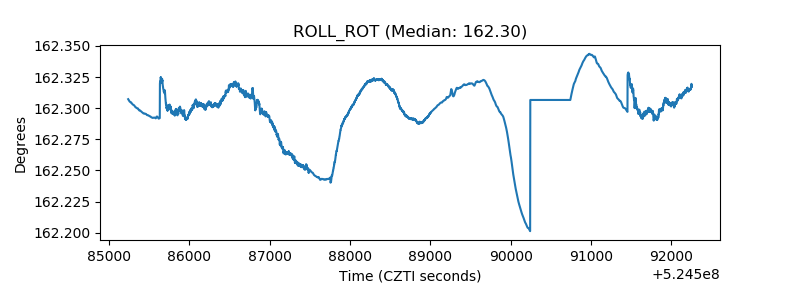

| _ROLL_ROT |  |

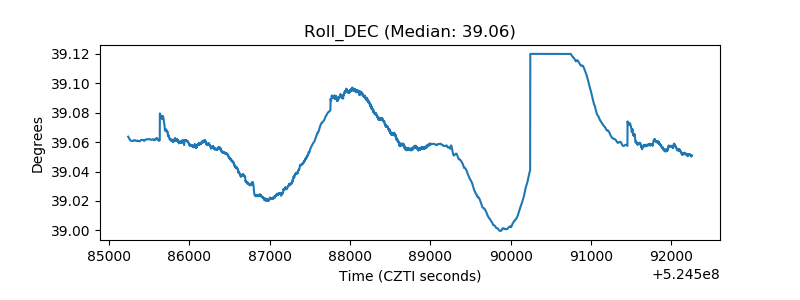

| _Roll_DEC |  |
| _Roll_RA |  |

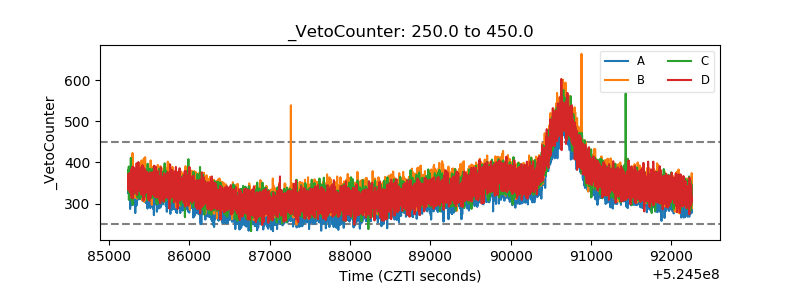

| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

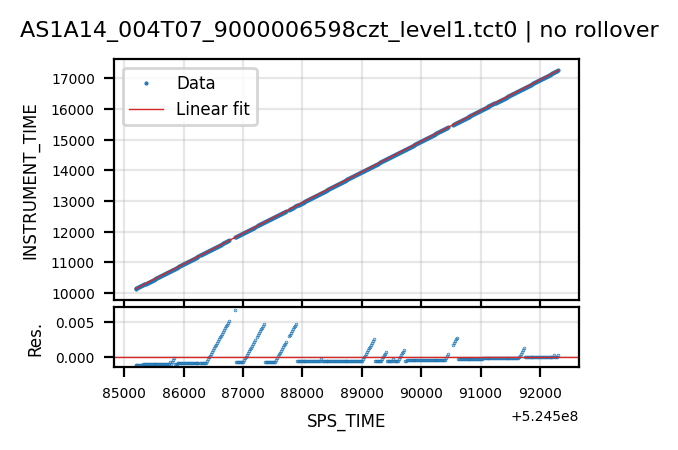

| Tct |  |  |
