| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58896cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58896cztM0_level2_quad_clean.evt |
| Size (bytes) | 917,812,800 | 101,044,800 |
| Size | 875.3 MB | 96.4 MB |
| Events in quadrant A | 12,344,533 | 442,265 |
| Events in quadrant B | 4,483,815 | 815,002 |
| Events in quadrant C | 5,666,113 | 687,677 |
| Events in quadrant D | 10,870,417 | 566,020 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42111 | 0 |
| B | 0 | 18828 | 0 |
| C | 0 | 22398 | 0 |
| D | 0 | 37871 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7886 | 3586 | 45.472990% |
| B | 7886 | 162 | 2.054273% |
| C | 7886 | 682 | 8.648237% |
| D | 7887 | 1561 | 19.792063% |

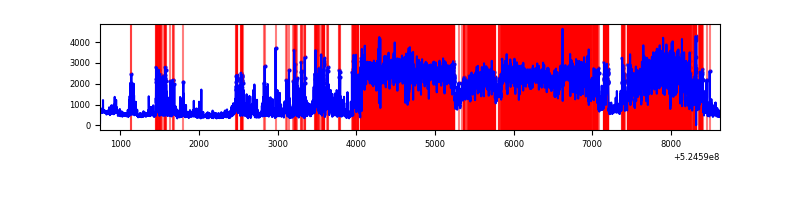

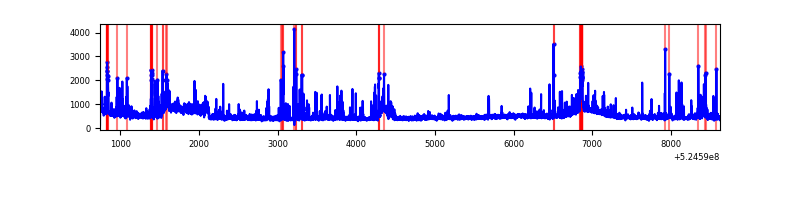

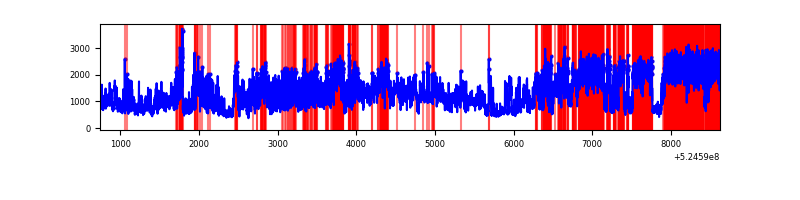

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7886 | 7886 | 3189 | 3189 | 40.44% | 40.44% |  |
| B | 7886 | 7886 | 63 | 63 | 0.80% | 0.80% |  |
| C | 7886 | 7886 | 532 | 532 | 6.75% | 6.75% |  |
| D | 7887 | 7887 | 1340 | 1340 | 16.99% | 16.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 24 | 8363121 | 47622.8 | 703 | 684 | 175.6 |
| A | 14 | 238 | 923344 | 5254.41 | 703 | 684 | 175.6 |
| A | 3 | 14 | 159799 | 906.14 | 703 | 684 | 175.6 |
| B | 4 | 171 | 283852 | 1507.74 | 873 | 839 | 187.7 |
| B | 15 | 32 | 212734 | 1128.86 | 873 | 839 | 187.7 |
| B | 4 | 201 | 83049 | 437.97 | 873 | 839 | 187.7 |
| C | 4 | 5 | 991898 | 4320.37 | 837 | 828 | 229.4 |
| C | 12 | 252 | 959311 | 4178.31 | 837 | 828 | 229.4 |
| C | 12 | 249 | 162537 | 704.94 | 837 | 828 | 229.4 |
| D | 12 | 110 | 7129837 | 31705.84 | 799 | 762 | 224.9 |
| D | 11 | 129 | 177698 | 786.9 | 799 | 762 | 224.9 |
| D | 2 | 249 | 107818 | 476.12 | 799 | 762 | 224.9 |

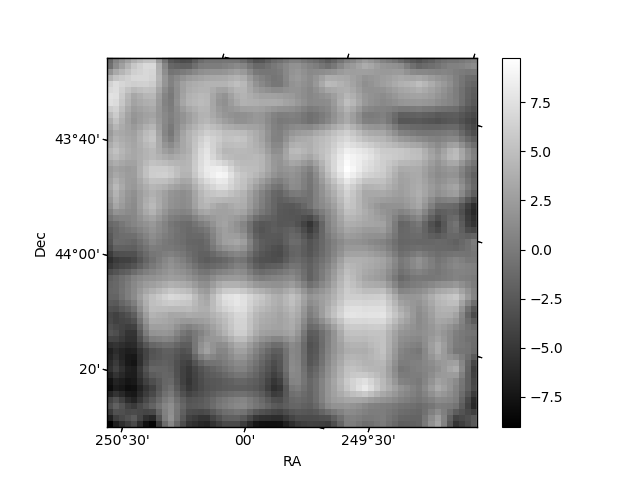

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

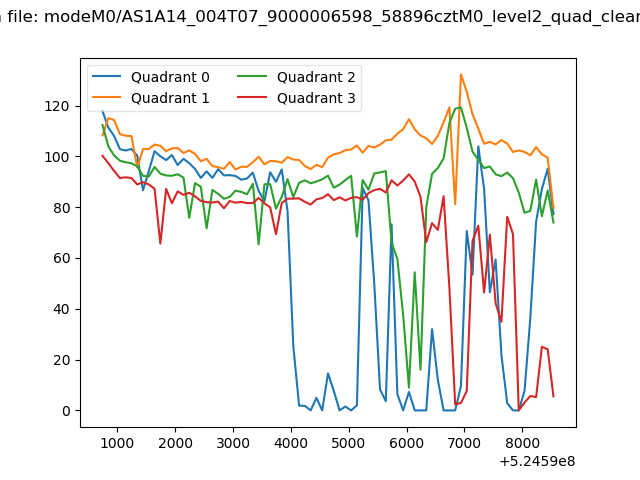

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

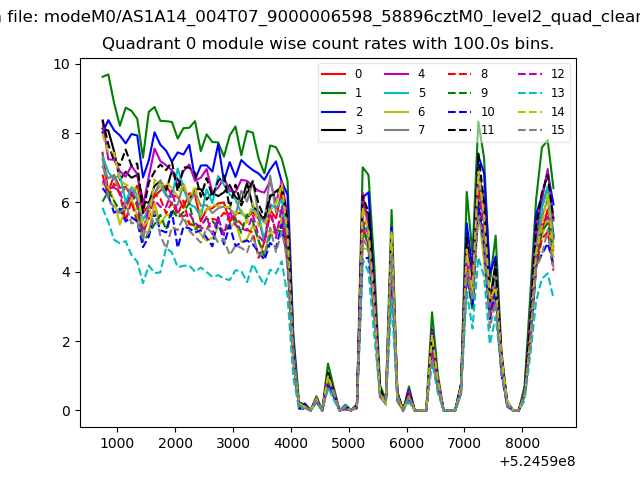

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

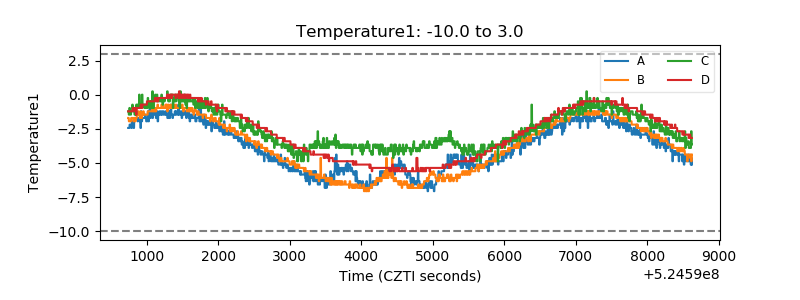

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

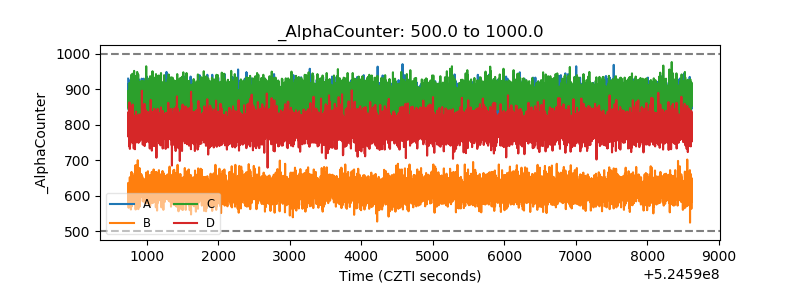

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
