| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58910cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58910cztM0_level2_quad_clean.evt |
| Size (bytes) | 761,630,400 | 91,114,560 |
| Size | 726.3 MB | 86.9 MB |
| Events in quadrant A | 7,324,098 | 605,848 |
| Events in quadrant B | 3,920,152 | 713,694 |
| Events in quadrant C | 4,144,363 | 640,606 |
| Events in quadrant D | 12,261,744 | 310,692 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26509 | 0 |
| B | 0 | 16554 | 0 |
| C | 0 | 17415 | 0 |
| D | 0 | 41285 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7000 | 996 | 14.228571% |
| B | 7000 | 236 | 3.371429% |
| C | 7000 | 215 | 3.071429% |
| D | 7000 | 3733 | 53.328571% |

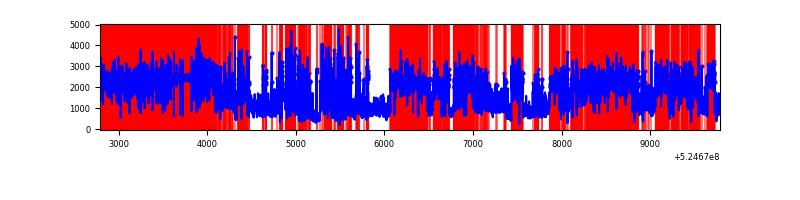

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7000 | 7000 | 911 | 911 | 13.01% | 13.01% |  |
| B | 7000 | 7000 | 135 | 135 | 1.93% | 1.93% |  |
| C | 7000 | 7000 | 170 | 170 | 2.43% | 2.43% |  |
| D | 7000 | 7000 | 3073 | 3073 | 43.90% | 43.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 4036551 | 21510.74 | 750 | 730 | 187.6 |
| A | 3 | 14 | 85083 | 449.6 | 750 | 730 | 187.6 |
| A | 13 | 248 | 78920 | 416.75 | 750 | 730 | 187.6 |
| B | 4 | 171 | 234782 | 1424.23 | 763 | 734 | 164.3 |
| B | 5 | 185 | 159384 | 965.41 | 763 | 734 | 164.3 |
| B | 4 | 236 | 85994 | 518.82 | 763 | 734 | 164.3 |
| C | 12 | 252 | 836563 | 4036.08 | 750 | 743 | 207.1 |
| C | 6 | 13 | 200156 | 962.94 | 750 | 743 | 207.1 |
| C | 15 | 219 | 42973 | 203.92 | 750 | 743 | 207.1 |
| D | 12 | 110 | 9579938 | 58052.6 | 578 | 551 | 165.0 |
| D | 7 | 222 | 117188 | 706.84 | 578 | 551 | 165.0 |
| D | 2 | 120 | 45359 | 271.54 | 578 | 551 | 165.0 |

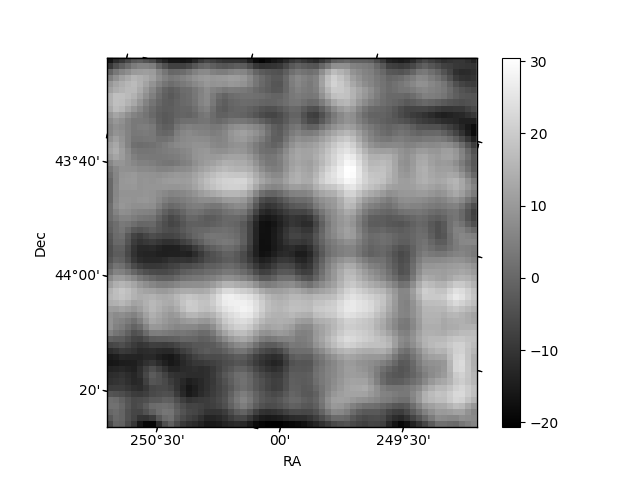

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

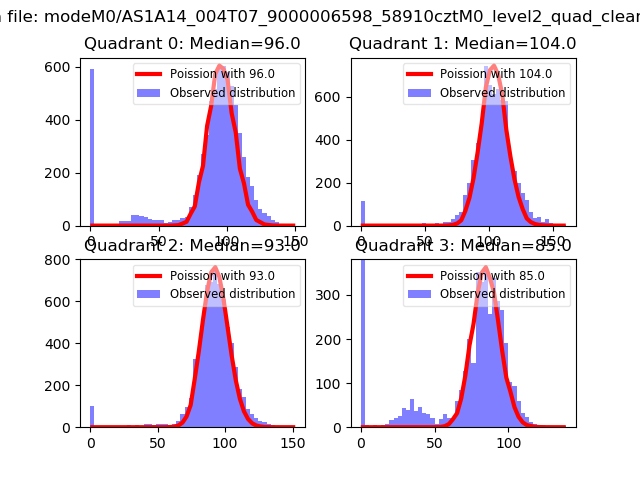

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

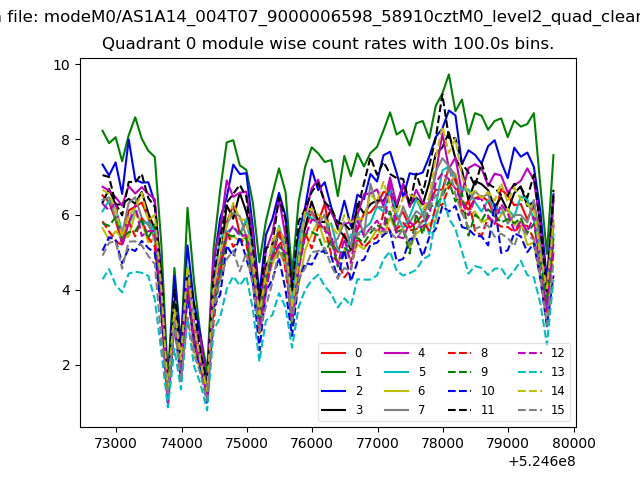

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

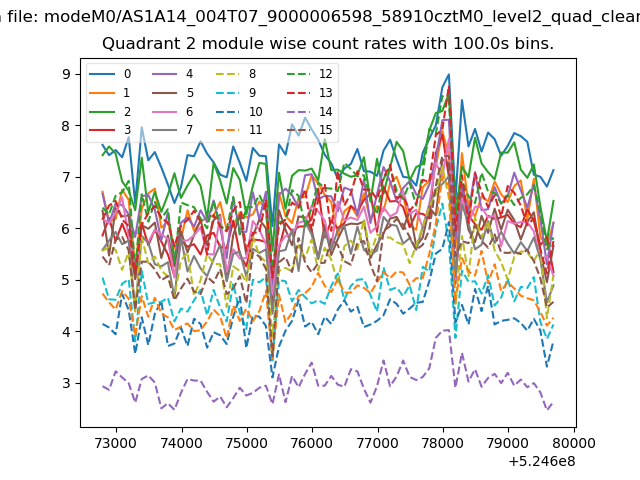

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

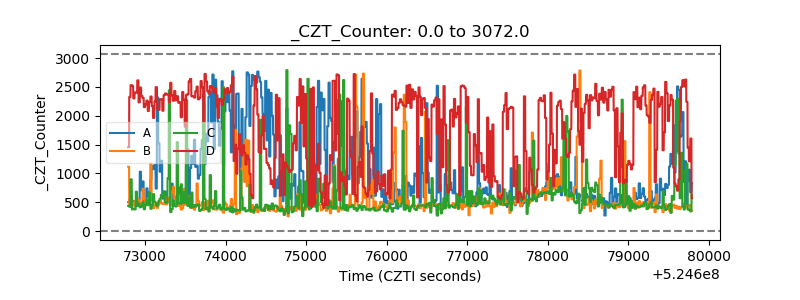

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

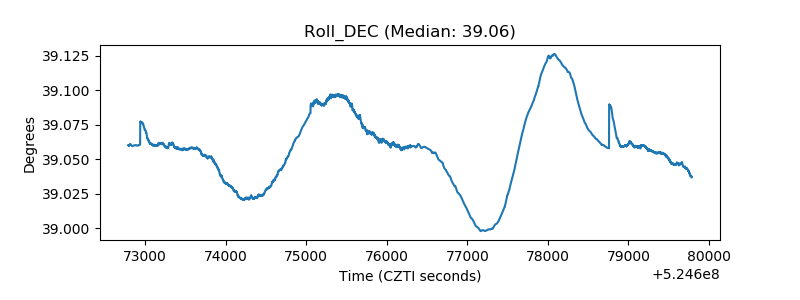

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

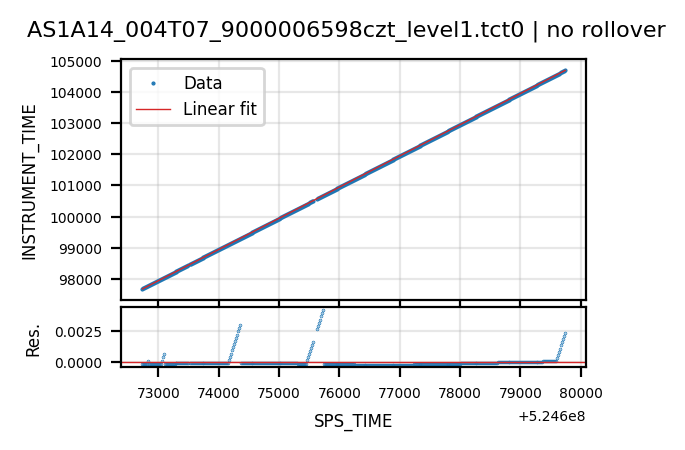

| Tct |  |  |
