| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58924cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58924cztM0_level2_quad_clean.evt |
| Size (bytes) | 576,069,120 | 107,798,400 |
| Size | 549.4 MB | 102.8 MB |
| Events in quadrant A | 6,674,820 | 659,423 |
| Events in quadrant B | 5,329,082 | 754,932 |
| Events in quadrant C | 4,329,870 | 677,178 |
| Events in quadrant D | 4,411,668 | 653,509 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24963 | 0 |
| B | 0 | 20861 | 0 |
| C | 0 | 18131 | 0 |
| D | 0 | 18180 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7457 | 941 | 12.619016% |
| B | 7457 | 379 | 5.082473% |
| C | 7458 | 262 | 3.513006% |
| D | 7458 | 137 | 1.836954% |

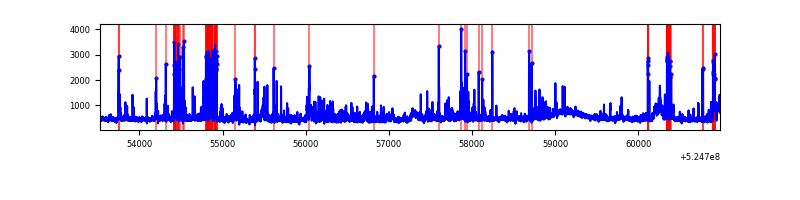

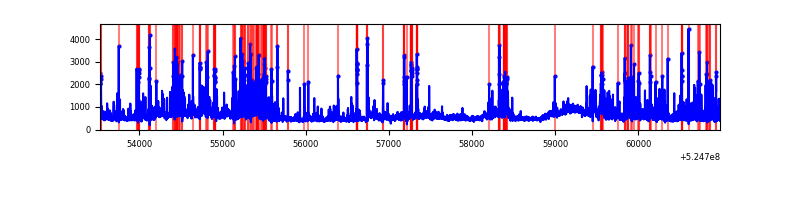

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7456 | 7456 | 721 | 721 | 9.67% | 9.67% |  |
| B | 7457 | 7457 | 214 | 214 | 2.87% | 2.87% |  |
| C | 7458 | 7458 | 220 | 220 | 2.95% | 2.95% |  |
| D | 7458 | 7458 | 118 | 118 | 1.58% | 1.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 2533494 | 12610.05 | 802 | 780 | 200.8 |
| A | 13 | 248 | 751774 | 3739.1 | 802 | 780 | 200.8 |
| A | 15 | 233 | 91819 | 453.27 | 802 | 780 | 200.8 |
| B | 4 | 171 | 806201 | 4667.08 | 812 | 782 | 172.6 |
| B | 7 | 0 | 598031 | 3460.81 | 812 | 782 | 172.6 |
| B | 4 | 236 | 167552 | 966.36 | 812 | 782 | 172.6 |
| C | 12 | 252 | 821482 | 3731.94 | 798 | 788 | 219.9 |
| C | 15 | 208 | 110671 | 499.67 | 798 | 788 | 219.9 |
| C | 3 | 233 | 97727 | 440.81 | 798 | 788 | 219.9 |
| D | 12 | 110 | 400758 | 1734.85 | 813 | 778 | 230.6 |
| D | 9 | 49 | 153403 | 661.99 | 813 | 778 | 230.6 |
| D | 2 | 31 | 100885 | 434.2 | 813 | 778 | 230.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

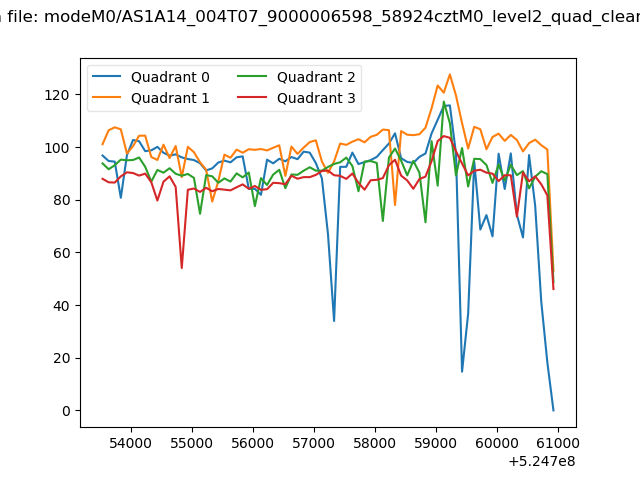

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

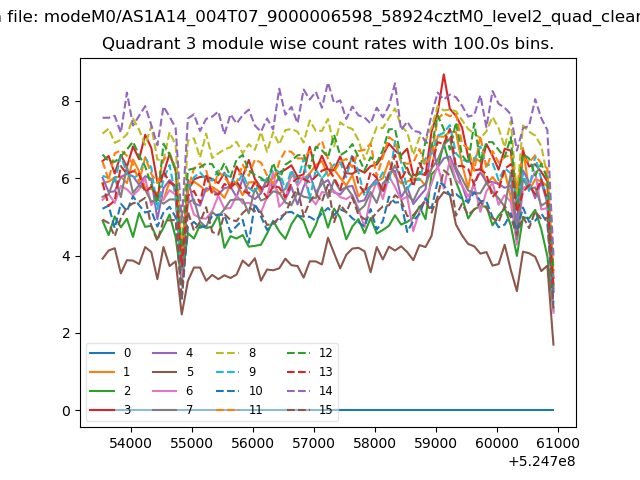

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
