| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58925cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58925cztM0_level2_quad_clean.evt |
| Size (bytes) | 802,932,480 | 90,944,640 |
| Size | 765.7 MB | 86.7 MB |
| Events in quadrant A | 9,936,223 | 453,654 |
| Events in quadrant B | 4,882,575 | 719,104 |
| Events in quadrant C | 4,453,058 | 653,265 |
| Events in quadrant D | 9,893,761 | 427,445 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34466 | 0 |
| B | 0 | 19399 | 0 |
| C | 0 | 18446 | 0 |
| D | 0 | 34430 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7176 | 2724 | 37.959866% |
| B | 7177 | 395 | 5.503692% |
| C | 7177 | 236 | 3.288282% |
| D | 7177 | 2497 | 34.791696% |

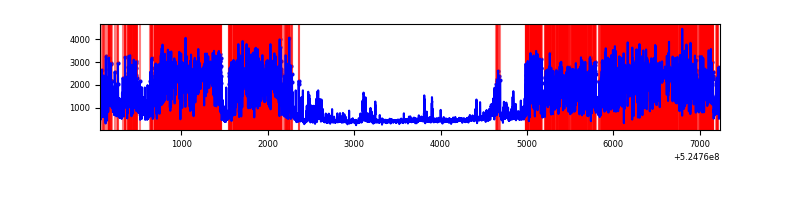

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7176 | 7176 | 2141 | 2141 | 29.84% | 29.84% |  |
| B | 7177 | 7177 | 189 | 189 | 2.63% | 2.63% |  |
| C | 7177 | 7177 | 205 | 205 | 2.86% | 2.86% |  |
| D | 7177 | 7177 | 2185 | 2185 | 30.44% | 30.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 6696421 | 40535.52 | 671 | 655 | 165.2 |
| A | 13 | 248 | 335761 | 2028.7 | 671 | 655 | 165.2 |
| A | 0 | 24 | 79256 | 475.84 | 671 | 655 | 165.2 |
| B | 4 | 171 | 976368 | 5837.21 | 776 | 745 | 167.1 |
| B | 4 | 236 | 176481 | 1051.44 | 776 | 745 | 167.1 |
| B | 10 | 247 | 159455 | 949.57 | 776 | 745 | 167.1 |
| C | 12 | 252 | 969377 | 4609.52 | 767 | 757 | 210.1 |
| C | 15 | 208 | 249001 | 1181.36 | 767 | 757 | 210.1 |
| C | 6 | 13 | 77076 | 363.19 | 767 | 757 | 210.1 |
| D | 12 | 110 | 6369308 | 33035.38 | 671 | 641 | 192.8 |
| D | 7 | 222 | 243503 | 1259.77 | 671 | 641 | 192.8 |
| D | 9 | 49 | 120349 | 620.95 | 671 | 641 | 192.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

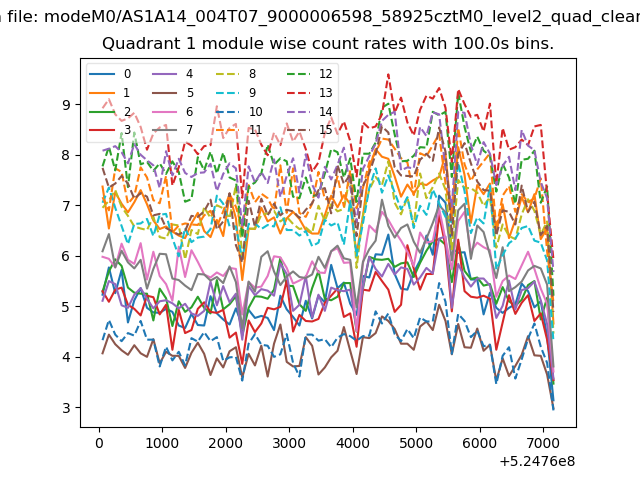

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

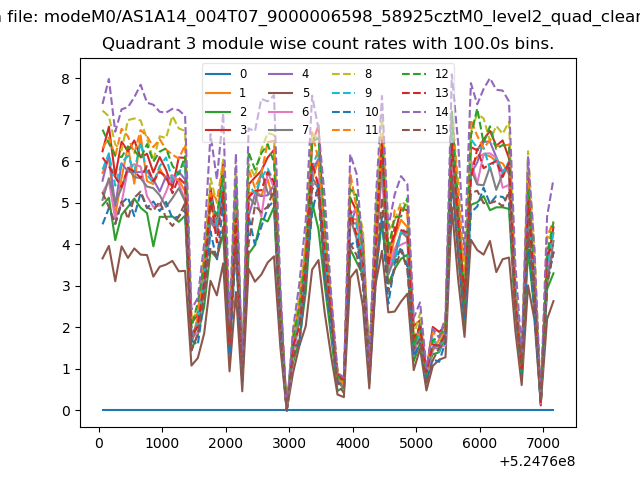

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
