| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58938cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58938cztM0_level2_quad_clean.evt |
| Size (bytes) | 875,808,000 | 86,834,880 |
| Size | 835.2 MB | 82.8 MB |
| Events in quadrant A | 6,593,550 | 665,021 |
| Events in quadrant B | 4,451,404 | 716,302 |
| Events in quadrant C | 5,511,962 | 628,563 |
| Events in quadrant D | 15,312,285 | 124,794 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25273 | 1017 |
| B | 0 | 20101 | 1992 |
| C | 0 | 22473 | 1201 |
| D | 0 | 53865 | 3587 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 8 |
| B | 0 | 149 | 6 |
| C | 0 | 150 | 10 |
| D | 0 | 150 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7113 | 525 | 7.380852% |
| B | 7095 | 406 | 5.722340% |
| C | 7108 | 527 | 7.414181% |
| D | 7085 | 5857 | 82.667608% |

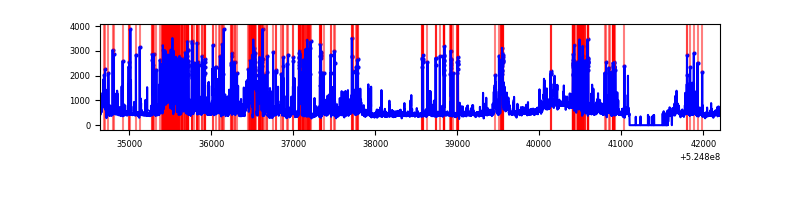

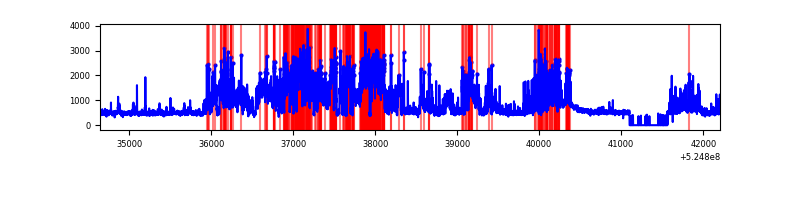

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7559 | 7137 | 490 | 490 | 6.48% | 6.87% |  |
| B | 7559 | 7108 | 212 | 212 | 2.80% | 2.98% |  |
| C | 7560 | 7129 | 457 | 457 | 6.04% | 6.41% |  |
| D | 7559 | 7084 | 5486 | 5486 | 72.58% | 77.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 2822099 | 14549.19 | 793 | 774 | 193.9 |
| A | 14 | 238 | 306905 | 1578.68 | 793 | 774 | 193.9 |
| A | 0 | 24 | 86211 | 440.59 | 793 | 774 | 193.9 |
| B | 4 | 171 | 562349 | 3337.27 | 780 | 752 | 168.3 |
| B | 4 | 236 | 343874 | 2038.99 | 780 | 752 | 168.3 |
| B | 10 | 247 | 184297 | 1090.71 | 780 | 752 | 168.3 |
| C | 12 | 252 | 845622 | 4021.32 | 766 | 758 | 210.1 |
| C | 15 | 219 | 713942 | 3394.56 | 766 | 758 | 210.1 |
| C | 15 | 208 | 510629 | 2426.85 | 766 | 758 | 210.1 |
| D | 12 | 110 | 12067692 | 94169.3 | 446 | 426 | 128.1 |
| D | 5 | 38 | 867665 | 6767.67 | 446 | 426 | 128.1 |
| D | 11 | 129 | 299688 | 2335.35 | 446 | 426 | 128.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

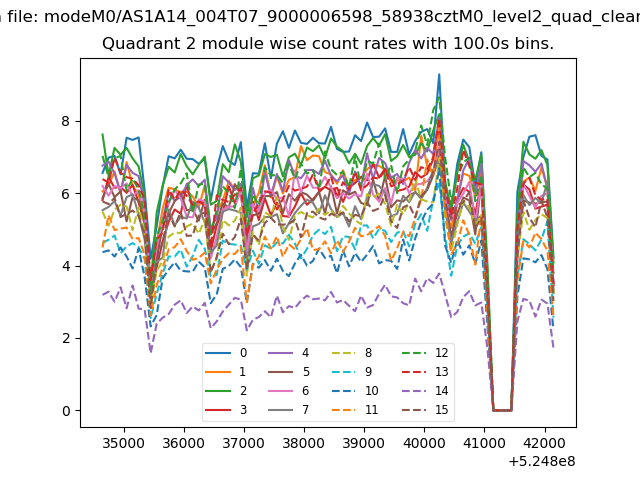

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

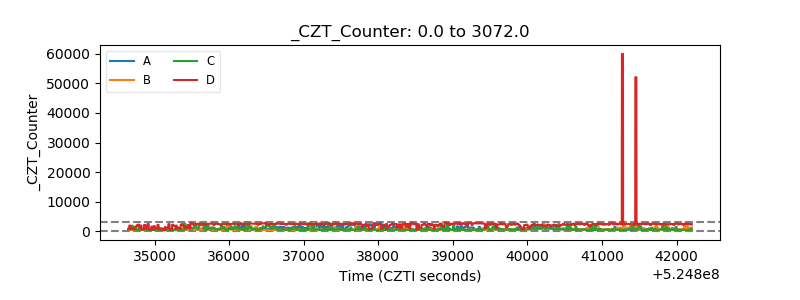

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

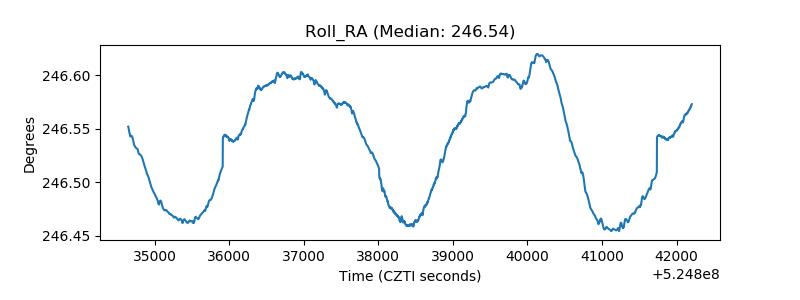

| _Roll_RA |  |

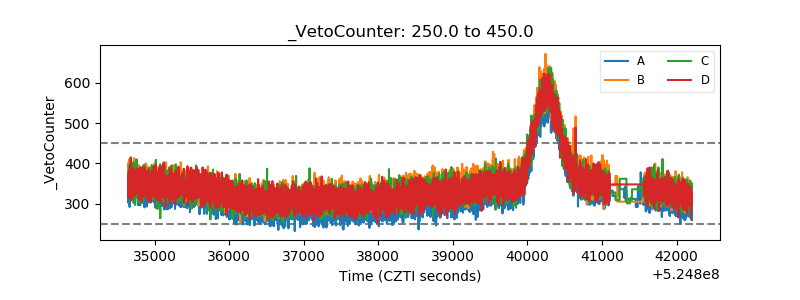

| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

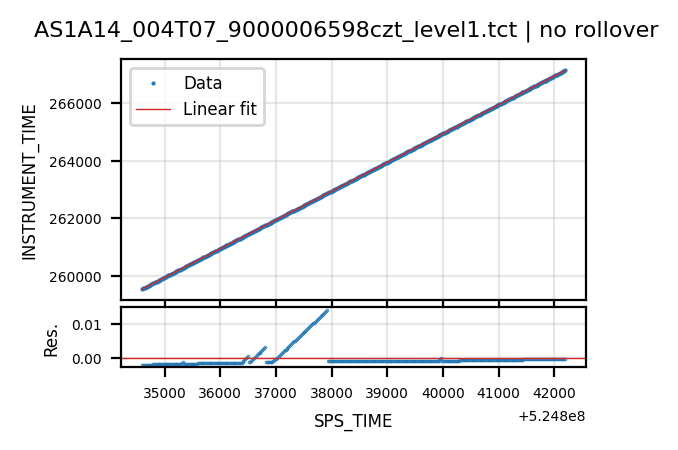

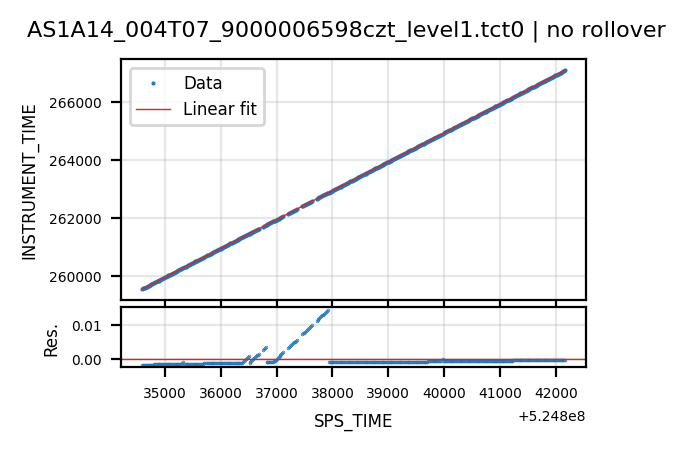

| Tct |  |  |
