| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58939cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58939cztM0_level2_quad_clean.evt |
| Size (bytes) | 994,930,560 | 81,334,080 |
| Size | 948.8 MB | 77.6 MB |
| Events in quadrant A | 8,750,797 | 547,942 |
| Events in quadrant B | 5,782,289 | 693,681 |
| Events in quadrant C | 4,948,267 | 650,884 |
| Events in quadrant D | 16,782,377 | 61,913 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30836 | 0 |
| B | 0 | 22087 | 0 |
| C | 0 | 19796 | 3 |
| D | 0 | 54712 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7295 | 1933 | 26.497601% |
| B | 7296 | 782 | 10.718202% |
| C | 7295 | 391 | 5.359836% |
| D | 7295 | 6679 | 91.555860% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7294 | 7294 | 1522 | 1522 | 20.87% | 20.87% |  |
| B | 7295 | 7295 | 635 | 635 | 8.70% | 8.70% |  |
| C | 7295 | 7295 | 335 | 335 | 4.59% | 4.59% |  |
| D | 7295 | 7295 | 6469 | 6469 | 88.68% | 88.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 3756698 | 21208.16 | 716 | 698 | 177.1 |
| A | 10 | 251 | 1697023 | 9578.26 | 716 | 698 | 177.1 |
| A | 0 | 24 | 284906 | 1604.77 | 716 | 698 | 177.1 |
| B | 4 | 171 | 1727122 | 10453.75 | 768 | 738 | 165.1 |
| B | 4 | 236 | 329255 | 1989.26 | 768 | 738 | 165.1 |
| B | 5 | 185 | 298220 | 1801.34 | 768 | 738 | 165.1 |
| C | 12 | 252 | 613240 | 2901.94 | 770 | 763 | 211.1 |
| C | 4 | 5 | 593715 | 2809.43 | 770 | 763 | 211.1 |
| C | 15 | 219 | 211524 | 998.59 | 770 | 763 | 211.1 |
| D | 12 | 110 | 13070931 | 114149.21 | 398 | 380 | 114.5 |
| D | 1 | 3 | 970458 | 8471.99 | 398 | 380 | 114.5 |
| D | 11 | 129 | 604890 | 5279.37 | 398 | 380 | 114.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

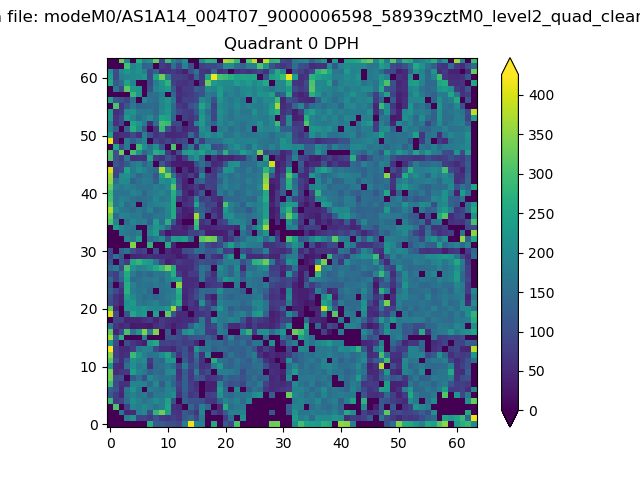

| Quadrant A |  |
 |

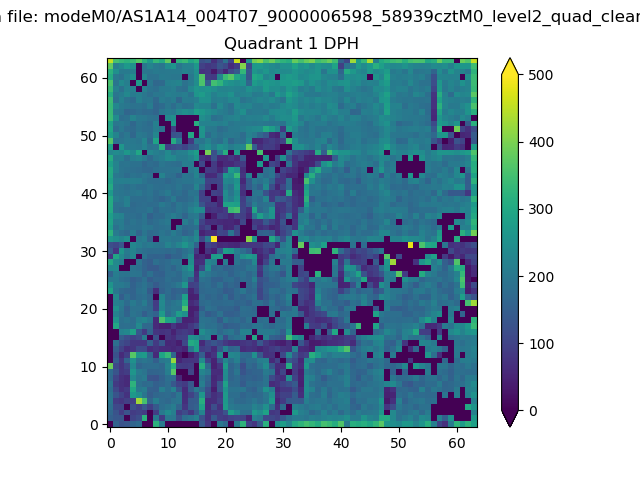

Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

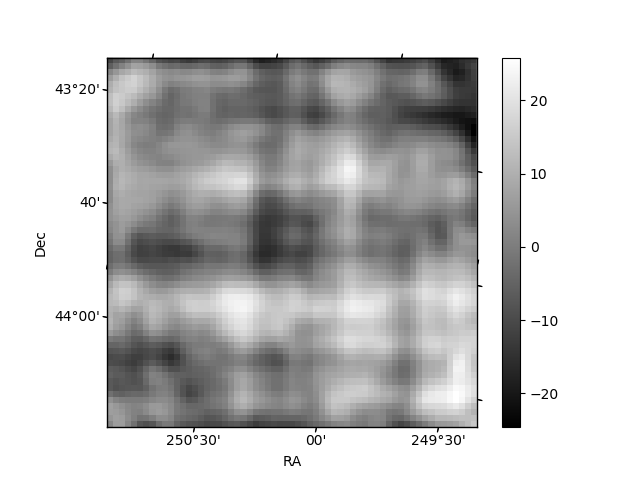

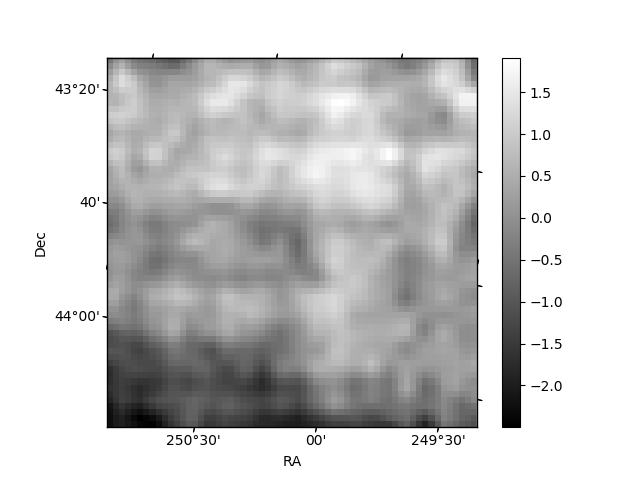

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

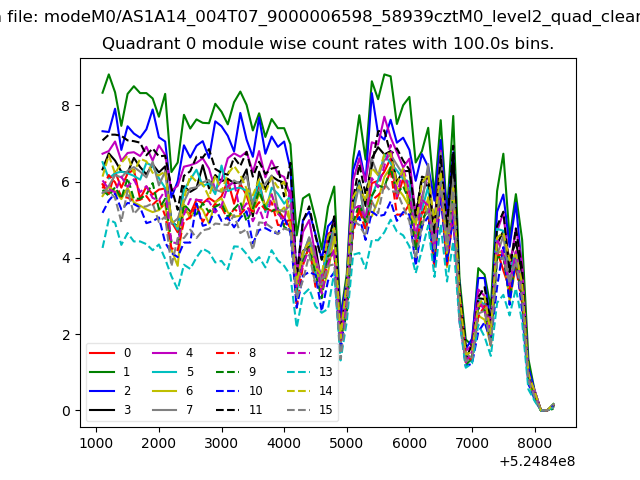

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

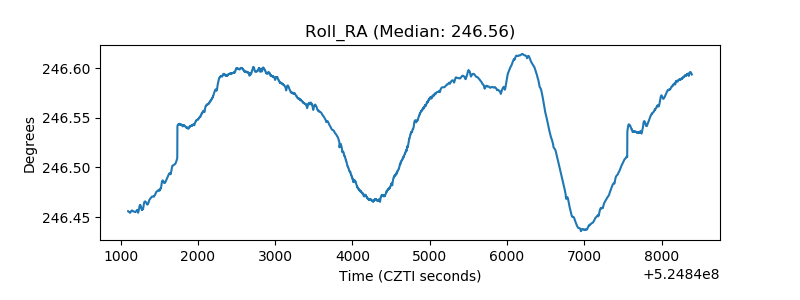

| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

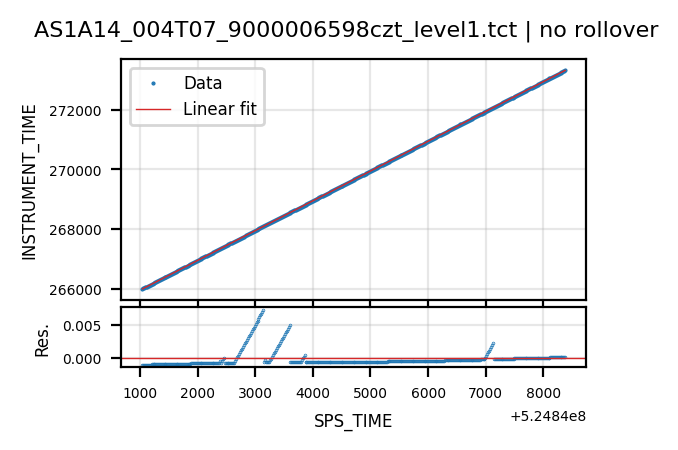

| Tct |  |  |
