| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58954cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58954cztM0_level2_quad_clean.evt |
| Size (bytes) | 792,829,440 | 95,489,280 |
| Size | 756.1 MB | 91.1 MB |
| Events in quadrant A | 4,490,396 | 711,846 |
| Events in quadrant B | 8,965,418 | 540,078 |
| Events in quadrant C | 3,862,132 | 686,793 |
| Events in quadrant D | 11,454,929 | 435,675 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18546 | 0 |
| B | 0 | 31821 | 0 |
| C | 0 | 16665 | 0 |
| D | 0 | 39180 | 7 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7422 | 223 | 3.004581% |
| B | 7423 | 2382 | 32.089452% |
| C | 7423 | 83 | 1.118146% |
| D | 7422 | 2799 | 37.712207% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7422 | 7422 | 191 | 191 | 2.57% | 2.57% |  |
| B | 7423 | 7423 | 1856 | 1856 | 25.00% | 25.00% |  |
| C | 7423 | 7423 | 85 | 85 | 1.15% | 1.15% |  |
| D | 7422 | 7422 | 2598 | 2598 | 35.00% | 35.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1092457 | 5333.48 | 825 | 804 | 204.7 |
| A | 0 | 24 | 51142 | 245.94 | 825 | 804 | 204.7 |
| A | 15 | 233 | 39091 | 187.06 | 825 | 804 | 204.7 |
| B | 6 | 255 | 3701742 | 25250.78 | 678 | 654 | 146.6 |
| B | 2 | 249 | 1143960 | 7800.24 | 678 | 654 | 146.6 |
| B | 4 | 171 | 715660 | 4878.15 | 678 | 654 | 146.6 |
| C | 12 | 252 | 378968 | 1718.55 | 805 | 799 | 220.1 |
| C | 3 | 233 | 144628 | 653.62 | 805 | 799 | 220.1 |
| C | 4 | 5 | 38988 | 173.55 | 805 | 799 | 220.1 |
| D | 12 | 110 | 6718123 | 33681.25 | 699 | 667 | 199.4 |
| D | 11 | 129 | 1135122 | 5688.14 | 699 | 667 | 199.4 |
| D | 7 | 222 | 277797 | 1389.53 | 699 | 667 | 199.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

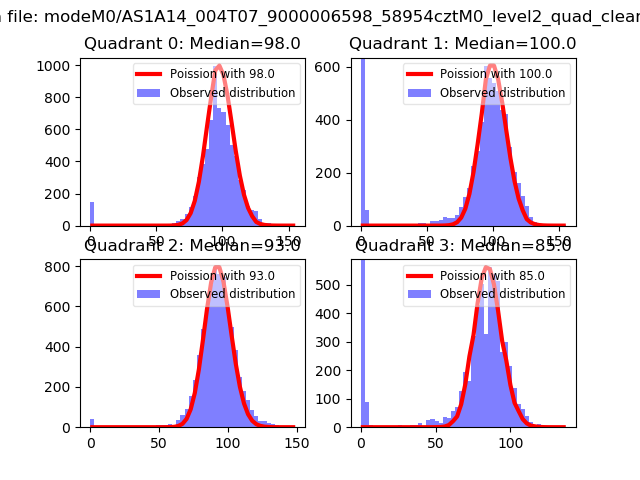

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

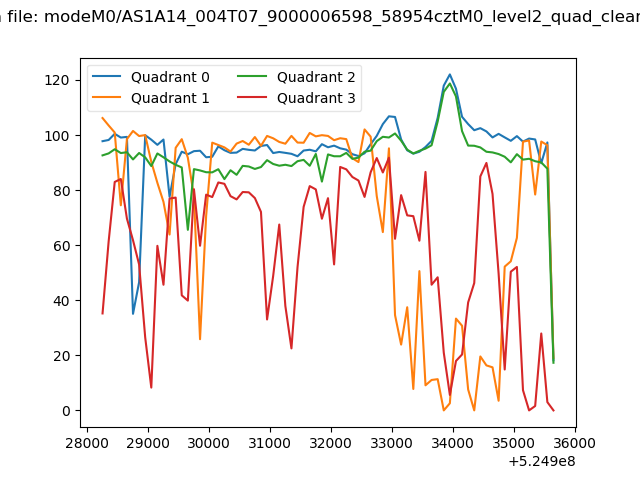

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

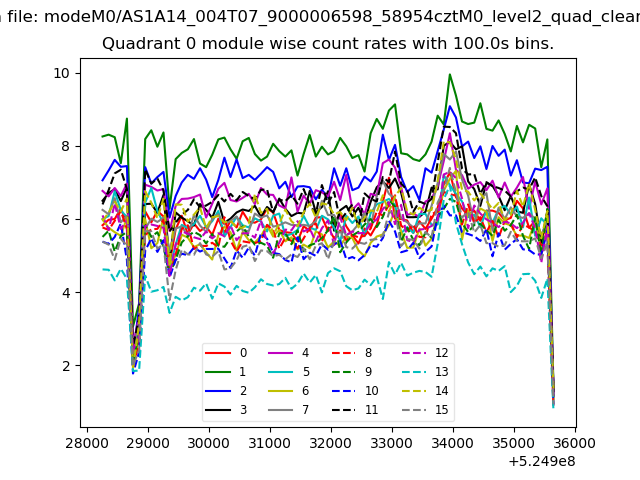

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

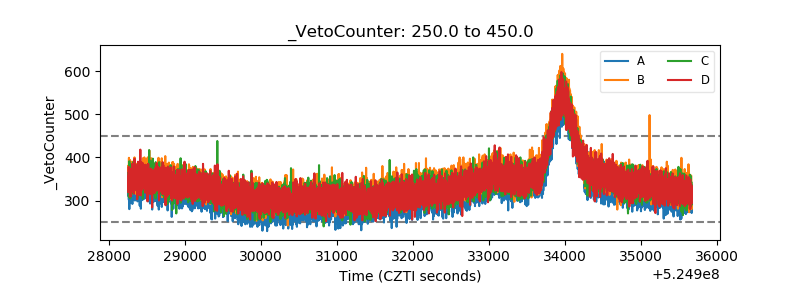

| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
