| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58967cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58967cztM0_level2_quad_clean.evt |
| Size (bytes) | 973,604,160 | 94,625,280 |
| Size | 928.5 MB | 90.2 MB |
| Events in quadrant A | 8,075,134 | 636,420 |
| Events in quadrant B | 11,165,522 | 518,750 |
| Events in quadrant C | 4,390,101 | 702,280 |
| Events in quadrant D | 11,811,697 | 469,899 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29347 | 0 |
| B | 0 | 38463 | 0 |
| C | 0 | 18626 | 0 |
| D | 0 | 40451 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7723 | 1432 | 18.542017% |
| B | 7724 | 3321 | 42.995857% |
| C | 7724 | 277 | 3.586225% |
| D | 7724 | 2732 | 35.370274% |

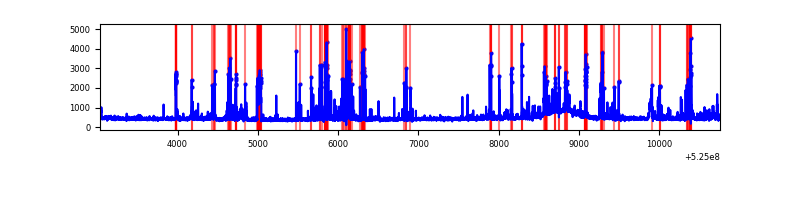

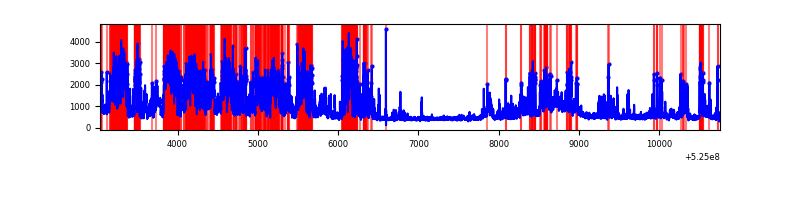

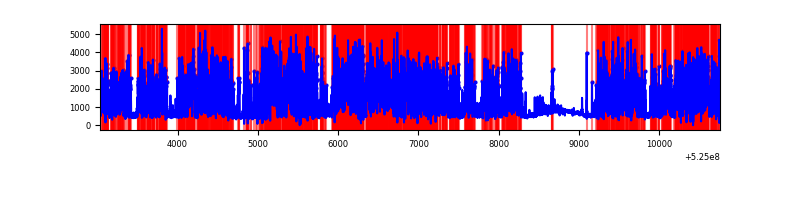

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7723 | 7723 | 1033 | 1033 | 13.38% | 13.38% |  |
| B | 7724 | 7724 | 2045 | 2045 | 26.48% | 26.48% |  |
| C | 7724 | 7724 | 192 | 192 | 2.49% | 2.49% |  |
| D | 7724 | 7724 | 2375 | 2375 | 30.75% | 30.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 4710639 | 23390.59 | 823 | 802 | 201.4 |
| A | 4 | 3 | 43698 | 213.04 | 823 | 802 | 201.4 |
| A | 14 | 254 | 37092 | 180.23 | 823 | 802 | 201.4 |
| B | 2 | 249 | 4739711 | 31046.5 | 713 | 689 | 152.6 |
| B | 6 | 255 | 2415830 | 15822.18 | 713 | 689 | 152.6 |
| B | 4 | 236 | 794908 | 5203.12 | 713 | 689 | 152.6 |
| C | 12 | 252 | 922451 | 3983.53 | 843 | 835 | 231.4 |
| C | 12 | 249 | 52722 | 224.27 | 843 | 835 | 231.4 |
| C | 15 | 208 | 25997 | 108.76 | 843 | 835 | 231.4 |
| D | 12 | 110 | 7372686 | 33905.81 | 766 | 732 | 217.4 |
| D | 7 | 222 | 589171 | 2706.4 | 766 | 732 | 217.4 |
| D | 2 | 249 | 360610 | 1655.18 | 766 | 732 | 217.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

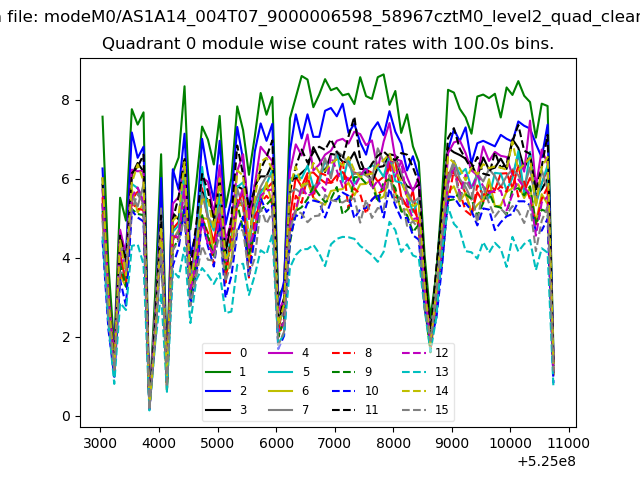

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

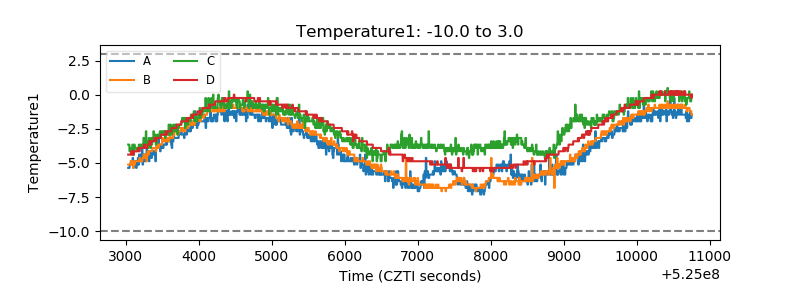

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

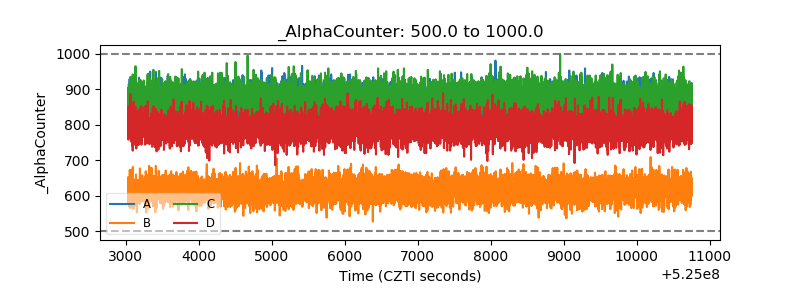

| Alpha Counter |  |

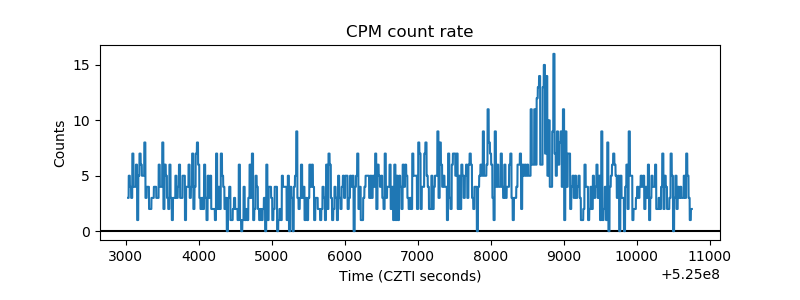

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |

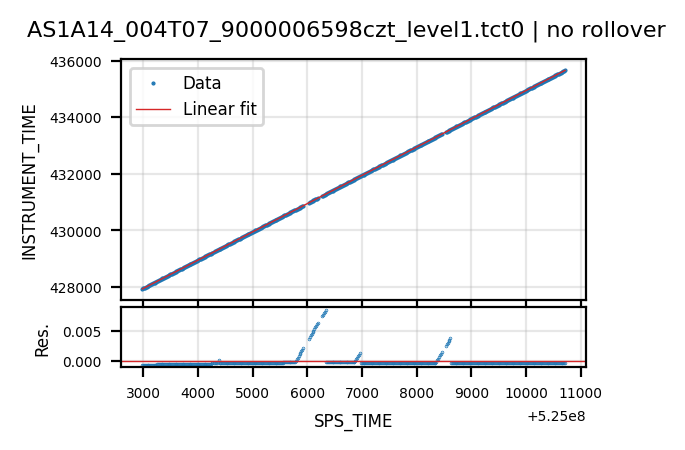

| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
