| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58968cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58968cztM0_level2_quad_clean.evt |
| Size (bytes) | 978,517,440 | 90,417,600 |
| Size | 933.2 MB | 86.2 MB |
| Events in quadrant A | 7,217,631 | 657,024 |
| Events in quadrant B | 11,059,623 | 455,112 |
| Events in quadrant C | 4,508,919 | 669,794 |
| Events in quadrant D | 12,856,771 | 434,219 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26551 | 0 |
| B | 0 | 37985 | 0 |
| C | 0 | 18829 | 0 |
| D | 0 | 43355 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7486 | 934 | 12.476623% |
| B | 7486 | 3493 | 46.660433% |
| C | 7486 | 305 | 4.074272% |
| D | 7486 | 2933 | 39.179802% |

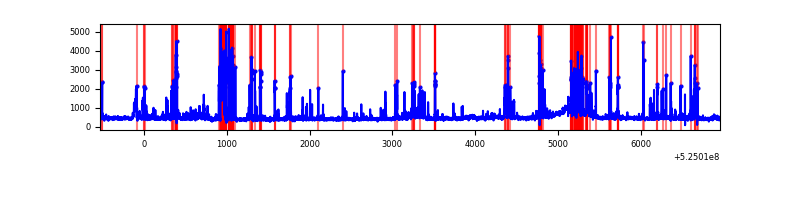

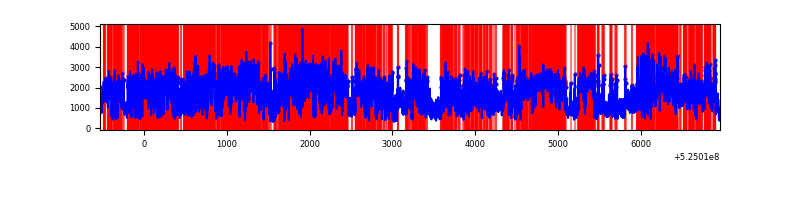

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7486 | 7486 | 718 | 718 | 9.59% | 9.59% |  |
| B | 7486 | 7485 | 2188 | 2188 | 29.23% | 29.23% |  |
| C | 7486 | 7486 | 263 | 263 | 3.51% | 3.51% |  |
| D | 7486 | 7486 | 2813 | 2813 | 37.58% | 37.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 3690945 | 18549.89 | 801 | 781 | 198.9 |
| A | 3 | 14 | 260072 | 1303.42 | 801 | 781 | 198.9 |
| A | 4 | 3 | 49544 | 245.12 | 801 | 781 | 198.9 |
| B | 2 | 249 | 6489744 | 48210.43 | 628 | 604 | 134.6 |
| B | 4 | 236 | 960332 | 7130.2 | 628 | 604 | 134.6 |
| B | 6 | 255 | 564110 | 4186.51 | 628 | 604 | 134.6 |
| C | 12 | 252 | 1146818 | 5221.48 | 796 | 785 | 219.5 |
| C | 4 | 5 | 90000 | 406.47 | 796 | 785 | 219.5 |
| C | 11 | 244 | 37657 | 167.99 | 796 | 785 | 219.5 |
| D | 12 | 110 | 8824104 | 43913.01 | 700 | 668 | 200.9 |
| D | 2 | 249 | 863682 | 4295.1 | 700 | 668 | 200.9 |
| D | 12 | 248 | 88427 | 436.76 | 700 | 668 | 200.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

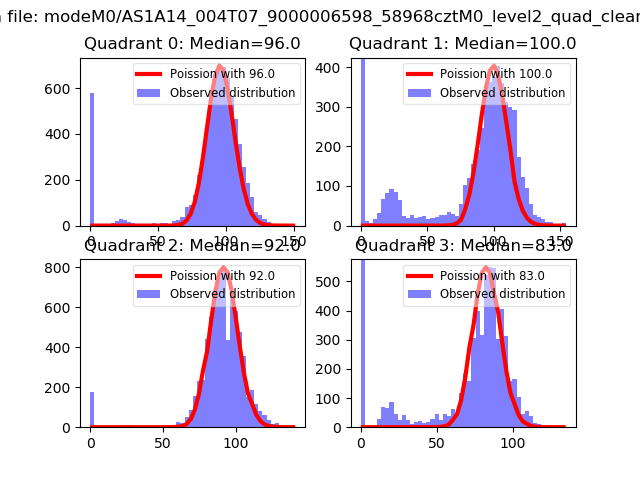

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

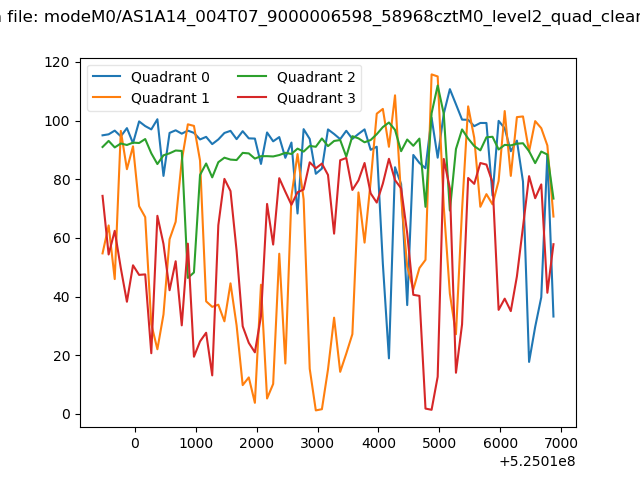

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

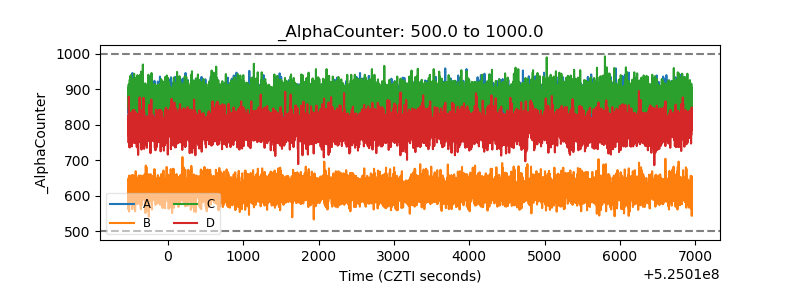

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

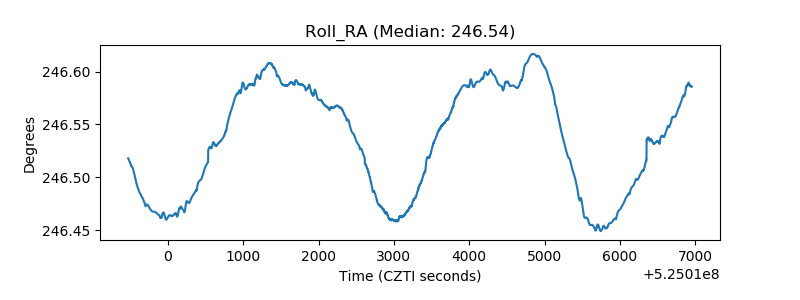

| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

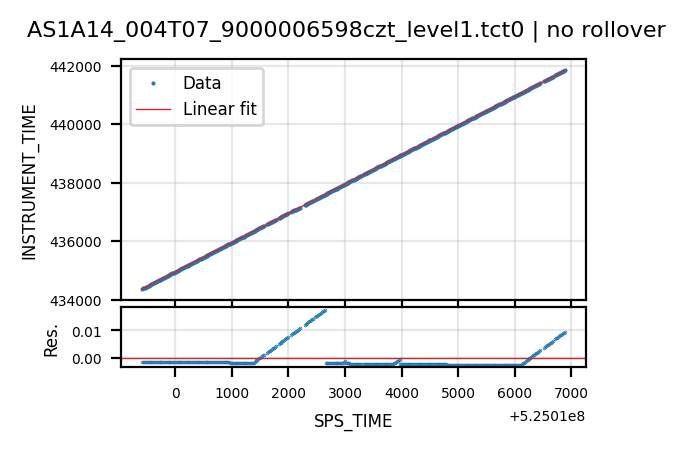

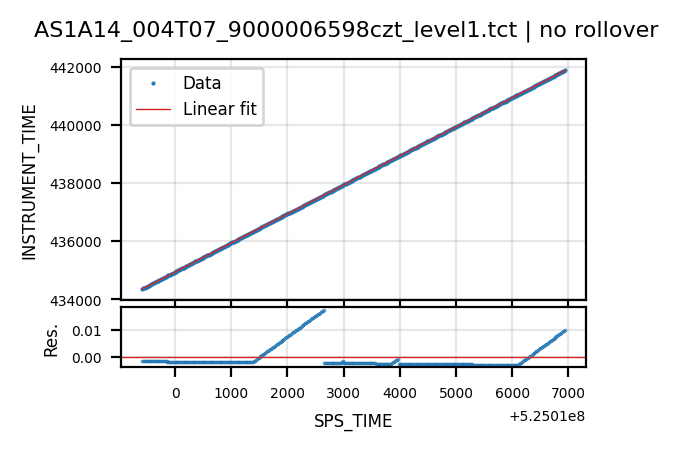

| Tct |  |  |
