| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58982cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58982cztM0_level2_quad_clean.evt |
| Size (bytes) | 910,621,440 | 99,443,520 |
| Size | 868.4 MB | 94.8 MB |
| Events in quadrant A | 10,199,550 | 561,506 |
| Events in quadrant B | 5,812,524 | 771,329 |
| Events in quadrant C | 3,611,864 | 735,041 |
| Events in quadrant D | 13,471,560 | 392,346 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35713 | 0 |
| B | 0 | 22568 | 0 |
| C | 0 | 16562 | 1 |
| D | 0 | 45391 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7916 | 2288 | 28.903487% |
| B | 7916 | 643 | 8.122789% |
| C | 7915 | 10 | 0.126342% |
| D | 7916 | 3773 | 47.662961% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7916 | 7916 | 1867 | 1867 | 23.59% | 23.59% |  |
| B | 7916 | 7916 | 412 | 412 | 5.20% | 5.20% |  |
| C | 7915 | 7915 | 5 | 5 | 0.06% | 0.06% |  |
| D | 7916 | 7916 | 3759 | 3759 | 47.49% | 47.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 6699327 | 35640.66 | 763 | 742 | 187.9 |
| A | 0 | 24 | 250862 | 1330.79 | 763 | 742 | 187.9 |
| A | 3 | 14 | 157080 | 831.82 | 763 | 742 | 187.9 |
| B | 4 | 171 | 781362 | 4283.21 | 847 | 817 | 182.2 |
| B | 10 | 247 | 682212 | 3739.13 | 847 | 817 | 182.2 |
| B | 0 | 157 | 365050 | 1998.72 | 847 | 817 | 182.2 |
| C | 12 | 252 | 63644 | 265.71 | 865 | 858 | 236.3 |
| C | 12 | 249 | 51276 | 213.37 | 865 | 858 | 236.3 |
| C | 14 | 254 | 25699 | 105.13 | 865 | 858 | 236.3 |
| D | 12 | 110 | 9609582 | 44454.05 | 760 | 726 | 216.2 |
| D | 6 | 239 | 255032 | 1176.51 | 760 | 726 | 216.2 |
| D | 2 | 249 | 175096 | 806.7 | 760 | 726 | 216.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

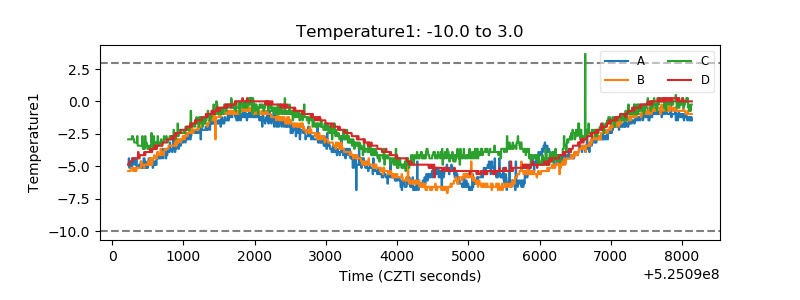

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

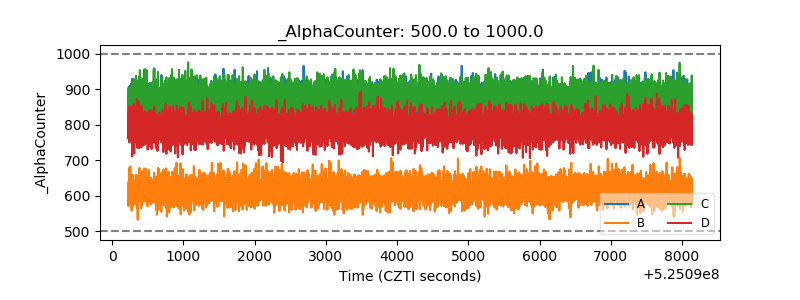

| Alpha Counter |  |
| _CPM_Rate |  |

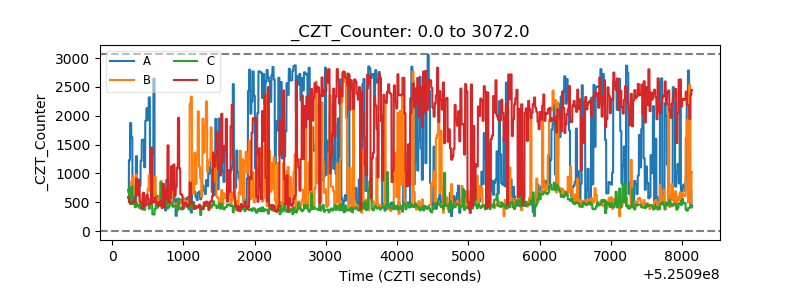

| CZT Counter |  |
| +2.5 Volts monitor |  |

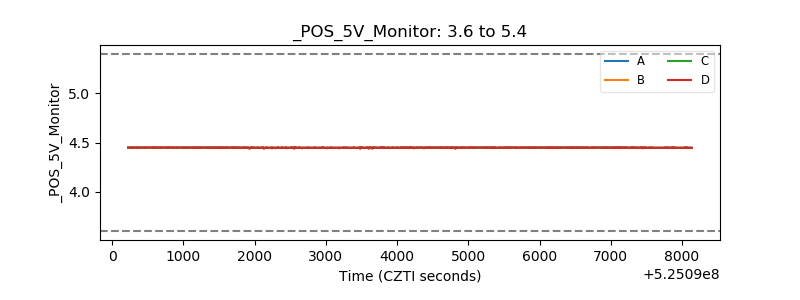

| +5 Volts monitor |  |

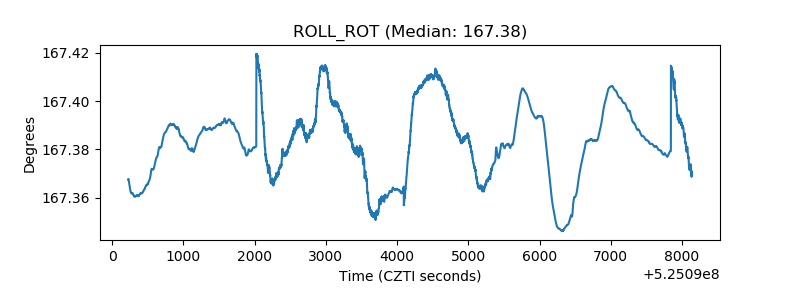

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

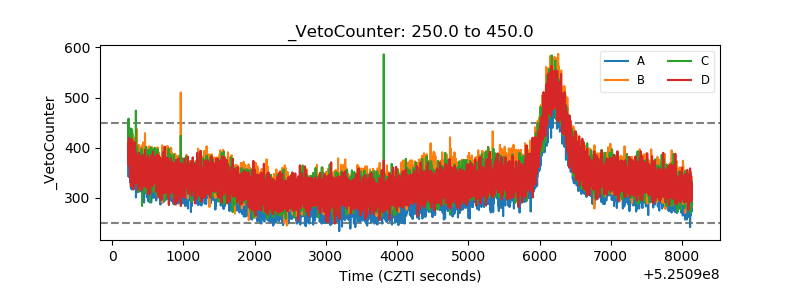

| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
