| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58983cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58983cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,058,472,000 | 81,397,440 |
| Size | 1009.4 MB | 77.6 MB |
| Events in quadrant A | 9,560,738 | 547,405 |
| Events in quadrant B | 4,592,265 | 752,563 |
| Events in quadrant C | 12,460,106 | 205,089 |
| Events in quadrant D | 11,997,975 | 446,403 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33501 | 0 |
| B | 0 | 18689 | 0 |
| C | 0 | 42249 | 0 |
| D | 0 | 40706 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7369 | 1988 | 26.977880% |
| B | 7370 | 275 | 3.731343% |
| C | 7370 | 5083 | 68.968792% |
| D | 7370 | 2694 | 36.553596% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

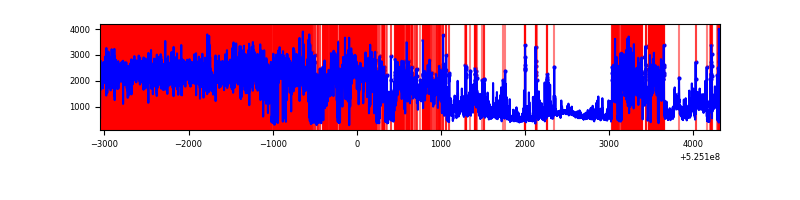

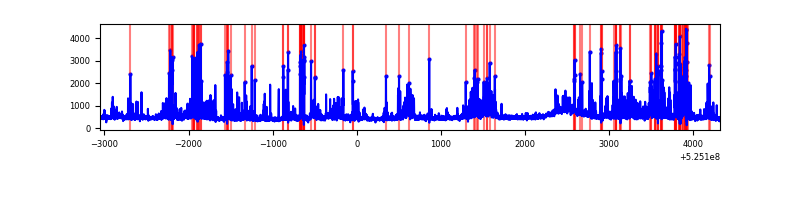

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7369 | 7369 | 1658 | 1658 | 22.50% | 22.50% |  |
| B | 7370 | 7370 | 136 | 136 | 1.85% | 1.85% |  |
| C | 7369 | 7369 | 4150 | 4150 | 56.32% | 56.32% |  |
| D | 7370 | 7370 | 2938 | 2938 | 39.86% | 39.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 6348664 | 35800.87 | 720 | 701 | 177.3 |
| A | 3 | 14 | 249688 | 1404.22 | 720 | 701 | 177.3 |
| A | 0 | 24 | 45265 | 251.33 | 720 | 701 | 177.3 |
| B | 10 | 247 | 393162 | 2240.18 | 809 | 779 | 175.2 |
| B | 4 | 171 | 230220 | 1309.92 | 809 | 779 | 175.2 |
| B | 8 | 234 | 172519 | 980.49 | 809 | 779 | 175.2 |
| C | 15 | 219 | 11171843 | 137662.06 | 293 | 290 | 81.2 |
| C | 14 | 254 | 30061 | 366.85 | 293 | 290 | 81.2 |
| C | 11 | 244 | 25860 | 315.09 | 293 | 290 | 81.2 |
| D | 12 | 110 | 8510158 | 40271.99 | 741 | 707 | 211.3 |
| D | 6 | 239 | 126593 | 595.77 | 741 | 707 | 211.3 |
| D | 2 | 249 | 101117 | 475.2 | 741 | 707 | 211.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

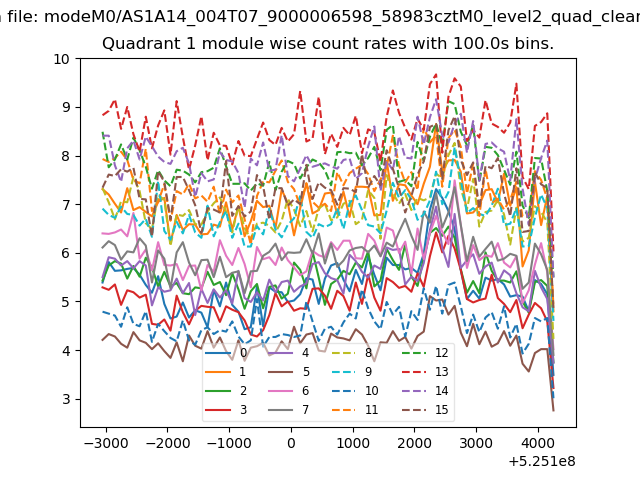

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

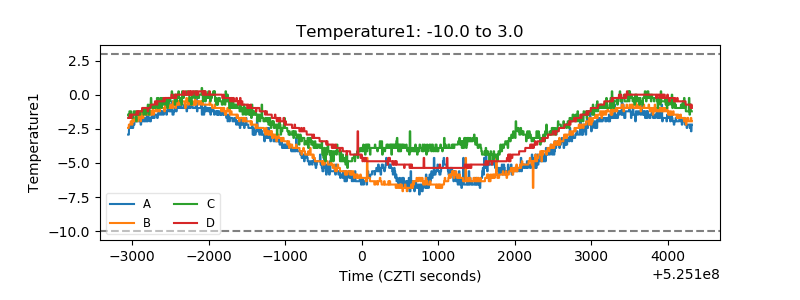

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

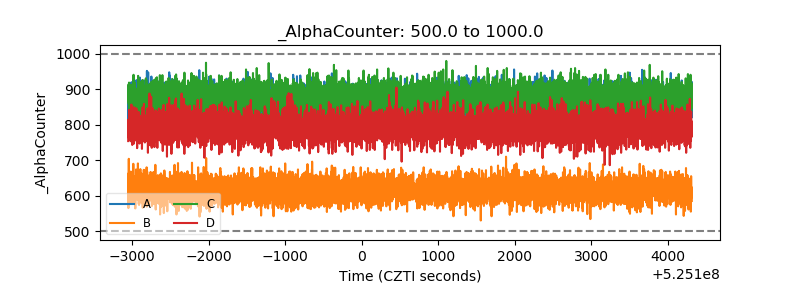

| Alpha Counter |  |

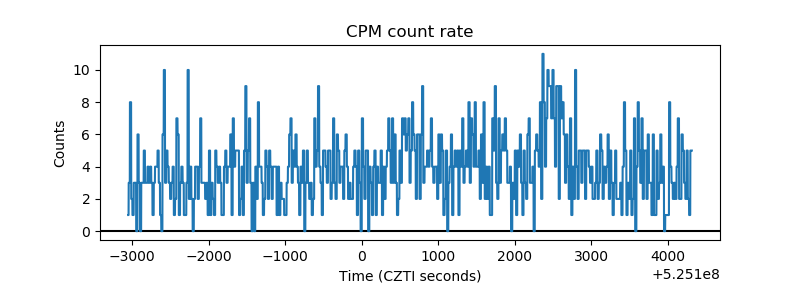

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

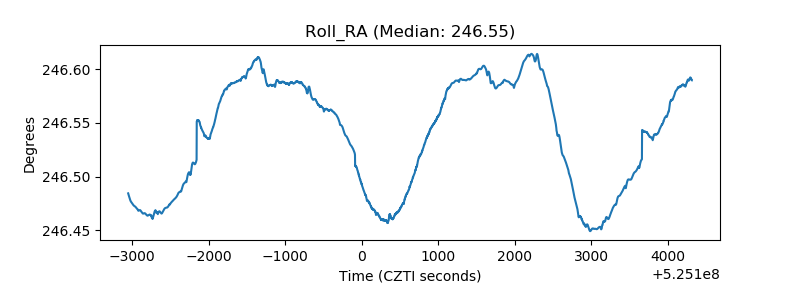

| _Roll_RA |  |

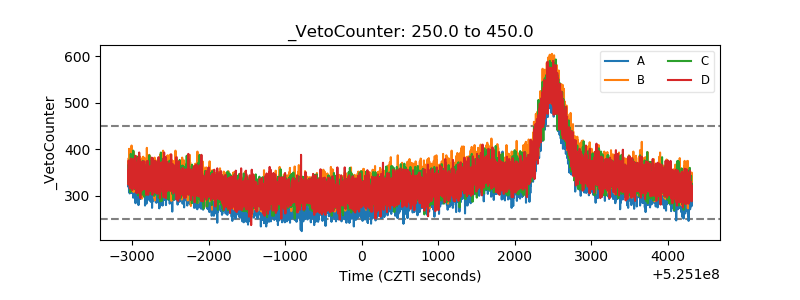

| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
