| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58996cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58996cztM0_level2_quad_clean.evt |
| Size (bytes) | 808,087,680 | 86,688,000 |
| Size | 770.7 MB | 82.7 MB |
| Events in quadrant A | 4,335,321 | 676,590 |
| Events in quadrant B | 5,456,668 | 657,588 |
| Events in quadrant C | 5,659,921 | 580,782 |
| Events in quadrant D | 13,916,018 | 220,659 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17594 | 0 |
| B | 0 | 21029 | 0 |
| C | 0 | 21574 | 0 |
| D | 0 | 46022 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7023 | 205 | 2.918980% |
| B | 7023 | 906 | 12.900470% |
| C | 7023 | 877 | 12.487541% |
| D | 7023 | 4799 | 68.332621% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7023 | 7023 | 31 | 31 | 0.44% | 0.44% |  |
| B | 7023 | 7023 | 548 | 548 | 7.80% | 7.80% |  |
| C | 7023 | 7023 | 722 | 722 | 10.28% | 10.28% |  |
| D | 7022 | 7022 | 4262 | 4262 | 60.69% | 60.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 24 | 665631 | 3367.82 | 801 | 777 | 197.4 |
| A | 14 | 238 | 292151 | 1475.95 | 801 | 777 | 197.4 |
| A | 15 | 233 | 206043 | 1039.77 | 801 | 777 | 197.4 |
| B | 6 | 255 | 1791075 | 11084.23 | 754 | 726 | 161.5 |
| B | 3 | 238 | 185701 | 1145.2 | 754 | 726 | 161.5 |
| B | 10 | 247 | 125058 | 769.75 | 754 | 726 | 161.5 |
| C | 15 | 219 | 2477468 | 12270.36 | 740 | 732 | 201.8 |
| C | 13 | 3 | 90939 | 446.91 | 740 | 732 | 201.8 |
| C | 13 | 16 | 32609 | 157.93 | 740 | 732 | 201.8 |
| D | 12 | 110 | 11147638 | 75603.83 | 510 | 484 | 147.4 |
| D | 8 | 160 | 571224 | 3870.96 | 510 | 484 | 147.4 |
| D | 5 | 32 | 39665 | 265.74 | 510 | 484 | 147.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

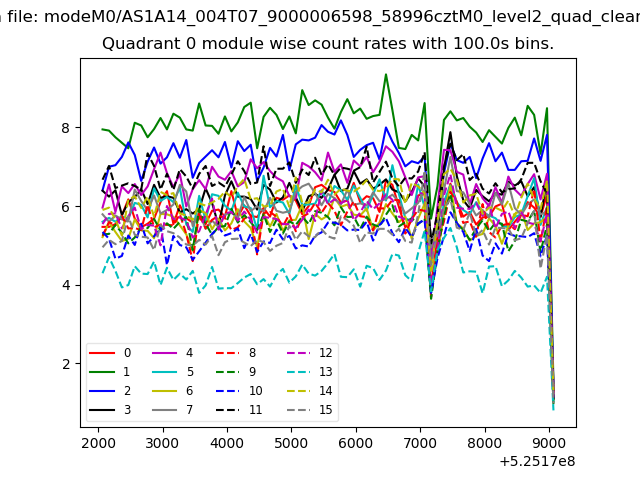

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

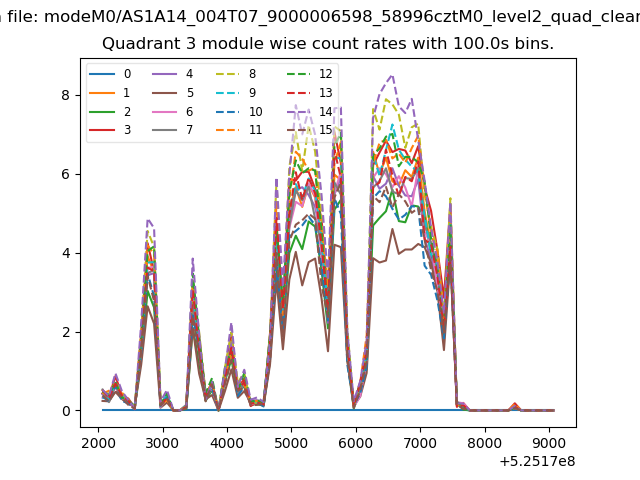

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
