| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T07_9000006598_58998cztM0_level2.fits | modeM0/AS1A14_004T07_9000006598_58998cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,038,384,000 | 80,968,320 |
| Size | 990.3 MB | 77.2 MB |
| Events in quadrant A | 5,031,496 | 680,380 |
| Events in quadrant B | 5,458,588 | 705,204 |
| Events in quadrant C | 10,124,292 | 496,726 |
| Events in quadrant D | 17,253,337 | 57,024 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19921 | 0 |
| B | 0 | 21125 | 0 |
| C | 0 | 35210 | 0 |
| D | 0 | 56021 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7358 | 505 | 6.863278% |
| B | 7358 | 769 | 10.451210% |
| C | 7358 | 2262 | 30.742049% |
| D | 7357 | 6855 | 93.176567% |

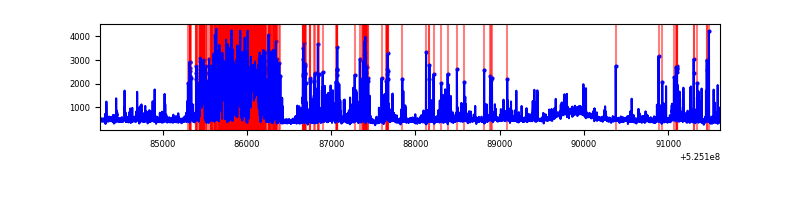

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7358 | 7358 | 358 | 358 | 4.87% | 4.87% |  |
| B | 7358 | 7358 | 531 | 531 | 7.22% | 7.22% |  |
| C | 7358 | 7358 | 2098 | 2098 | 28.51% | 28.51% |  |
| D | 7356 | 7356 | 6410 | 6410 | 87.14% | 87.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 842545 | 4171.56 | 816 | 793 | 201.8 |
| A | 0 | 24 | 522694 | 2586.44 | 816 | 793 | 201.8 |
| A | 14 | 238 | 319995 | 1581.9 | 816 | 793 | 201.8 |
| B | 6 | 255 | 1388186 | 8198.7 | 792 | 763 | 169.2 |
| B | 4 | 236 | 258251 | 1521.57 | 792 | 763 | 169.2 |
| B | 2 | 249 | 155537 | 914.61 | 792 | 763 | 169.2 |
| C | 15 | 219 | 6757873 | 35690.16 | 690 | 682 | 189.3 |
| C | 12 | 254 | 283560 | 1494.11 | 690 | 682 | 189.3 |
| C | 12 | 2 | 260149 | 1370.45 | 690 | 682 | 189.3 |
| D | 12 | 110 | 13523487 | 111082.95 | 428 | 409 | 121.7 |
| D | 8 | 160 | 1849789 | 15191.41 | 428 | 409 | 121.7 |
| D | 2 | 120 | 36875 | 299.54 | 428 | 409 | 121.7 |

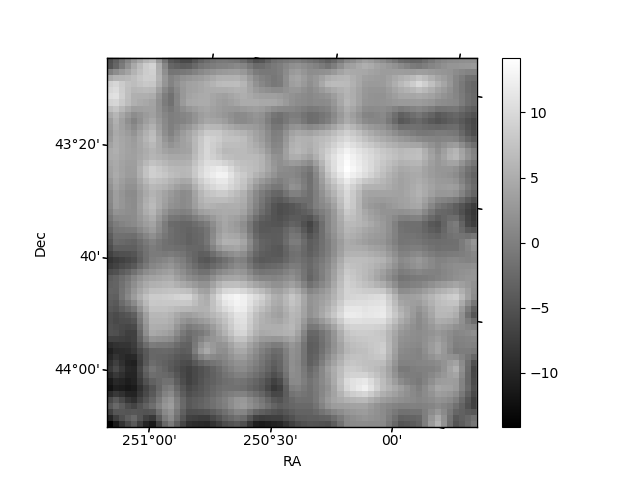

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

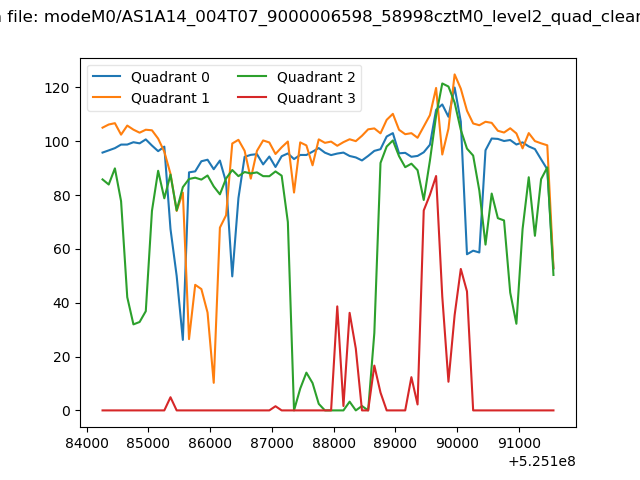

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

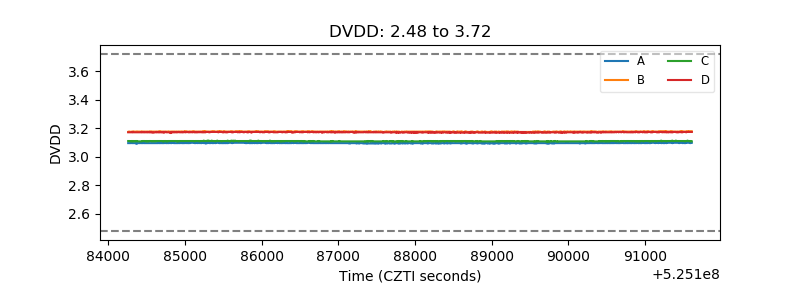

| D_VDD |  |

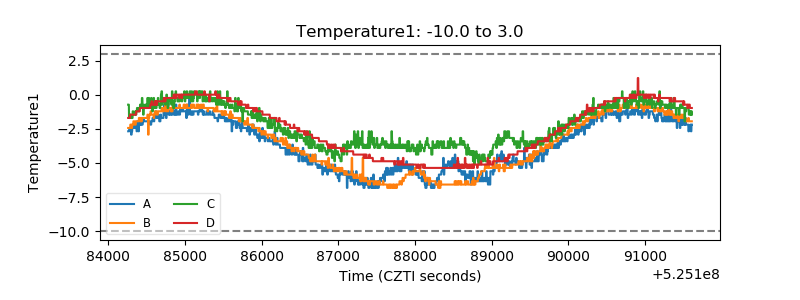

| Temperature 1 |  |
| Veto HV Monitor |  |

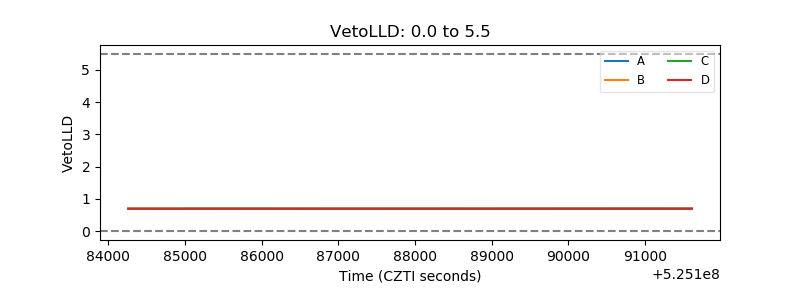

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

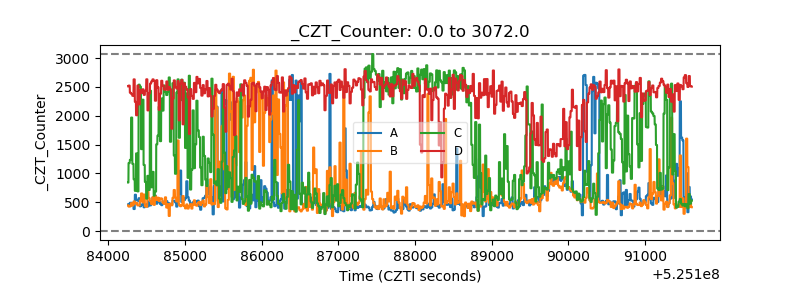

| CZT Counter |  |

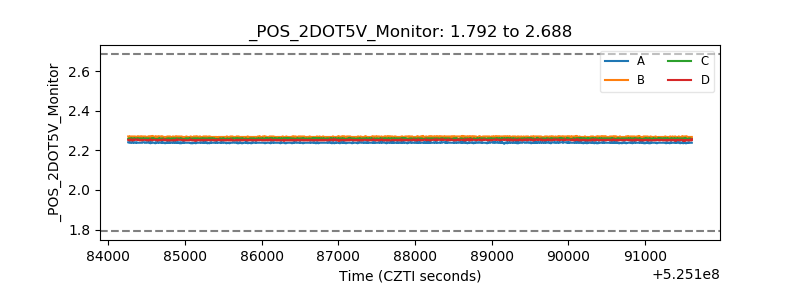

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
