| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59011cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59011cztM0_level2_quad_clean.evt |
| Size (bytes) | 961,441,920 | 83,632,320 |
| Size | 916.9 MB | 79.8 MB |
| Events in quadrant A | 5,143,731 | 684,512 |
| Events in quadrant B | 6,295,205 | 689,628 |
| Events in quadrant C | 17,584,281 | 39,313 |
| Events in quadrant D | 5,998,449 | 608,735 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20171 | 0 |
| B | 0 | 23695 | 4 |
| C | 0 | 56971 | 0 |
| D | 0 | 22756 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7327 | 450 | 6.141668% |
| B | 7326 | 920 | 12.558013% |
| C | 7326 | 6991 | 95.427245% |
| D | 7326 | 469 | 6.401856% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7327 | 7327 | 270 | 270 | 3.69% | 3.69% |  |
| B | 7325 | 7325 | 684 | 684 | 9.34% | 9.34% |  |
| C | 7325 | 7325 | 6904 | 6904 | 94.25% | 94.25% |  |
| D | 7326 | 7326 | 457 | 457 | 6.24% | 6.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1126423 | 5628.02 | 811 | 790 | 200.0 |
| A | 10 | 251 | 773270 | 3862.3 | 811 | 790 | 200.0 |
| A | 12 | 18 | 24902 | 120.56 | 811 | 790 | 200.0 |
| B | 2 | 249 | 1748432 | 10496.51 | 772 | 742 | 166.5 |
| B | 8 | 234 | 598537 | 3590.32 | 772 | 742 | 166.5 |
| B | 4 | 236 | 321597 | 1927.03 | 772 | 742 | 166.5 |
| C | 15 | 219 | 15880167 | 172207.01 | 332 | 328 | 92.2 |
| C | 12 | 252 | 195817 | 2119.96 | 332 | 328 | 92.2 |
| C | 6 | 13 | 72225 | 779.68 | 332 | 328 | 92.2 |
| D | 12 | 110 | 2267052 | 10248.31 | 782 | 748 | 221.1 |
| D | 11 | 129 | 224122 | 1010.11 | 782 | 748 | 221.1 |
| D | 8 | 160 | 118520 | 532.57 | 782 | 748 | 221.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

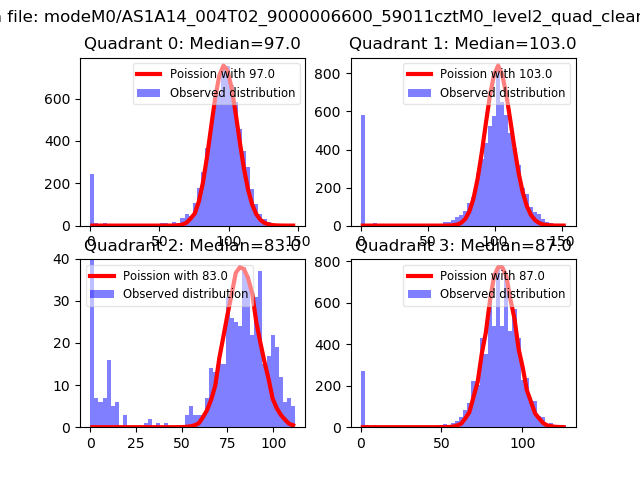

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

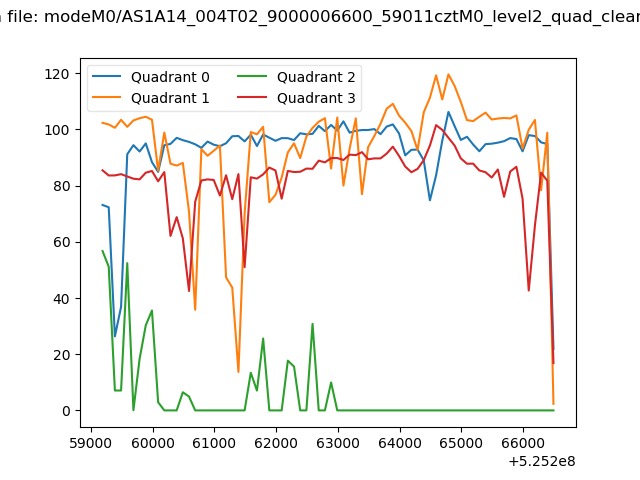

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

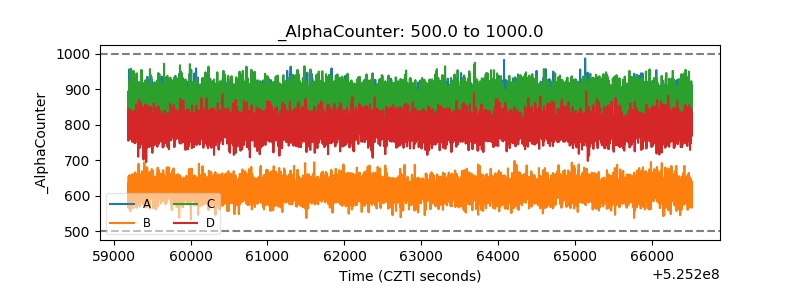

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

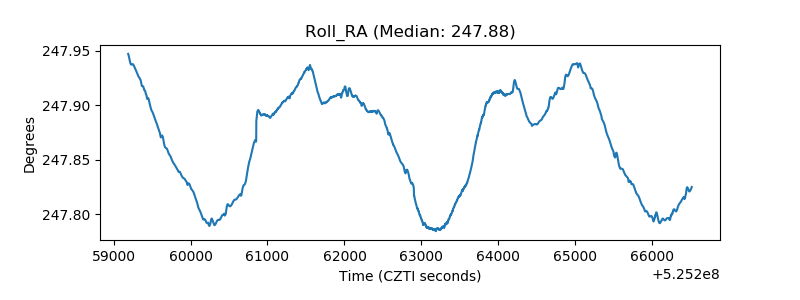

| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
