| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59026cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59026cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,099,549,440 | 78,261,120 |
| Size | 1.0 GB | 74.6 MB |
| Events in quadrant A | 4,658,327 | 716,844 |
| Events in quadrant B | 4,406,774 | 756,033 |
| Events in quadrant C | 18,087,105 | 12,974 |
| Events in quadrant D | 12,973,220 | 365,299 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18603 | 0 |
| B | 0 | 18342 | 0 |
| C | 0 | 58481 | 3 |
| D | 0 | 43696 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7450 | 126 | 1.691275% |
| B | 7451 | 268 | 3.596833% |
| C | 7450 | 7349 | 98.644295% |
| D | 7450 | 3445 | 46.241611% |

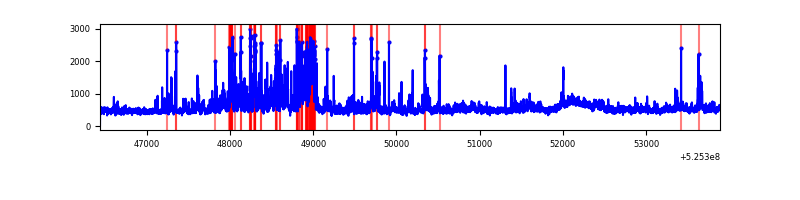

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7450 | 7450 | 115 | 115 | 1.54% | 1.54% |  |
| B | 7451 | 7451 | 187 | 187 | 2.51% | 2.51% |  |
| C | 7450 | 7450 | 7130 | 7130 | 95.70% | 95.70% |  |
| D | 7450 | 7450 | 3457 | 3457 | 46.40% | 46.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 24 | 1008815 | 4902.03 | 830 | 806 | 205.6 |
| A | 10 | 251 | 269029 | 1304.39 | 830 | 806 | 205.6 |
| A | 14 | 238 | 48787 | 233.34 | 830 | 806 | 205.6 |
| B | 4 | 236 | 552904 | 3177.57 | 812 | 781 | 173.8 |
| B | 2 | 249 | 196856 | 1128.45 | 812 | 781 | 173.8 |
| B | 5 | 185 | 191709 | 1098.83 | 812 | 781 | 173.8 |
| C | 15 | 219 | 16651494 | 175153.93 | 342 | 338 | 95.1 |
| C | 1 | 16 | 30897 | 321.45 | 342 | 338 | 95.1 |
| C | 12 | 252 | 22359 | 231.64 | 342 | 338 | 95.1 |
| D | 12 | 1 | 8346631 | 50205.73 | 579 | 552 | 166.2 |
| D | 12 | 110 | 1591257 | 9568.86 | 579 | 552 | 166.2 |
| D | 2 | 62 | 214114 | 1284.68 | 579 | 552 | 166.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

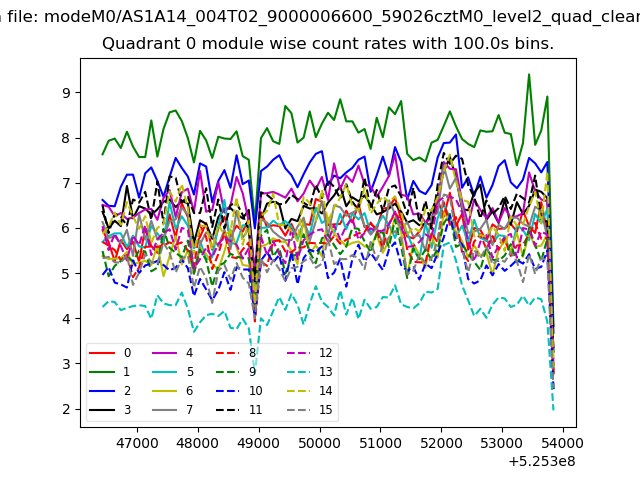

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

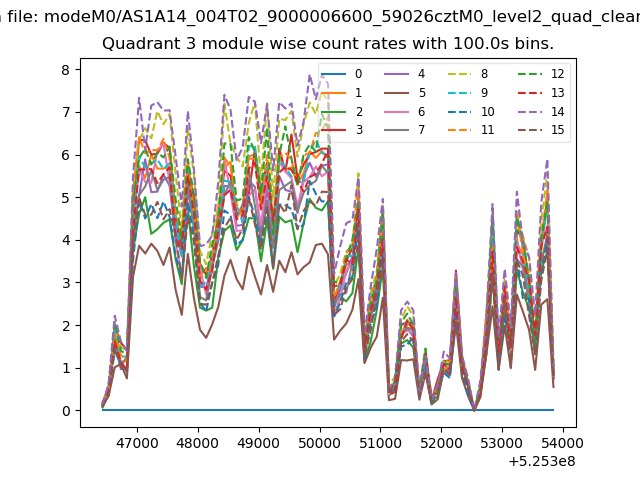

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

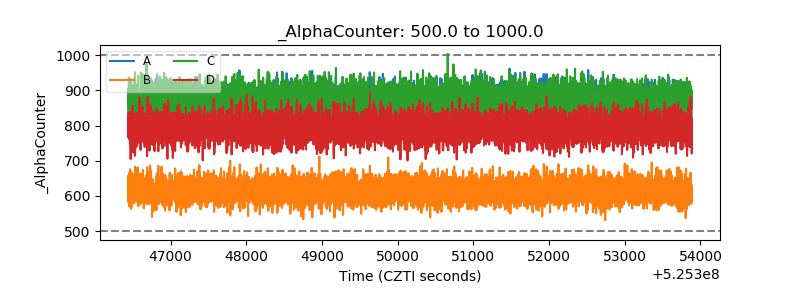

| Alpha Counter |  |

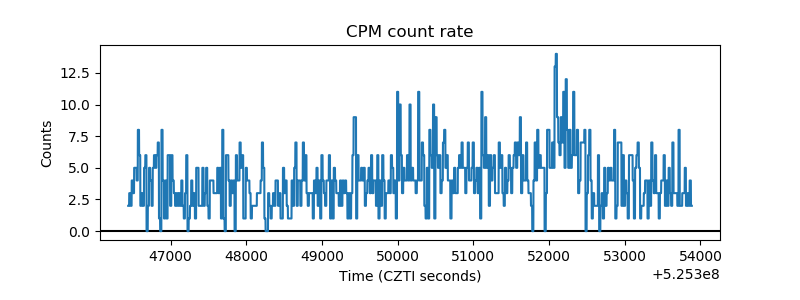

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

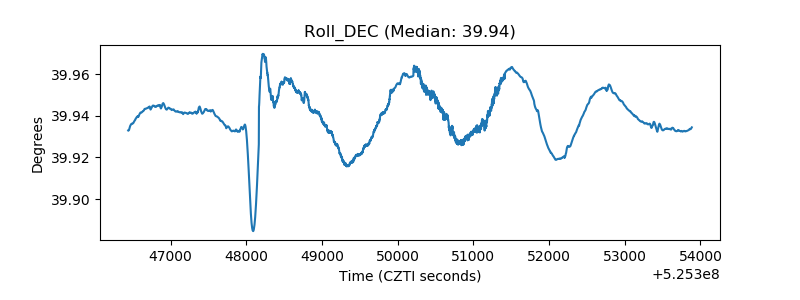

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

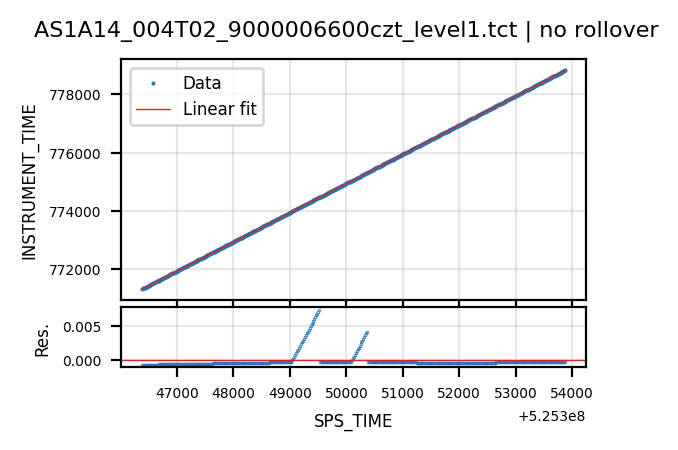

| Tct |  |  |
