| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59027cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59027cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,035,930,240 | 78,324,480 |
| Size | 987.9 MB | 74.7 MB |
| Events in quadrant A | 5,323,850 | 675,389 |
| Events in quadrant B | 4,309,620 | 712,042 |
| Events in quadrant C | 16,564,610 | 94,709 |
| Events in quadrant D | 11,591,884 | 387,759 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20516 | 0 |
| B | 0 | 17881 | 0 |
| C | 0 | 53982 | 0 |
| D | 0 | 39398 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7196 | 457 | 6.350750% |
| B | 7196 | 409 | 5.683713% |
| C | 7196 | 6373 | 88.563091% |
| D | 7196 | 3062 | 42.551417% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

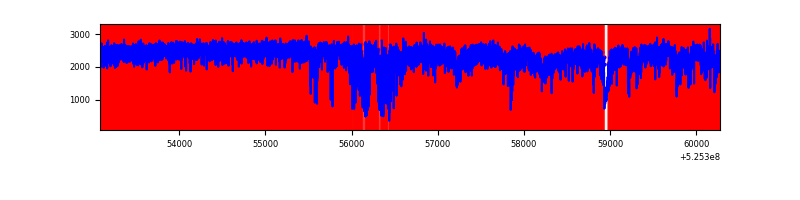

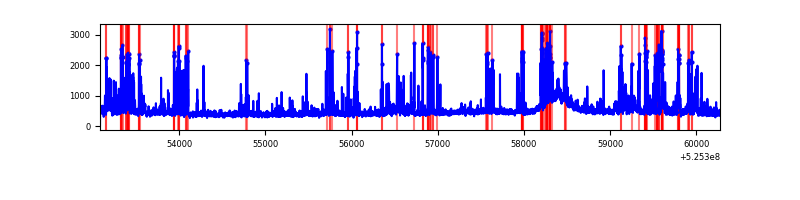

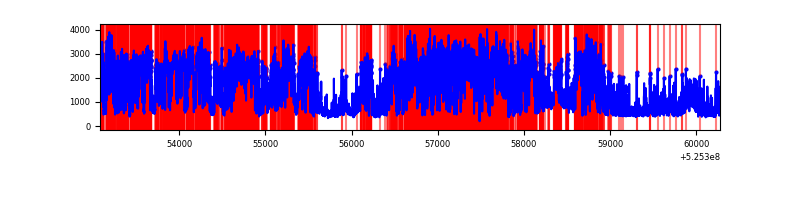

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7196 | 7196 | 308 | 308 | 4.28% | 4.28% |  |
| B | 7196 | 7196 | 158 | 158 | 2.20% | 2.20% |  |
| C | 7196 | 7196 | 6230 | 6230 | 86.58% | 86.58% |  |
| D | 7196 | 7196 | 2772 | 2772 | 38.52% | 38.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 865106 | 4317.72 | 804 | 781 | 200.2 |
| A | 0 | 24 | 788626 | 3935.66 | 804 | 781 | 200.2 |
| A | 8 | 206 | 253293 | 1261.42 | 804 | 781 | 200.2 |
| B | 4 | 236 | 500882 | 2935.47 | 789 | 760 | 170.4 |
| B | 5 | 185 | 162836 | 951.31 | 789 | 760 | 170.4 |
| B | 6 | 255 | 113376 | 661.0 | 789 | 760 | 170.4 |
| C | 15 | 219 | 14429181 | 110948.49 | 470 | 465 | 130.0 |
| C | 12 | 252 | 179075 | 1373.4 | 470 | 465 | 130.0 |
| C | 1 | 16 | 46602 | 354.76 | 470 | 465 | 130.0 |
| D | 12 | 1 | 7156137 | 41989.62 | 597 | 570 | 170.4 |
| D | 12 | 110 | 1314093 | 7707.89 | 597 | 570 | 170.4 |
| D | 2 | 62 | 315712 | 1849.29 | 597 | 570 | 170.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

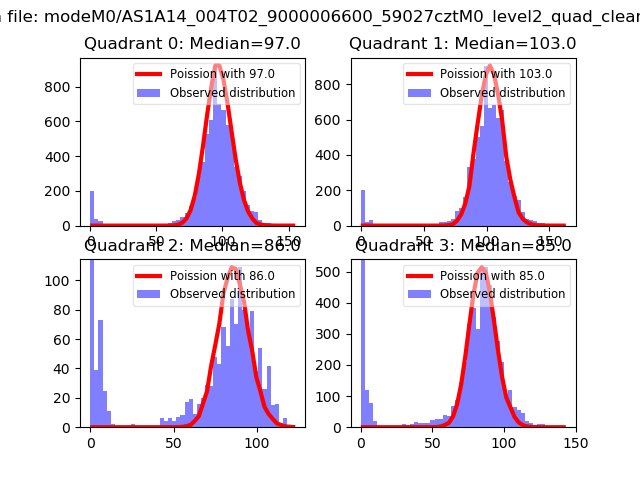

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

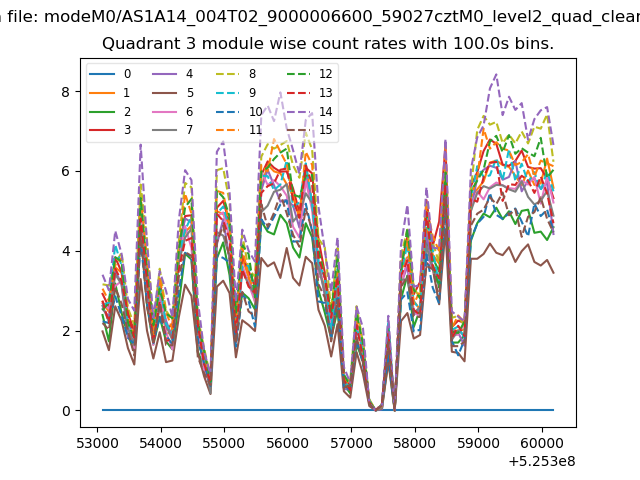

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

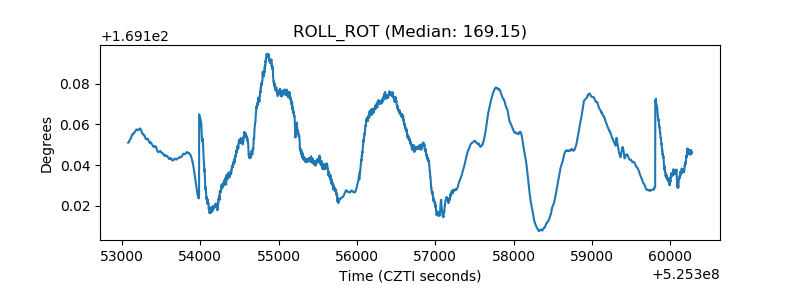

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |

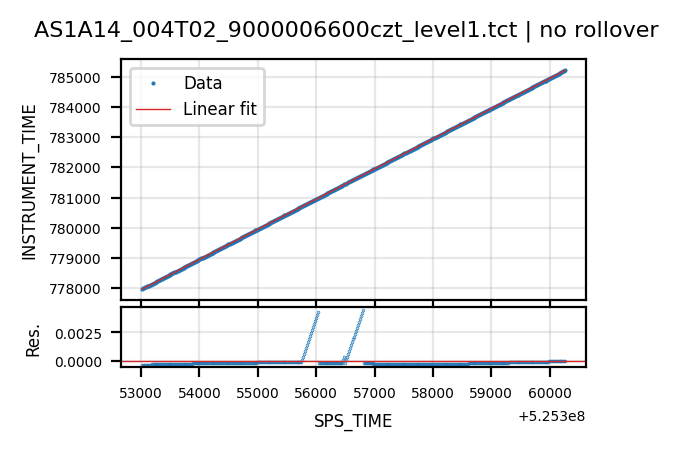

| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
