| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59040cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59040cztM0_level2_quad_clean.evt |
| Size (bytes) | 925,364,160 | 96,281,280 |
| Size | 882.5 MB | 91.8 MB |
| Events in quadrant A | 4,290,907 | 748,686 |
| Events in quadrant B | 5,332,517 | 763,534 |
| Events in quadrant C | 7,581,832 | 682,367 |
| Events in quadrant D | 16,443,352 | 177,275 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17866 | 1 |
| B | 0 | 21253 | 0 |
| C | 0 | 27935 | 0 |
| D | 0 | 54121 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7811 | 131 | 1.677122% |
| B | 7812 | 592 | 7.578085% |
| C | 7812 | 706 | 9.037378% |
| D | 7812 | 5833 | 74.667179% |

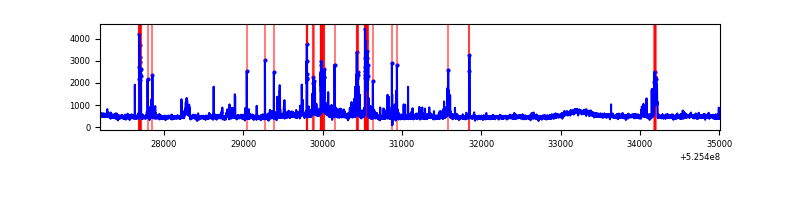

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7811 | 7811 | 87 | 87 | 1.11% | 1.11% |  |
| B | 7812 | 7812 | 362 | 362 | 4.63% | 4.63% |  |
| C | 7812 | 7812 | 568 | 568 | 7.27% | 7.27% |  |
| D | 7811 | 7811 | 5181 | 5181 | 66.33% | 66.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 24 | 278224 | 1302.45 | 870 | 847 | 213.0 |
| A | 15 | 233 | 264615 | 1238.55 | 870 | 847 | 213.0 |
| A | 10 | 251 | 171429 | 800.98 | 870 | 847 | 213.0 |
| B | 4 | 236 | 766127 | 4282.69 | 840 | 808 | 178.7 |
| B | 2 | 249 | 691863 | 3867.11 | 840 | 808 | 178.7 |
| B | 4 | 171 | 185931 | 1035.94 | 840 | 808 | 178.7 |
| C | 15 | 219 | 3943933 | 17410.76 | 826 | 817 | 226.5 |
| C | 12 | 252 | 235905 | 1038.03 | 826 | 817 | 226.5 |
| C | 4 | 5 | 97568 | 427.2 | 826 | 817 | 226.5 |
| D | 12 | 1 | 14826012 | 150773.57 | 344 | 328 | 98.3 |
| D | 2 | 120 | 58929 | 595.96 | 344 | 328 | 98.3 |
| D | 2 | 31 | 53338 | 539.1 | 344 | 328 | 98.3 |

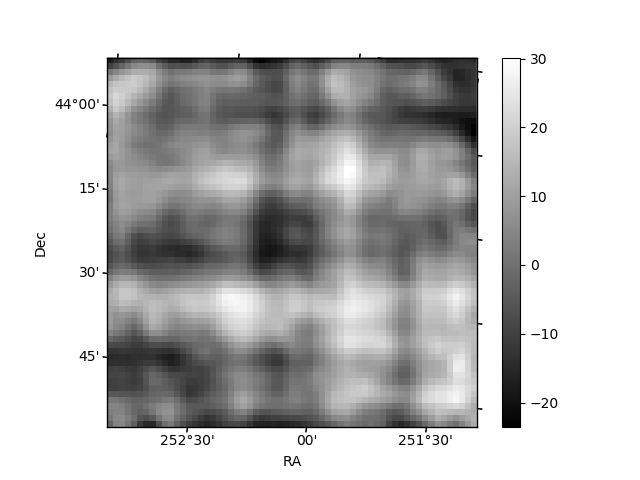

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

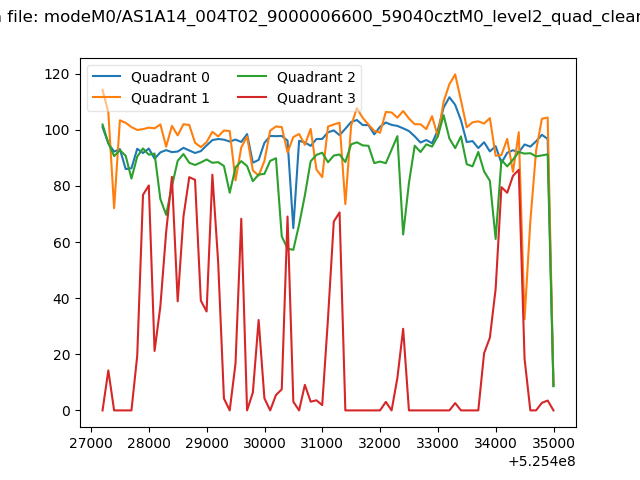

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

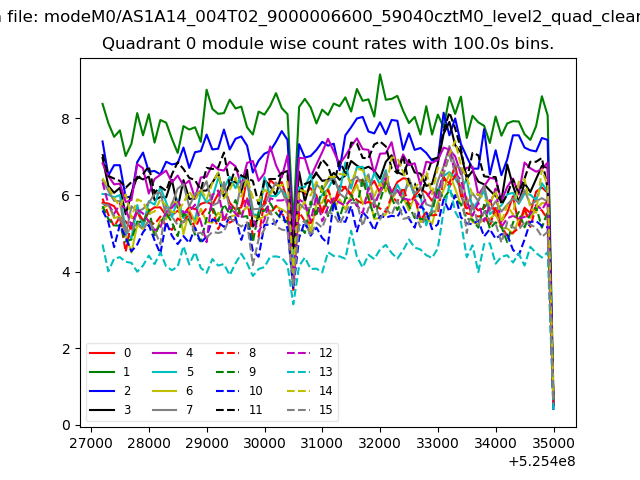

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

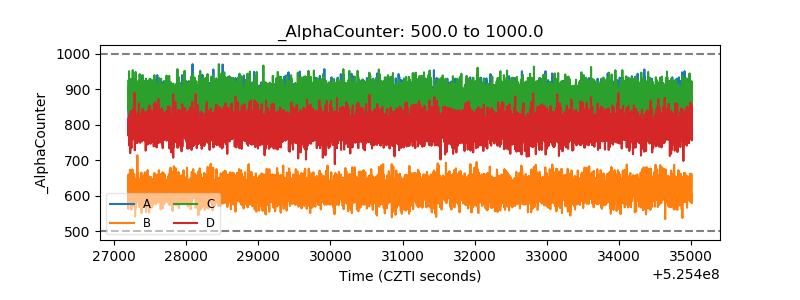

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

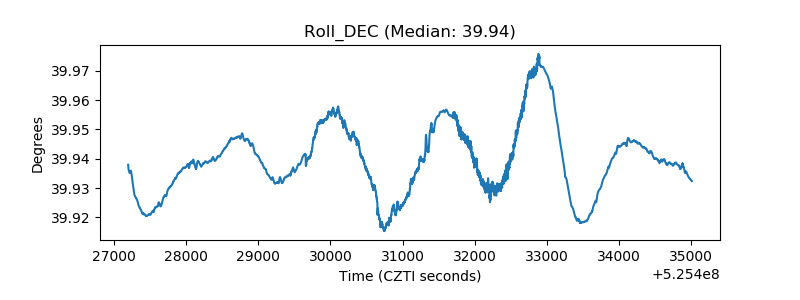

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

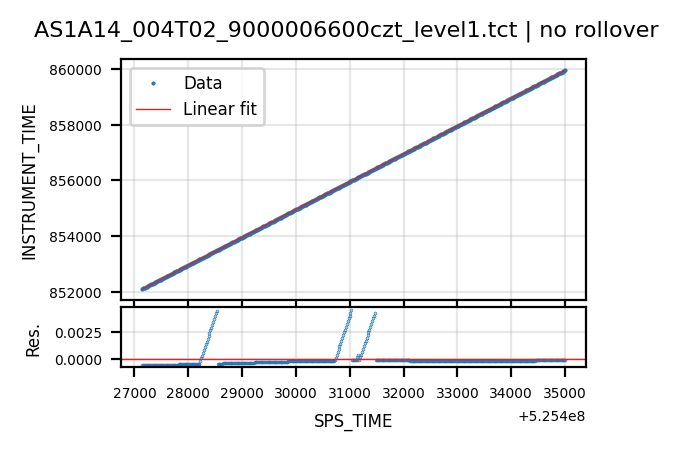

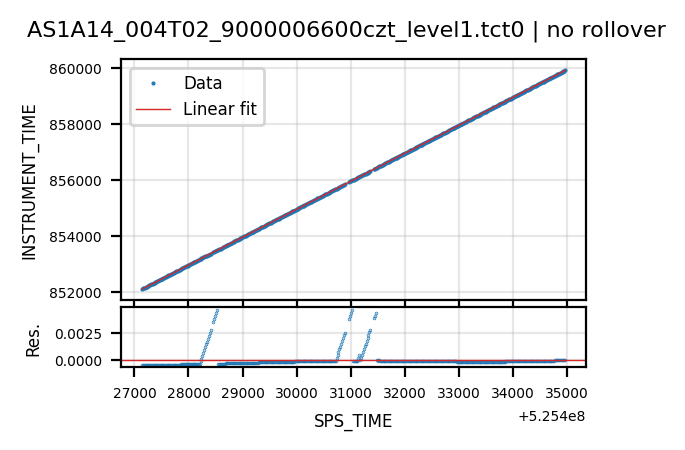

| Tct |  |  |
