| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59041cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59041cztM0_level2_quad_clean.evt |
| Size (bytes) | 989,190,720 | 81,794,880 |
| Size | 943.4 MB | 78.0 MB |
| Events in quadrant A | 5,277,696 | 699,241 |
| Events in quadrant B | 4,650,282 | 728,060 |
| Events in quadrant C | 9,268,816 | 413,449 |
| Events in quadrant D | 16,851,148 | 124,863 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20625 | 0 |
| B | 0 | 18921 | 0 |
| C | 0 | 32650 | 0 |
| D | 0 | 55003 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7338 | 229 | 3.120741% |
| B | 7339 | 414 | 5.641096% |
| C | 7339 | 3045 | 41.490666% |
| D | 7339 | 6001 | 81.768633% |

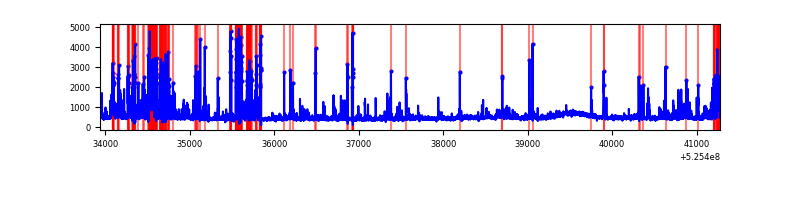

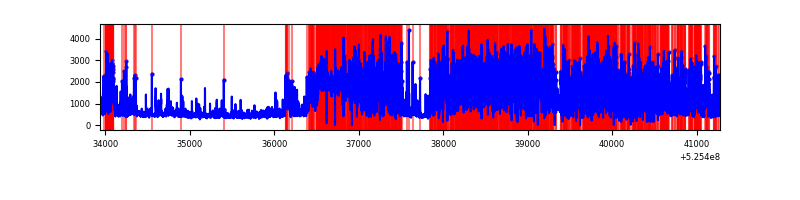

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7338 | 7338 | 140 | 140 | 1.91% | 1.91% |  |
| B | 7339 | 7339 | 256 | 256 | 3.49% | 3.49% |  |
| C | 7339 | 7339 | 1508 | 1508 | 20.55% | 20.55% |  |
| D | 7339 | 7339 | 5603 | 5603 | 76.35% | 76.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 1269155 | 6323.51 | 815 | 793 | 200.6 |
| A | 14 | 238 | 422064 | 2100.28 | 815 | 793 | 200.6 |
| A | 10 | 251 | 120966 | 599.13 | 815 | 793 | 200.6 |
| B | 4 | 236 | 516677 | 3030.18 | 791 | 762 | 170.3 |
| B | 2 | 249 | 448353 | 2628.88 | 791 | 762 | 170.3 |
| B | 4 | 171 | 149047 | 870.94 | 791 | 762 | 170.3 |
| C | 15 | 219 | 3460792 | 21147.01 | 592 | 587 | 163.6 |
| C | 15 | 198 | 3245407 | 19830.68 | 592 | 587 | 163.6 |
| C | 12 | 252 | 151774 | 923.98 | 592 | 587 | 163.6 |
| D | 12 | 1 | 14396191 | 160274.23 | 306 | 292 | 89.8 |
| D | 12 | 110 | 623574 | 6939.2 | 306 | 292 | 89.8 |
| D | 2 | 62 | 372007 | 4138.42 | 306 | 292 | 89.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

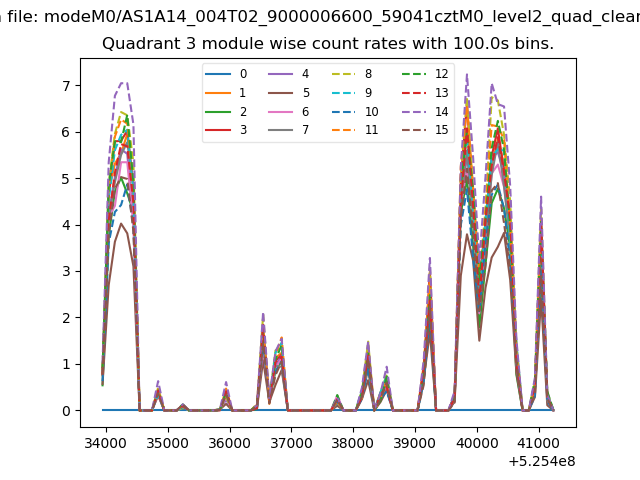

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

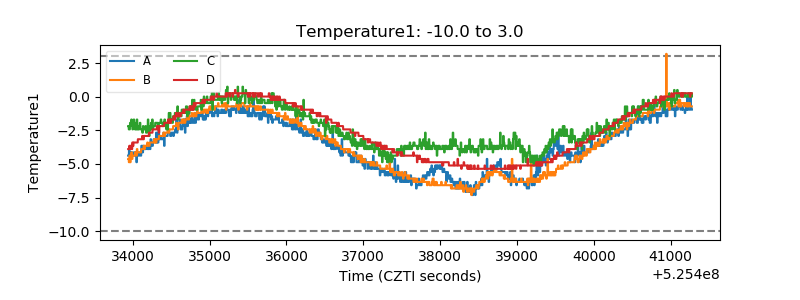

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

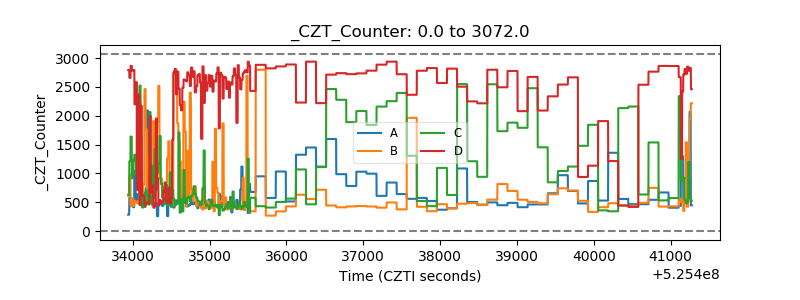

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

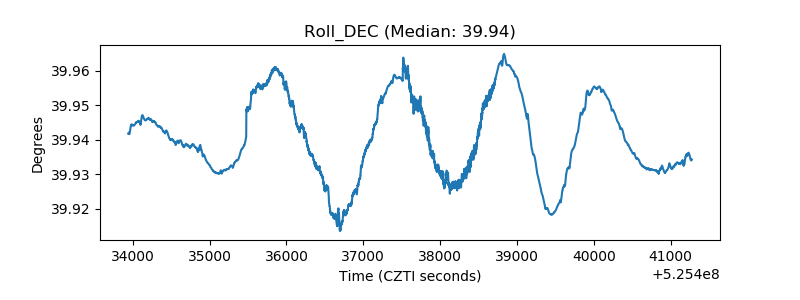

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

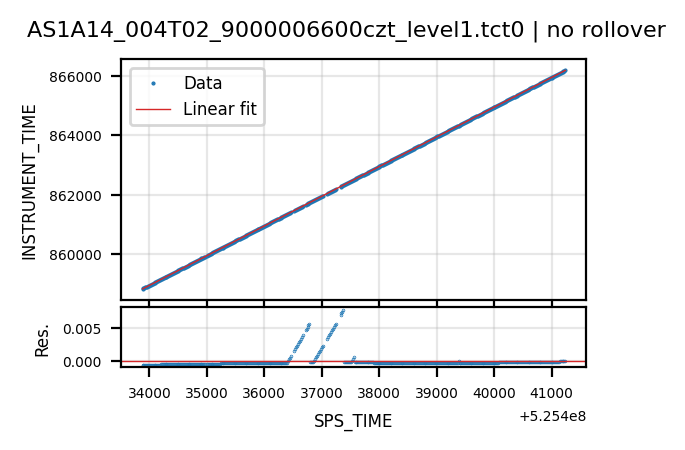

| Tct |  |  |
