| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59054cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59054cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,061,340,480 | 75,870,720 |
| Size | 1012.2 MB | 72.4 MB |
| Events in quadrant A | 7,724,549 | 514,526 |
| Events in quadrant B | 3,664,608 | 721,442 |
| Events in quadrant C | 9,907,658 | 521,768 |
| Events in quadrant D | 17,429,347 | 34,663 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27883 | 0 |
| B | 0 | 15980 | 0 |
| C | 0 | 34539 | 0 |
| D | 0 | 56737 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7249 | 2110 | 29.107463% |
| B | 7249 | 343 | 4.731687% |
| C | 7249 | 1837 | 25.341426% |
| D | 7248 | 6886 | 95.005519% |

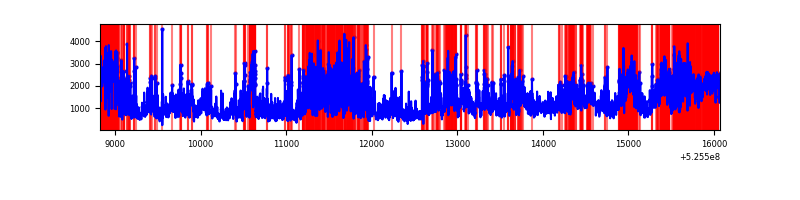

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7249 | 7249 | 1745 | 1745 | 24.07% | 24.07% |  |
| B | 7249 | 7249 | 39 | 39 | 0.54% | 0.54% |  |
| C | 7248 | 7248 | 1303 | 1303 | 17.98% | 17.98% |  |
| D | 7247 | 7247 | 6053 | 6053 | 83.52% | 83.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 4429240 | 26721.96 | 681 | 662 | 165.7 |
| A | 14 | 238 | 268291 | 1614.87 | 681 | 662 | 165.7 |
| A | 10 | 251 | 225508 | 1356.72 | 681 | 662 | 165.7 |
| B | 4 | 236 | 154783 | 887.61 | 807 | 777 | 173.5 |
| B | 0 | 186 | 110634 | 633.16 | 807 | 777 | 173.5 |
| B | 10 | 247 | 50442 | 286.24 | 807 | 777 | 173.5 |
| C | 15 | 219 | 4094856 | 21334.13 | 700 | 693 | 191.9 |
| C | 15 | 198 | 1334247 | 6948.97 | 700 | 693 | 191.9 |
| C | 2 | 12 | 868144 | 4520.17 | 700 | 693 | 191.9 |
| D | 12 | 1 | 16182571 | 286789.14 | 193 | 184 | 56.4 |
| D | 6 | 239 | 225427 | 3991.82 | 193 | 184 | 56.4 |
| D | 2 | 62 | 117614 | 2081.13 | 193 | 184 | 56.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

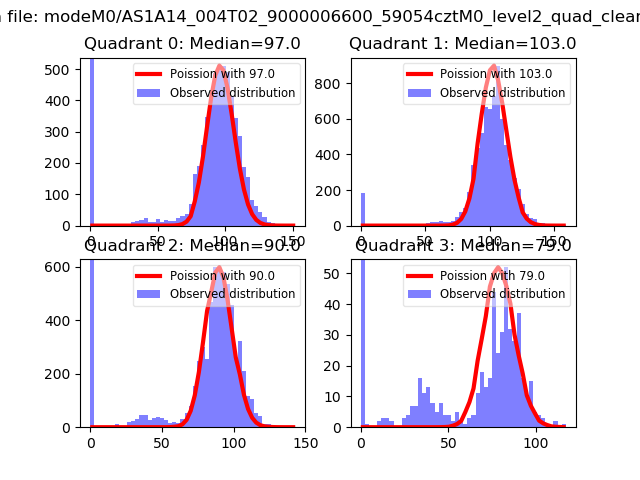

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

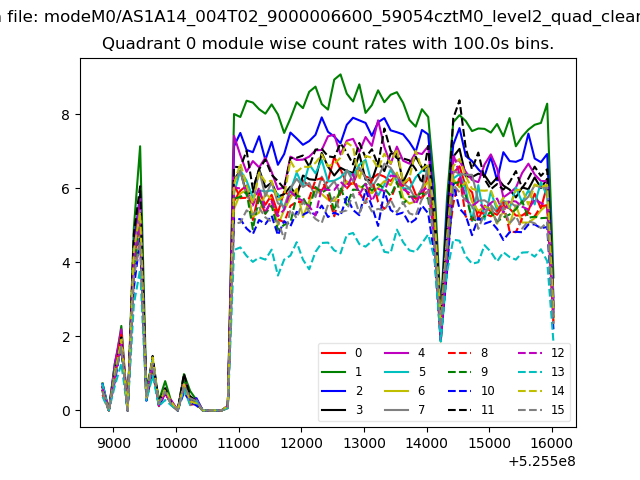

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

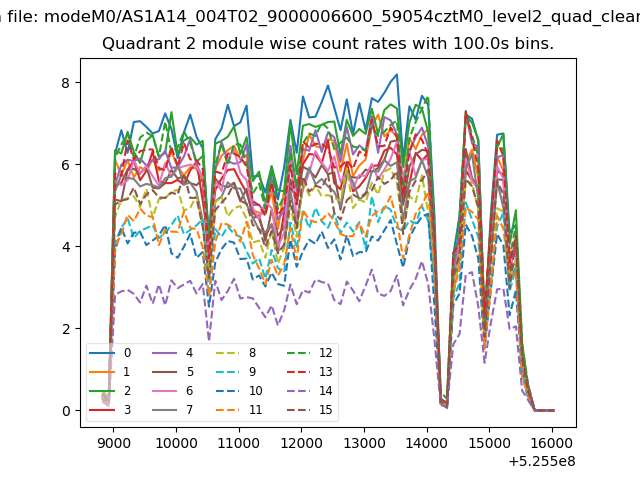

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

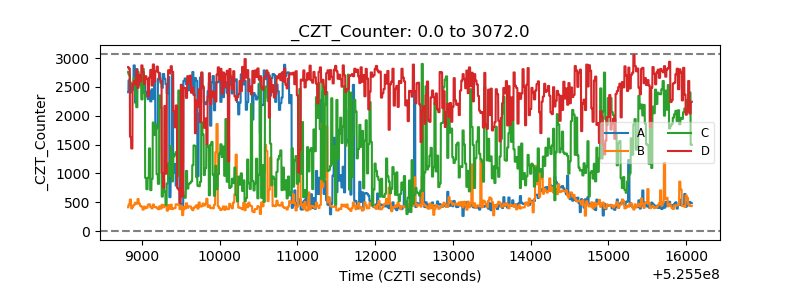

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

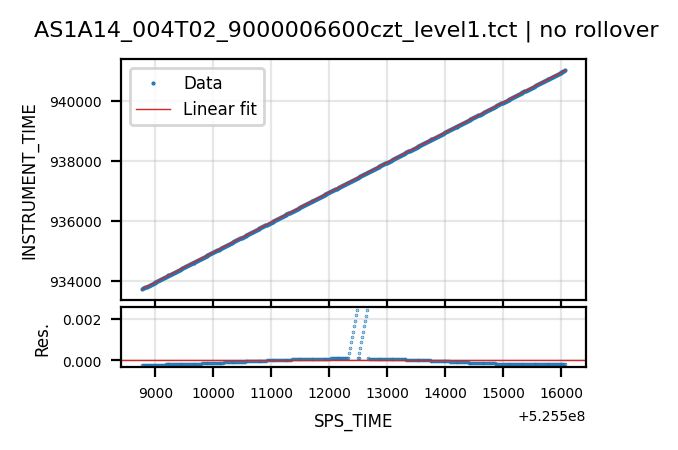

| Tct |  |  |
