| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59069cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59069cztM0_level2_quad_clean.evt |
| Size (bytes) | 861,232,320 | 88,257,600 |
| Size | 821.3 MB | 84.2 MB |
| Events in quadrant A | 3,458,871 | 712,981 |
| Events in quadrant B | 3,789,626 | 753,476 |
| Events in quadrant C | 4,658,763 | 651,094 |
| Events in quadrant D | 19,396,614 | 38,742 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15723 | 0 |
| B | 0 | 16435 | 0 |
| C | 0 | 19127 | 0 |
| D | 0 | 62563 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7414 | 42 | 0.566496% |
| B | 7415 | 166 | 2.238705% |
| C | 7415 | 412 | 5.556305% |
| D | 7415 | 7022 | 94.699933% |

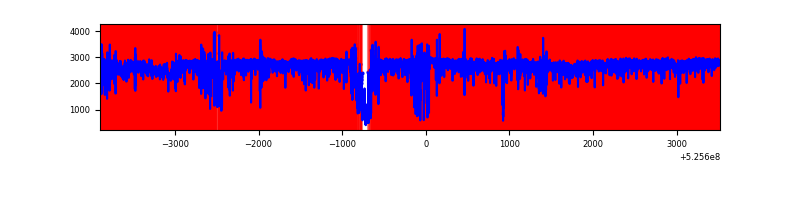

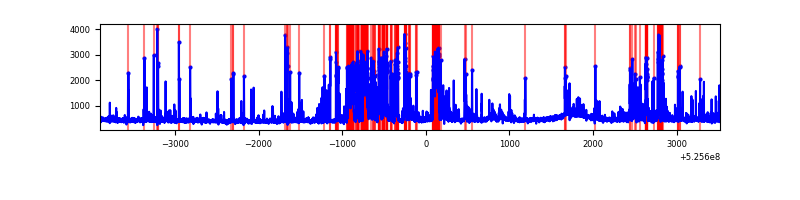

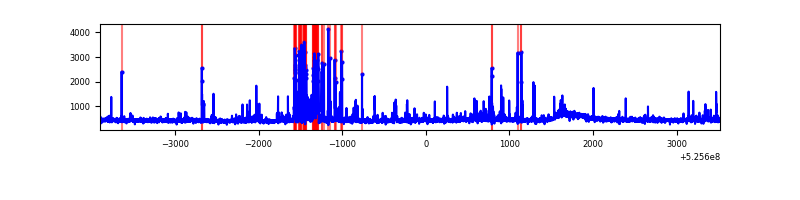

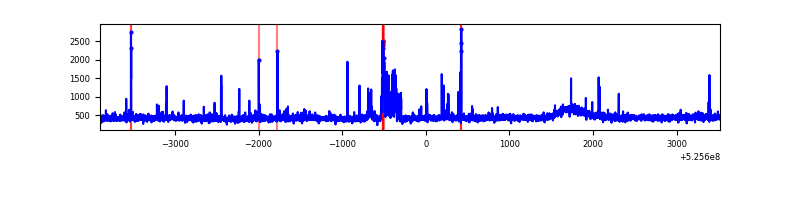

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7414 | 7414 | 14 | 14 | 0.19% | 0.19% |  |
| B | 7415 | 7415 | 75 | 75 | 1.01% | 1.01% |  |
| C | 7415 | 7415 | 322 | 322 | 4.34% | 4.34% |  |
| D | 7414 | 7414 | 6975 | 6975 | 94.08% | 94.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 138258 | 682.49 | 823 | 799 | 201.4 |
| A | 10 | 251 | 68738 | 337.32 | 823 | 799 | 201.4 |
| A | 9 | 239 | 26022 | 125.23 | 823 | 799 | 201.4 |
| B | 4 | 171 | 344246 | 1953.33 | 811 | 780 | 175.8 |
| B | 5 | 185 | 48810 | 273.15 | 811 | 780 | 175.8 |
| B | 0 | 186 | 44567 | 249.02 | 811 | 780 | 175.8 |
| C | 15 | 198 | 1172647 | 5499.34 | 779 | 771 | 213.1 |
| C | 12 | 252 | 179862 | 840.43 | 779 | 771 | 213.1 |
| C | 6 | 13 | 54158 | 250.53 | 779 | 771 | 213.1 |
| D | 12 | 1 | 17613976 | 272783.64 | 219 | 207 | 64.6 |
| D | 2 | 62 | 423315 | 6552.65 | 219 | 207 | 64.6 |
| D | 6 | 239 | 315740 | 4886.65 | 219 | 207 | 64.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

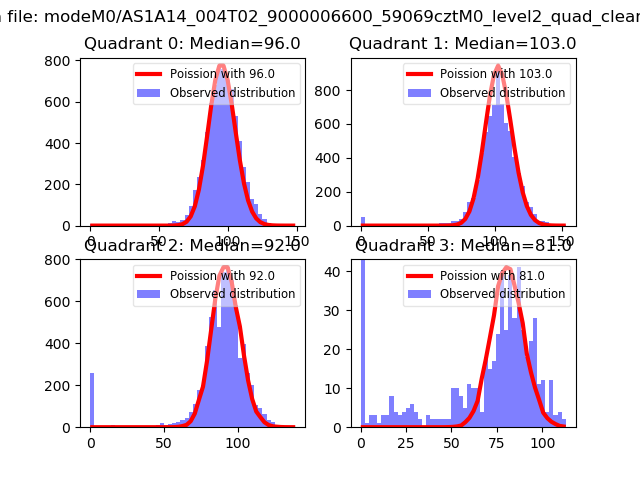

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

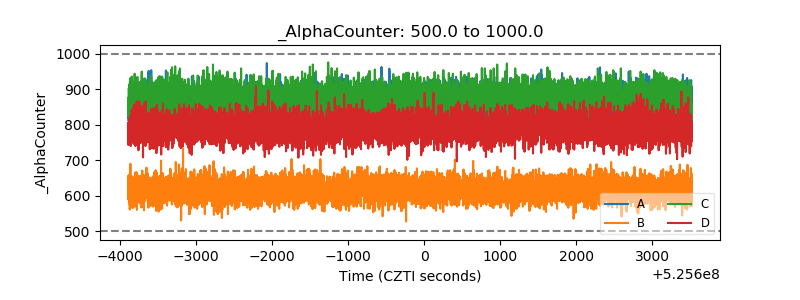

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

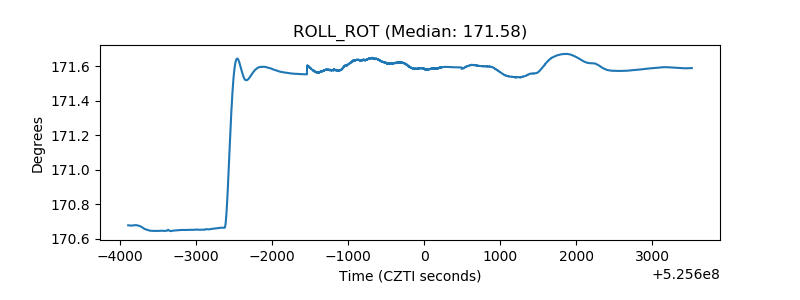

| _ROLL_ROT |  |

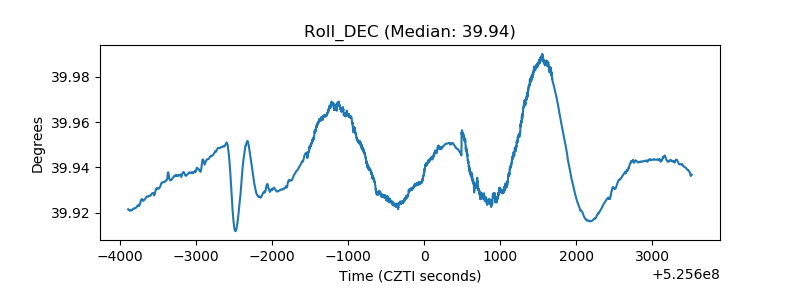

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
