| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59083cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59083cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,011,608,640 | 91,814,400 |
| Size | 964.7 MB | 87.6 MB |
| Events in quadrant A | 4,980,754 | 759,001 |
| Events in quadrant B | 6,984,163 | 750,760 |
| Events in quadrant C | 4,400,217 | 702,254 |
| Events in quadrant D | 20,479,128 | 27,215 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20076 | 1 |
| B | 0 | 26075 | 1 |
| C | 0 | 18574 | 1 |
| D | 0 | 65942 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7772 | 256 | 3.293875% |
| B | 7773 | 916 | 11.784382% |
| C | 7773 | 355 | 4.567091% |
| D | 7773 | 7531 | 96.886659% |

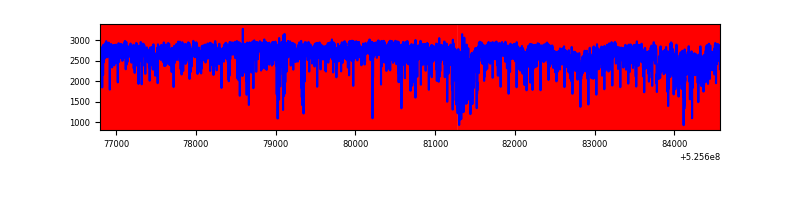

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7772 | 7772 | 95 | 95 | 1.22% | 1.22% |  |
| B | 7773 | 7773 | 479 | 479 | 6.16% | 6.16% |  |
| C | 7773 | 7773 | 179 | 179 | 2.30% | 2.30% |  |
| D | 7772 | 7772 | 7487 | 7487 | 96.33% | 96.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 24 | 1056929 | 4843.42 | 883 | 859 | 218.0 |
| A | 13 | 248 | 210895 | 963.28 | 883 | 859 | 218.0 |
| A | 3 | 14 | 82372 | 373.84 | 883 | 859 | 218.0 |
| B | 10 | 128 | 2631178 | 14519.47 | 851 | 817 | 181.2 |
| B | 5 | 236 | 507788 | 2798.46 | 851 | 817 | 181.2 |
| B | 4 | 236 | 135894 | 745.62 | 851 | 817 | 181.2 |
| C | 15 | 198 | 655860 | 2858.39 | 838 | 830 | 229.2 |
| C | 4 | 5 | 230563 | 1002.5 | 838 | 830 | 229.2 |
| C | 6 | 223 | 106408 | 460.72 | 838 | 830 | 229.2 |
| D | 12 | 1 | 17316275 | 276787.07 | 210 | 200 | 62.6 |
| D | 2 | 62 | 1613034 | 25780.18 | 210 | 200 | 62.6 |
| D | 2 | 207 | 349757 | 5587.46 | 210 | 200 | 62.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

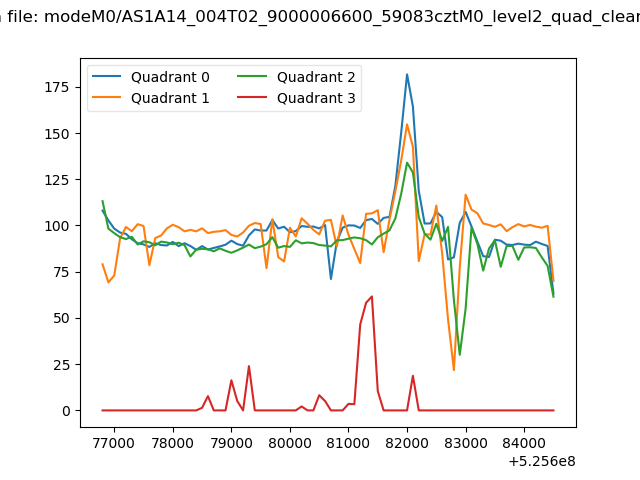

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

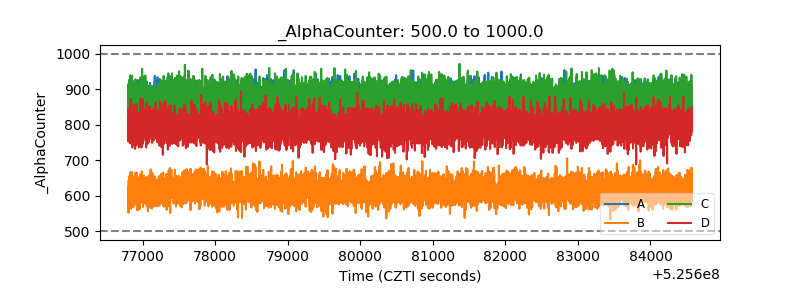

| Alpha Counter |  |

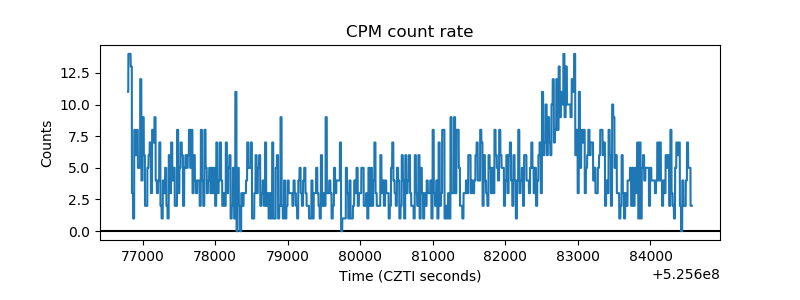

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

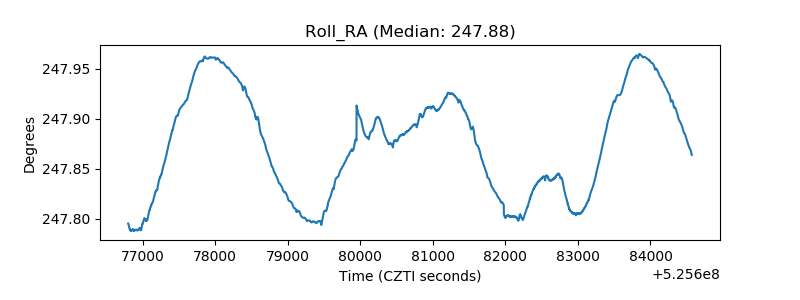

| _Roll_RA |  |

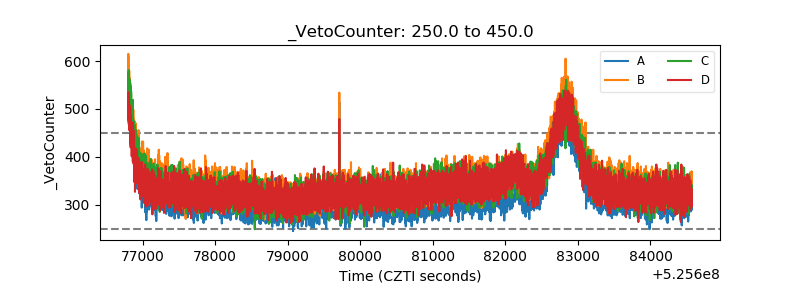

| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

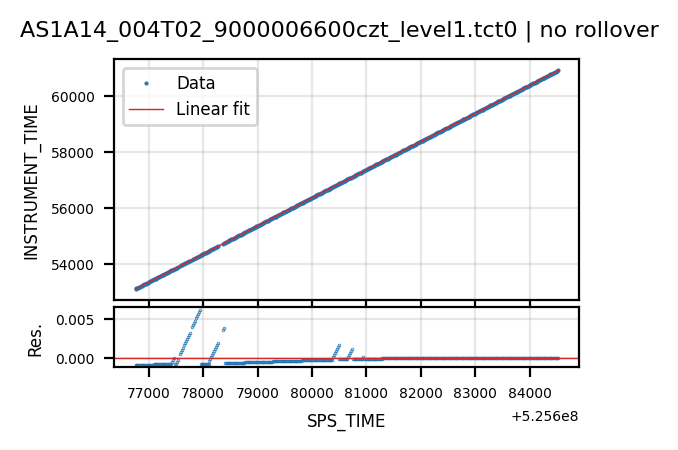

| Tct |  |  |
