| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59084cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59084cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,064,833,920 | 87,117,120 |
| Size | 1015.5 MB | 83.1 MB |
| Events in quadrant A | 4,549,785 | 747,045 |
| Events in quadrant B | 6,872,910 | 722,973 |
| Events in quadrant C | 7,416,971 | 569,464 |
| Events in quadrant D | 19,965,874 | 49,509 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18791 | 0 |
| B | 0 | 25754 | 0 |
| C | 0 | 27665 | 0 |
| D | 0 | 64666 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7888 | 120 | 1.521298% |
| B | 7888 | 989 | 12.538032% |
| C | 7888 | 1801 | 22.832150% |
| D | 7889 | 7371 | 93.433895% |

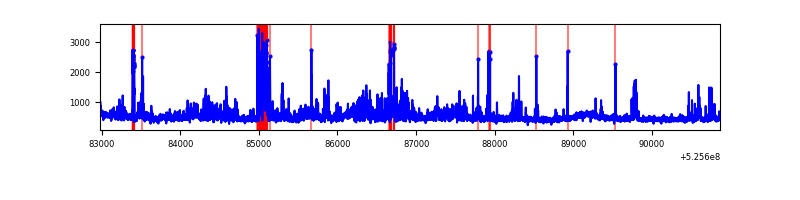

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7888 | 7888 | 95 | 95 | 1.20% | 1.20% |  |
| B | 7888 | 7888 | 655 | 655 | 8.30% | 8.30% |  |
| C | 7888 | 7888 | 1253 | 1253 | 15.88% | 15.88% |  |
| D | 7889 | 7889 | 7249 | 7249 | 91.89% | 91.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 24 | 521488 | 2441.24 | 869 | 845 | 213.3 |
| A | 13 | 248 | 288639 | 1349.44 | 869 | 845 | 213.3 |
| A | 3 | 14 | 122332 | 569.64 | 869 | 845 | 213.3 |
| B | 10 | 128 | 1958090 | 10975.23 | 830 | 797 | 178.3 |
| B | 5 | 236 | 731470 | 4097.14 | 830 | 797 | 178.3 |
| B | 4 | 171 | 521706 | 2920.92 | 830 | 797 | 178.3 |
| C | 15 | 198 | 4006773 | 19701.97 | 742 | 733 | 203.3 |
| C | 3 | 233 | 225412 | 1104.99 | 742 | 733 | 203.3 |
| C | 6 | 223 | 119592 | 584.56 | 742 | 733 | 203.3 |
| D | 12 | 1 | 17147787 | 307115.82 | 186 | 176 | 55.8 |
| D | 2 | 62 | 968883 | 17349.66 | 186 | 176 | 55.8 |
| D | 12 | 110 | 658999 | 11799.6 | 186 | 176 | 55.8 |

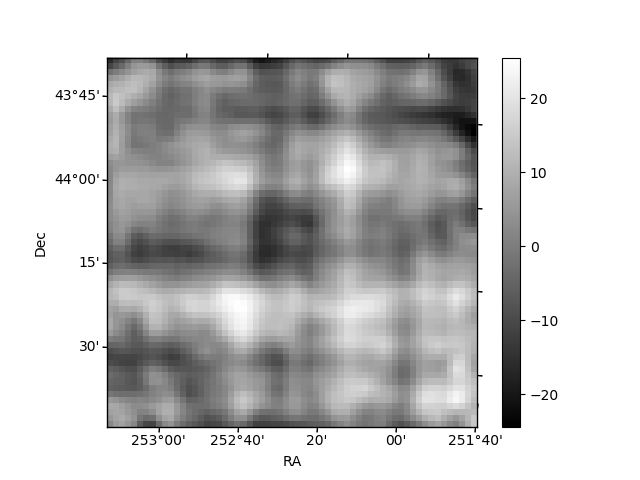

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

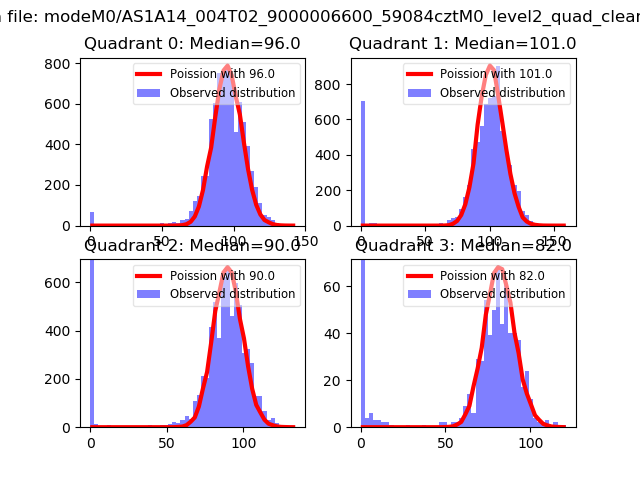

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

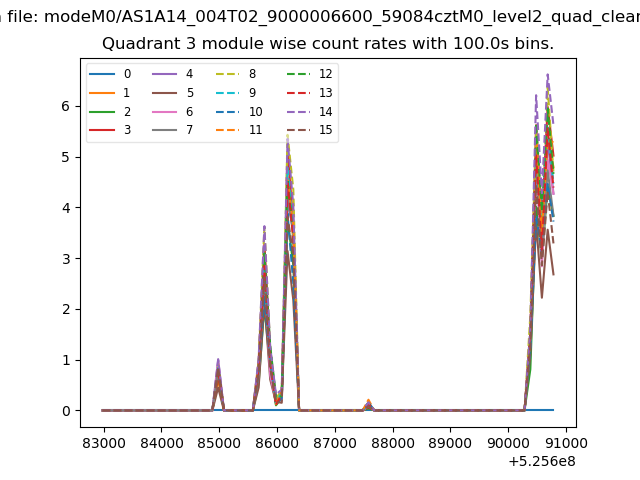

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

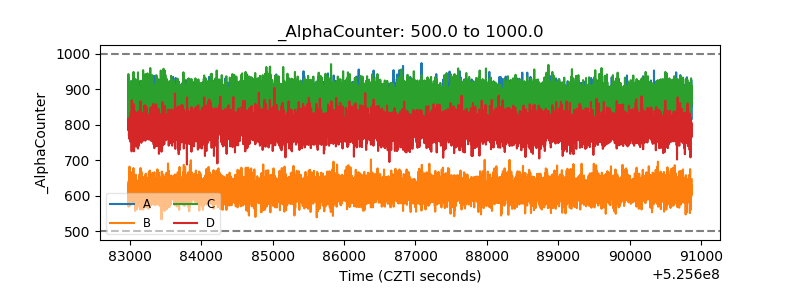

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

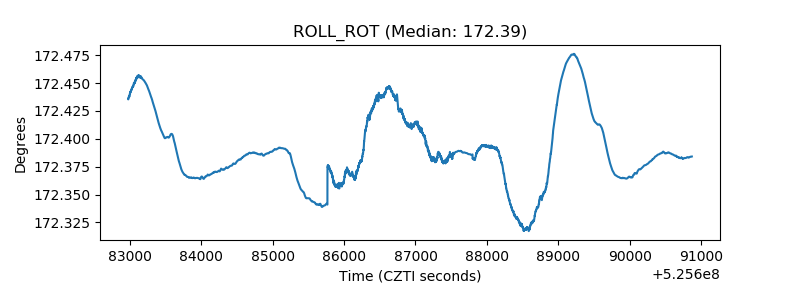

| _ROLL_ROT |  |
| _Roll_DEC |  |

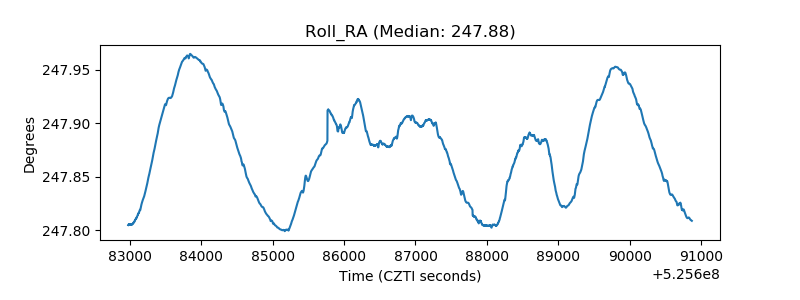

| _Roll_RA |  |

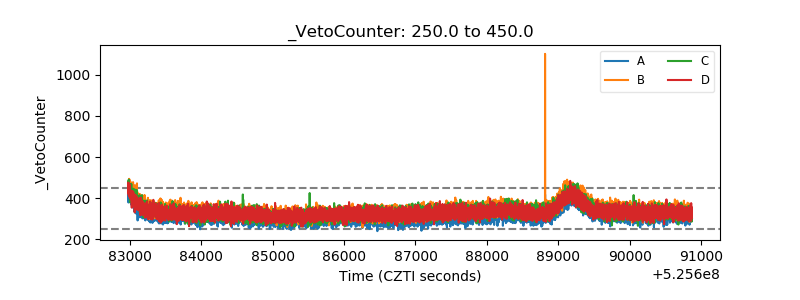

| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
