| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59085cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59085cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,007,392,320 | 74,381,760 |
| Size | 960.7 MB | 70.9 MB |
| Events in quadrant A | 3,587,033 | 688,508 |
| Events in quadrant B | 5,940,482 | 676,315 |
| Events in quadrant C | 9,779,207 | 346,397 |
| Events in quadrant D | 17,434,913 | 47,681 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15458 | 0 |
| B | 0 | 22340 | 0 |
| C | 0 | 33940 | 0 |
| D | 0 | 56699 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7077 | 49 | 0.692384% |
| B | 7077 | 683 | 9.650982% |
| C | 7077 | 3450 | 48.749470% |
| D | 7078 | 6577 | 92.921729% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7077 | 7077 | 31 | 31 | 0.44% | 0.44% |  |
| B | 7077 | 7077 | 549 | 549 | 7.76% | 7.76% |  |
| C | 7077 | 7077 | 2104 | 2104 | 29.73% | 29.73% |  |
| D | 7078 | 7078 | 6292 | 6292 | 88.90% | 88.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 24 | 158587 | 800.8 | 793 | 773 | 197.1 |
| A | 10 | 251 | 103532 | 521.43 | 793 | 773 | 197.1 |
| A | 13 | 248 | 89836 | 451.93 | 793 | 773 | 197.1 |
| B | 10 | 128 | 1901815 | 11555.61 | 757 | 728 | 164.5 |
| B | 4 | 236 | 270234 | 1638.17 | 757 | 728 | 164.5 |
| B | 5 | 236 | 209837 | 1271.05 | 757 | 728 | 164.5 |
| C | 15 | 198 | 6995476 | 46488.28 | 547 | 543 | 150.5 |
| C | 3 | 233 | 261563 | 1734.74 | 547 | 543 | 150.5 |
| C | 6 | 223 | 241638 | 1602.32 | 547 | 543 | 150.5 |
| D | 12 | 1 | 11390416 | 194041.38 | 200 | 190 | 58.7 |
| D | 12 | 110 | 4762659 | 81132.37 | 200 | 190 | 58.7 |
| D | 6 | 239 | 191913 | 3266.15 | 200 | 190 | 58.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

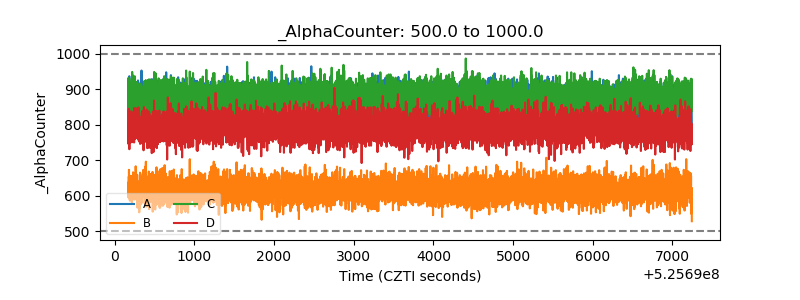

| Alpha Counter |  |
| _CPM_Rate |  |

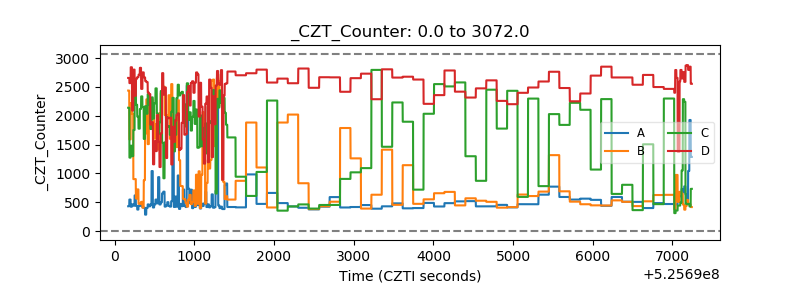

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

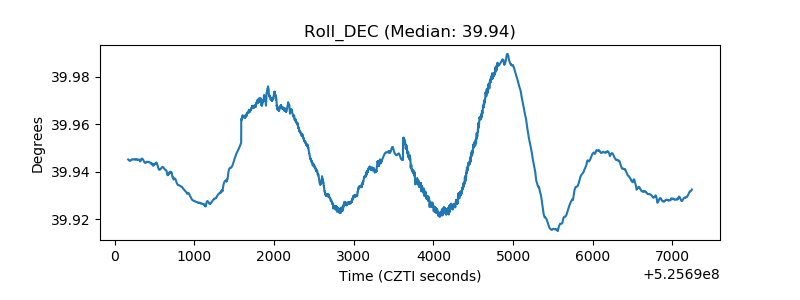

| _Roll_DEC |  |

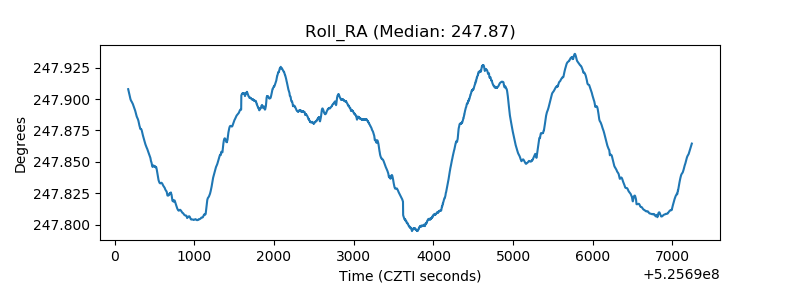

| _Roll_RA |  |

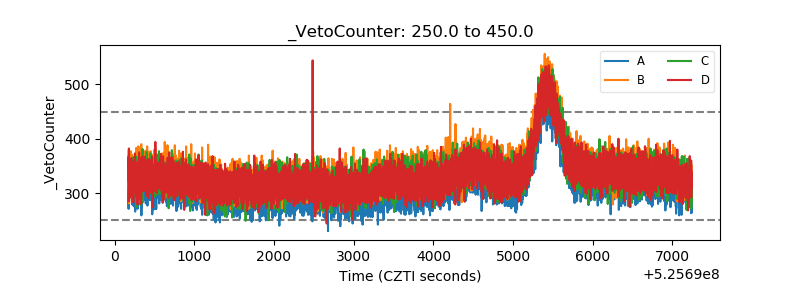

| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
