| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59099cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59099cztM0_level2_quad_clean.evt |
| Size (bytes) | 836,706,240 | 94,919,040 |
| Size | 797.9 MB | 90.5 MB |
| Events in quadrant A | 3,699,071 | 753,661 |
| Events in quadrant B | 3,924,920 | 805,580 |
| Events in quadrant C | 3,852,760 | 721,674 |
| Events in quadrant D | 18,879,933 | 43,293 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16605 | 0 |
| B | 0 | 17104 | 0 |
| C | 0 | 17040 | 0 |
| D | 0 | 61461 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7907 | 25 | 0.316176% |
| B | 7908 | 72 | 0.910470% |
| C | 7907 | 55 | 0.695586% |
| D | 7907 | 7486 | 94.675604% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7907 | 7907 | 13 | 13 | 0.16% | 0.16% |  |
| B | 7908 | 7908 | 28 | 28 | 0.35% | 0.35% |  |
| C | 7907 | 7907 | 42 | 42 | 0.53% | 0.53% |  |
| D | 7907 | 7907 | 6098 | 6098 | 77.12% | 77.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 92651 | 430.06 | 869 | 844 | 213.5 |
| A | 0 | 24 | 90475 | 419.87 | 869 | 844 | 213.5 |
| A | 10 | 251 | 56670 | 261.51 | 869 | 844 | 213.5 |
| B | 0 | 186 | 223226 | 1213.71 | 858 | 824 | 183.2 |
| B | 4 | 236 | 68745 | 370.66 | 858 | 824 | 183.2 |
| B | 10 | 128 | 65215 | 351.4 | 858 | 824 | 183.2 |
| C | 12 | 252 | 240282 | 1041.36 | 841 | 833 | 229.9 |
| C | 15 | 198 | 163108 | 705.73 | 841 | 833 | 229.9 |
| C | 14 | 254 | 42114 | 179.53 | 841 | 833 | 229.9 |
| D | 12 | 1 | 17428855 | 292555.63 | 200 | 190 | 59.6 |
| D | 4 | 206 | 174235 | 2921.5 | 200 | 190 | 59.6 |
| D | 2 | 249 | 116711 | 1955.91 | 200 | 190 | 59.6 |

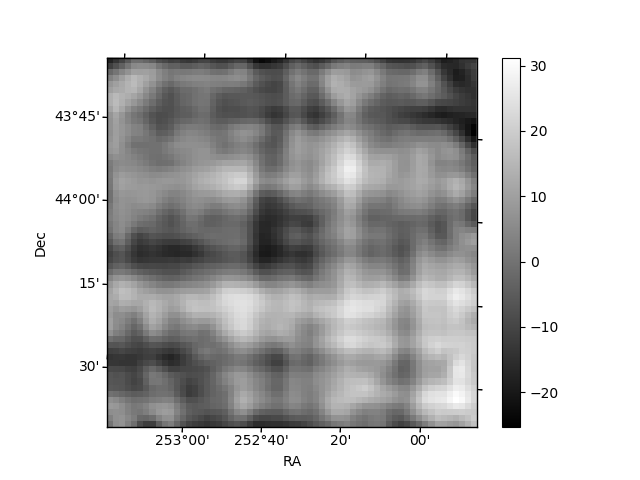

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

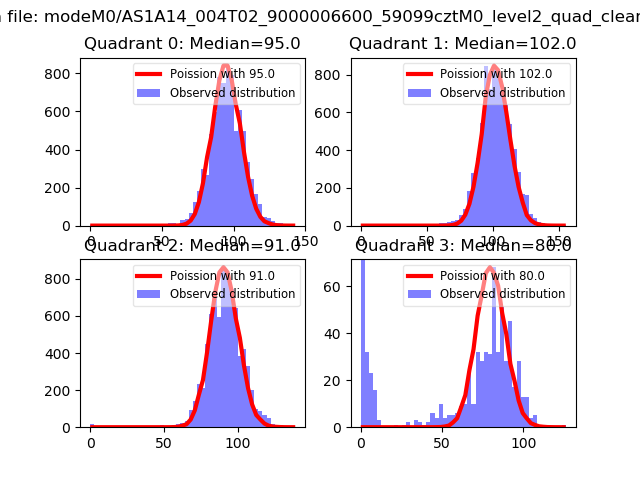

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

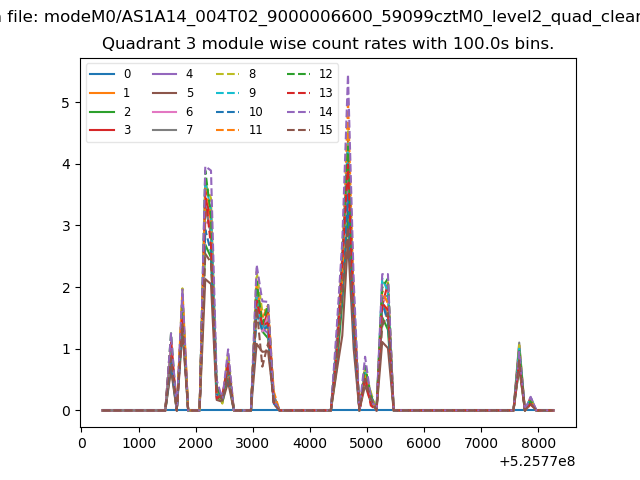

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

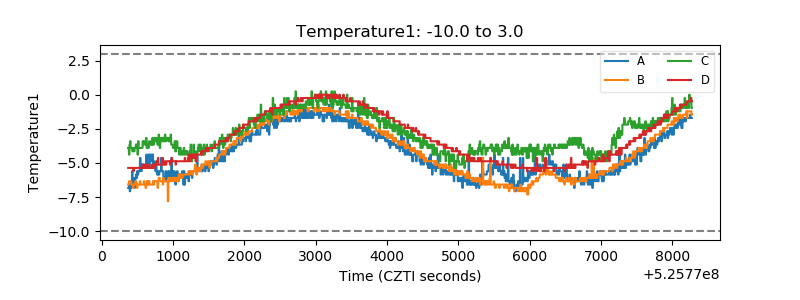

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

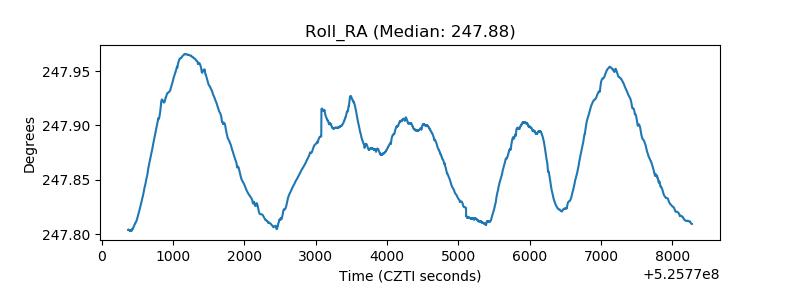

| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

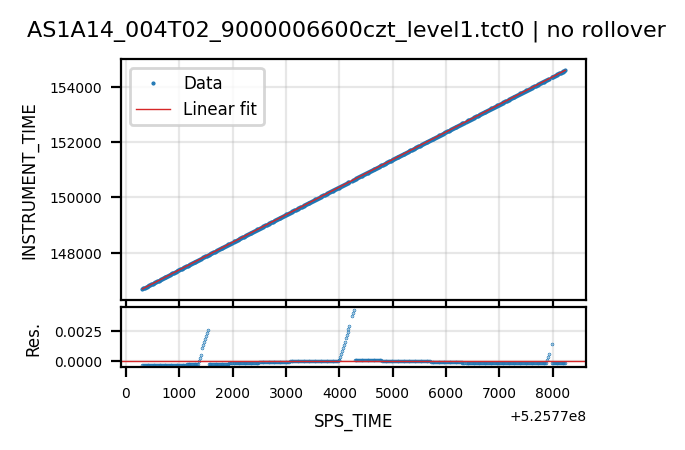

| Tct |  |  |
