| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59102cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59102cztM0_level2_quad_clean.evt |
| Size (bytes) | 965,180,160 | 74,430,720 |
| Size | 920.5 MB | 71.0 MB |
| Events in quadrant A | 3,653,298 | 719,951 |
| Events in quadrant B | 3,695,839 | 760,241 |
| Events in quadrant C | 10,966,407 | 249,105 |
| Events in quadrant D | 16,828,641 | 2,356 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15991 | 0 |
| B | 0 | 16186 | 0 |
| C | 0 | 37827 | 0 |
| D | 0 | 55047 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7495 | 92 | 1.227485% |
| B | 7496 | 170 | 2.267876% |
| C | 7496 | 4904 | 65.421558% |
| D | 7496 | 7473 | 99.693170% |

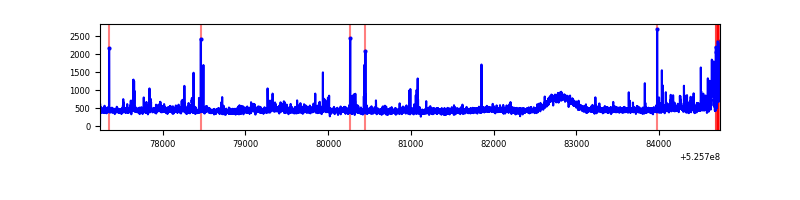

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7495 | 7495 | 14 | 14 | 0.19% | 0.19% |  |
| B | 7496 | 7496 | 24 | 24 | 0.32% | 0.32% |  |
| C | 7496 | 7496 | 1935 | 1935 | 25.81% | 25.81% |  |
| D | 7496 | 7496 | 5070 | 5070 | 67.64% | 67.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 24 | 157266 | 754.19 | 842 | 820 | 207.4 |
| A | 4 | 3 | 57684 | 274.13 | 842 | 820 | 207.4 |
| A | 3 | 14 | 51322 | 243.46 | 842 | 820 | 207.4 |
| B | 0 | 186 | 128571 | 717.23 | 827 | 796 | 178.2 |
| B | 10 | 128 | 46123 | 254.43 | 827 | 796 | 178.2 |
| B | 0 | 171 | 39012 | 214.51 | 827 | 796 | 178.2 |
| C | 15 | 198 | 8705435 | 67894.07 | 468 | 466 | 128.2 |
| C | 12 | 252 | 156462 | 1216.68 | 468 | 466 | 128.2 |
| C | 15 | 182 | 106426 | 826.43 | 468 | 466 | 128.2 |
| D | 12 | 1 | 16403473 | 755556.69 | 70 | 66 | 21.7 |
| D | 3 | 12 | 30385 | 1396.52 | 70 | 66 | 21.7 |
| D | 2 | 249 | 24223 | 1112.69 | 70 | 66 | 21.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

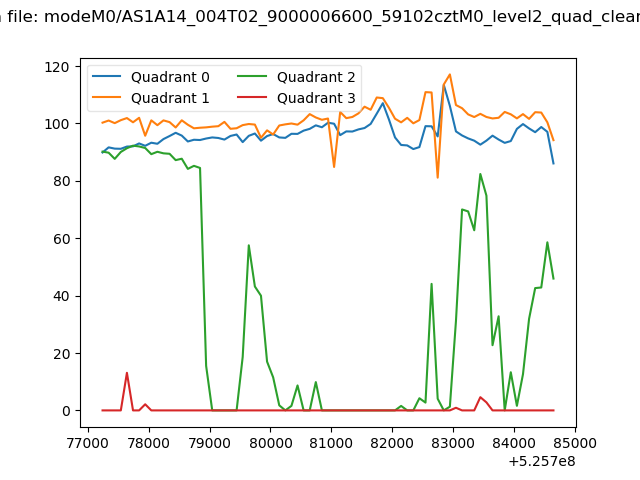

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

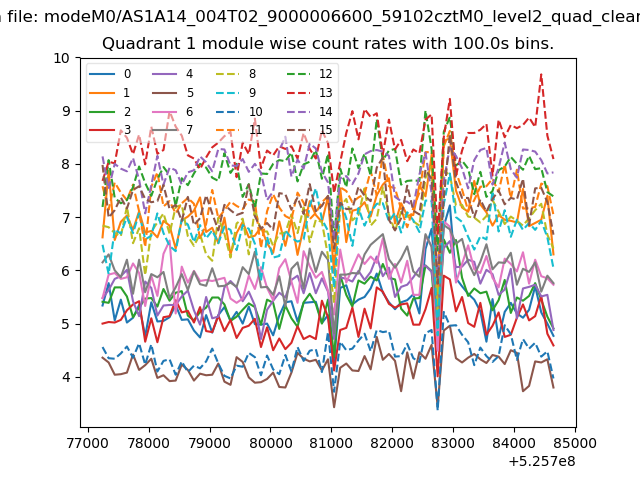

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

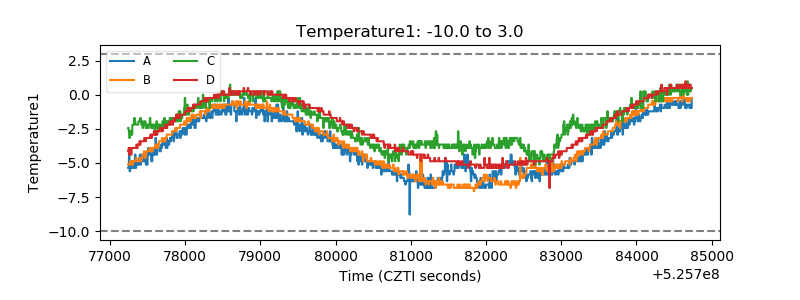

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

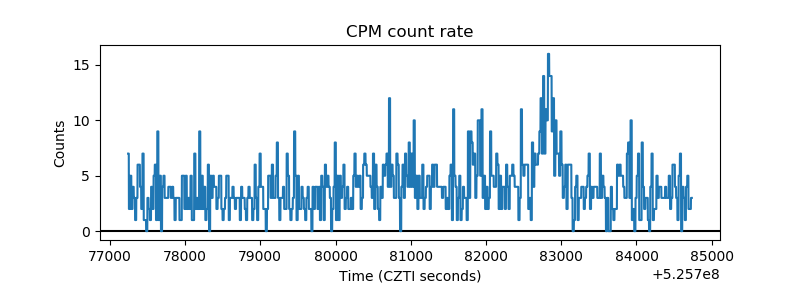

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

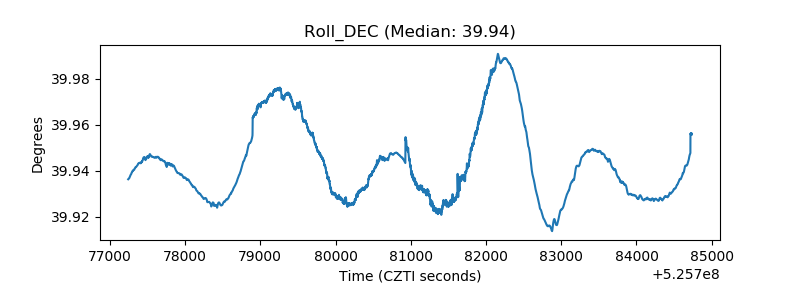

| _Roll_DEC |  |

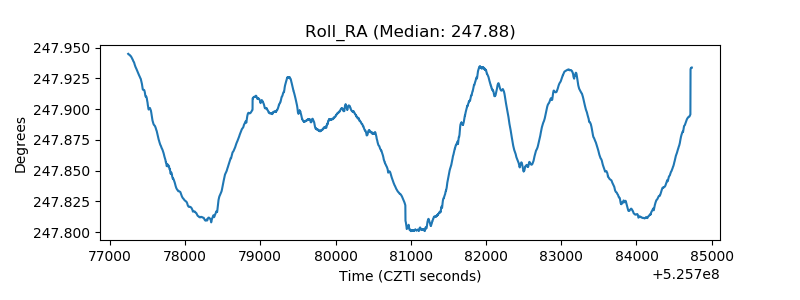

| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
