| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59112cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59112cztM0_level2_quad_clean.evt |
| Size (bytes) | 884,675,520 | 85,628,160 |
| Size | 843.7 MB | 81.7 MB |
| Events in quadrant A | 5,170,171 | 663,763 |
| Events in quadrant B | 3,803,664 | 717,116 |
| Events in quadrant C | 7,095,801 | 626,040 |
| Events in quadrant D | 16,107,052 | 73,900 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20711 | 0 |
| B | 0 | 16396 | 1 |
| C | 0 | 26326 | 0 |
| D | 0 | 52854 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7357 | 465 | 6.320511% |
| B | 7357 | 409 | 5.559331% |
| C | 7357 | 724 | 9.840968% |
| D | 7357 | 6500 | 88.351230% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7357 | 7357 | 78 | 78 | 1.06% | 1.06% |  |
| B | 7357 | 7357 | 39 | 39 | 0.53% | 0.53% |  |
| C | 7357 | 7357 | 372 | 372 | 5.06% | 5.06% |  |
| D | 7356 | 7356 | 4806 | 4806 | 65.33% | 65.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1625089 | 8042.2 | 815 | 792 | 202.0 |
| A | 10 | 251 | 324217 | 1601.34 | 815 | 792 | 202.0 |
| A | 13 | 248 | 21367 | 101.87 | 815 | 792 | 202.0 |
| B | 4 | 236 | 157866 | 910.42 | 811 | 775 | 172.5 |
| B | 10 | 128 | 124658 | 717.96 | 811 | 775 | 172.5 |
| B | 0 | 197 | 82760 | 475.14 | 811 | 775 | 172.5 |
| C | 3 | 233 | 2444496 | 11373.11 | 785 | 778 | 214.9 |
| C | 13 | 3 | 700047 | 3254.41 | 785 | 778 | 214.9 |
| C | 15 | 201 | 507854 | 2359.94 | 785 | 778 | 214.9 |
| D | 12 | 1 | 14624246 | 304826.94 | 163 | 156 | 48.0 |
| D | 12 | 110 | 412286 | 8590.51 | 163 | 156 | 48.0 |
| D | 6 | 239 | 289930 | 6040.1 | 163 | 156 | 48.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

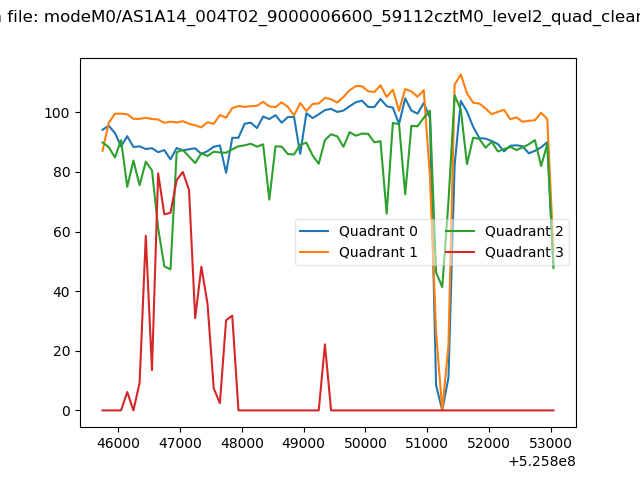

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

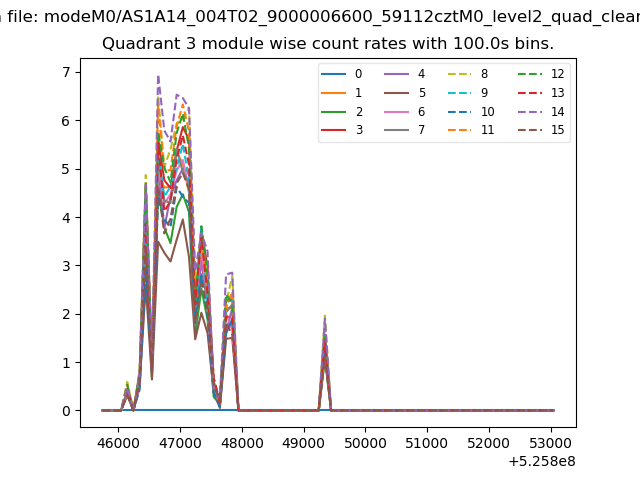

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

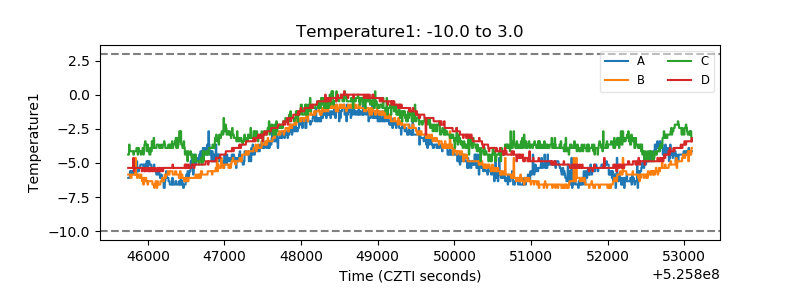

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

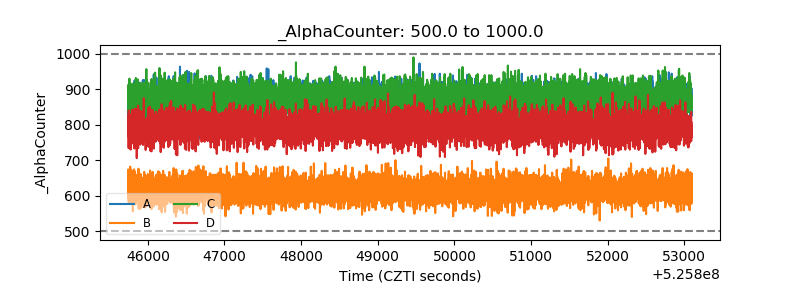

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

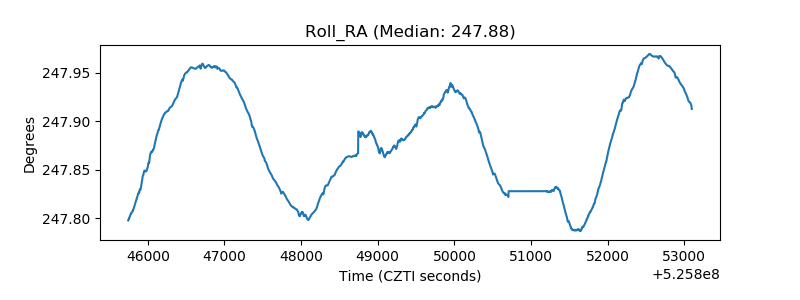

| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
