| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_004T02_9000006600_59113cztM0_level2.fits | modeM0/AS1A14_004T02_9000006600_59113cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,011,496,320 | 94,605,120 |
| Size | 964.6 MB | 90.2 MB |
| Events in quadrant A | 6,409,909 | 745,664 |
| Events in quadrant B | 4,067,340 | 804,895 |
| Events in quadrant C | 8,101,255 | 705,014 |
| Events in quadrant D | 18,231,298 | 41,685 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24836 | 0 |
| B | 0 | 17620 | 0 |
| C | 0 | 29785 | 0 |
| D | 0 | 59678 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8156 | 419 | 5.137322% |
| B | 8156 | 318 | 3.898970% |
| C | 8157 | 690 | 8.458992% |
| D | 8156 | 7727 | 94.740069% |

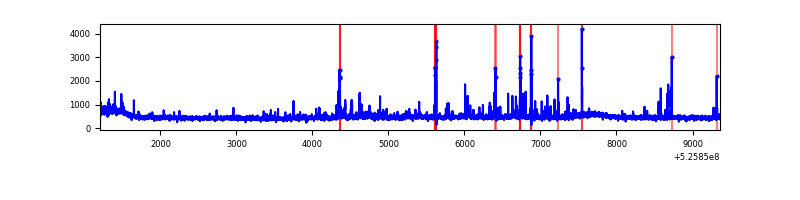

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8156 | 8156 | 108 | 108 | 1.32% | 1.32% |  |
| B | 8156 | 8156 | 23 | 23 | 0.28% | 0.28% |  |
| C | 8157 | 8157 | 472 | 472 | 5.79% | 5.79% |  |
| D | 8155 | 8155 | 5667 | 5667 | 69.49% | 69.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 2186328 | 9730.78 | 906 | 883 | 224.6 |
| A | 3 | 95 | 442050 | 1964.31 | 906 | 883 | 224.6 |
| A | 10 | 251 | 198910 | 881.72 | 906 | 883 | 224.6 |
| B | 5 | 185 | 106207 | 545.93 | 905 | 869 | 192.9 |
| B | 10 | 128 | 90491 | 464.48 | 905 | 869 | 192.9 |
| B | 0 | 197 | 72615 | 371.84 | 905 | 869 | 192.9 |
| C | 3 | 233 | 3872930 | 16174.31 | 878 | 870 | 239.4 |
| C | 15 | 201 | 239432 | 996.52 | 878 | 870 | 239.4 |
| C | 12 | 252 | 207084 | 861.39 | 878 | 870 | 239.4 |
| D | 12 | 1 | 16523640 | 362376.78 | 151 | 143 | 45.6 |
| D | 12 | 110 | 983081 | 21556.81 | 151 | 143 | 45.6 |
| D | 2 | 249 | 63499 | 1389.46 | 151 | 143 | 45.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

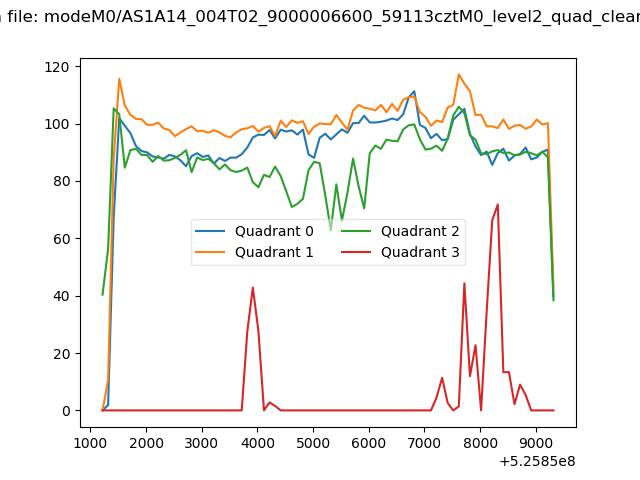

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

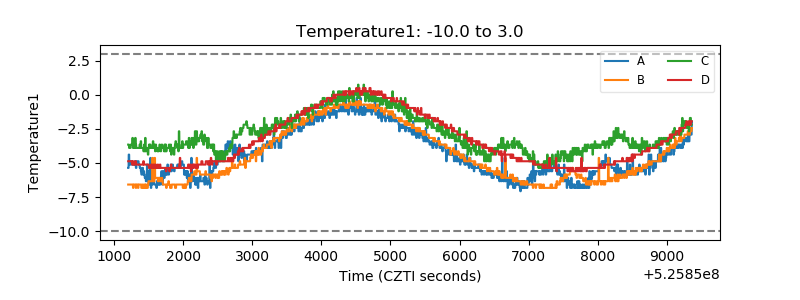

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

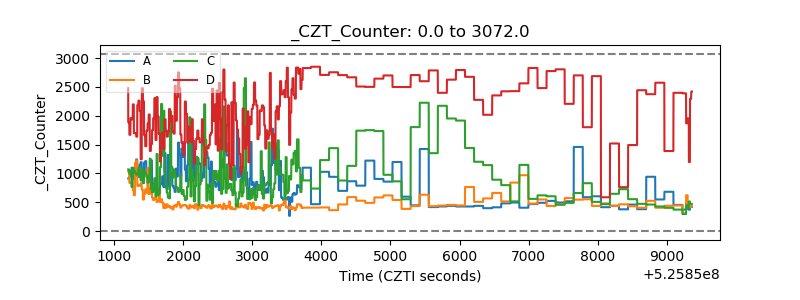

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

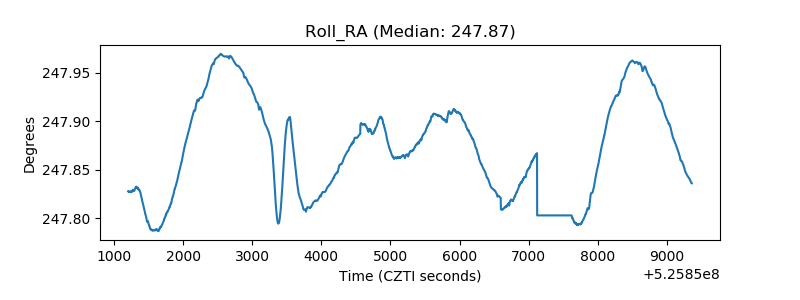

| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
