| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_264T01_9000006602_59128cztM0_level2.fits | modeM0/AS1T05_264T01_9000006602_59128cztM0_level2_quad_clean.evt |
| Size (bytes) | 705,006,720 | 103,011,840 |
| Size | 672.3 MB | 98.2 MB |
| Events in quadrant A | 3,638,697 | 722,004 |
| Events in quadrant B | 4,375,718 | 780,156 |
| Events in quadrant C | 4,851,397 | 715,959 |
| Events in quadrant D | 12,631,557 | 363,133 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16239 | 0 |
| B | 0 | 18322 | 0 |
| C | 0 | 19576 | 0 |
| D | 0 | 42811 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7728 | 22 | 0.284679% |
| B | 7727 | 270 | 3.494241% |
| C | 7727 | 40 | 0.517665% |
| D | 7727 | 3649 | 47.224020% |

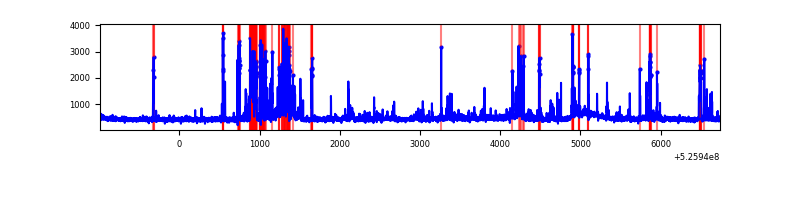

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7728 | 7728 | 12 | 12 | 0.16% | 0.16% |  |
| B | 7727 | 7727 | 154 | 154 | 1.99% | 1.99% |  |
| C | 7727 | 7727 | 34 | 34 | 0.44% | 0.44% |  |
| D | 7727 | 7727 | 2925 | 2925 | 37.85% | 37.85% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 187411 | 896.95 | 851 | 829 | 208.0 |
| A | 10 | 251 | 93695 | 446.43 | 851 | 829 | 208.0 |
| A | 13 | 248 | 33877 | 158.87 | 851 | 829 | 208.0 |
| B | 5 | 185 | 642678 | 3505.76 | 845 | 814 | 183.1 |
| B | 4 | 201 | 156201 | 848.7 | 845 | 814 | 183.1 |
| B | 4 | 236 | 75922 | 410.23 | 845 | 814 | 183.1 |
| C | 3 | 233 | 1224053 | 5345.68 | 834 | 829 | 228.8 |
| C | 5 | 250 | 206285 | 897.87 | 834 | 829 | 228.8 |
| C | 12 | 252 | 88069 | 381.25 | 834 | 829 | 228.8 |
| D | 12 | 1 | 7778055 | 49385.73 | 553 | 527 | 157.5 |
| D | 12 | 110 | 2221106 | 14100.23 | 553 | 527 | 157.5 |
| D | 6 | 239 | 219061 | 1387.65 | 553 | 527 | 157.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

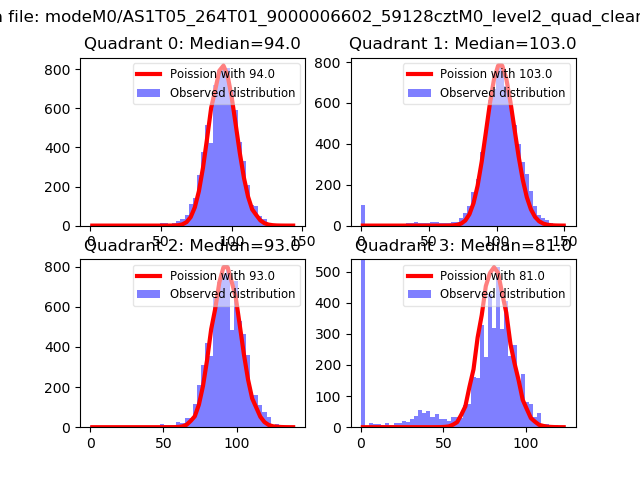

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

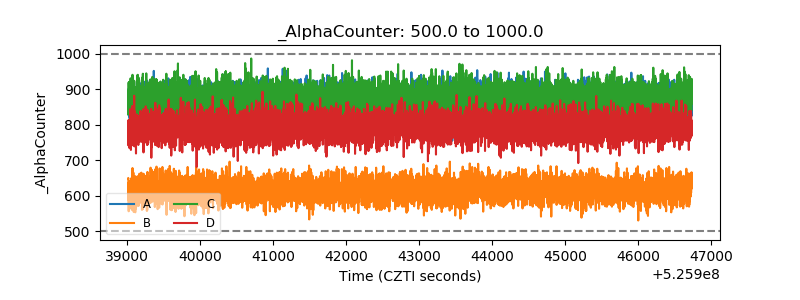

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

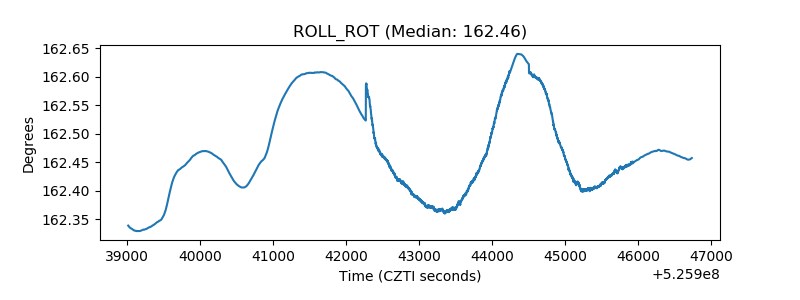

| _ROLL_ROT |  |

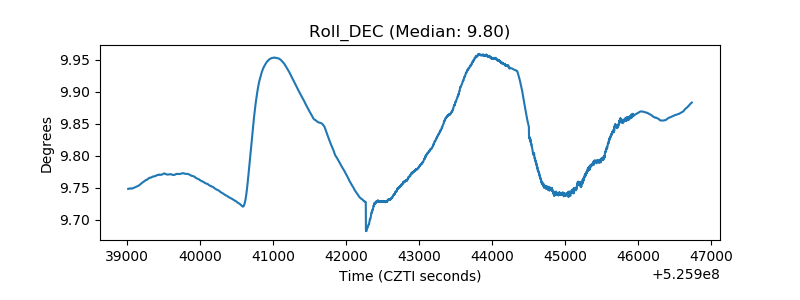

| _Roll_DEC |  |

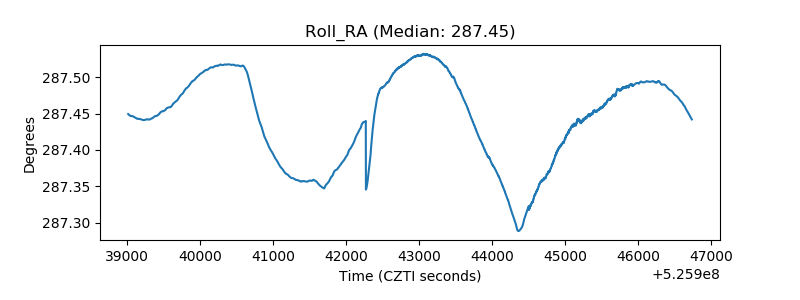

| _Roll_RA |  |

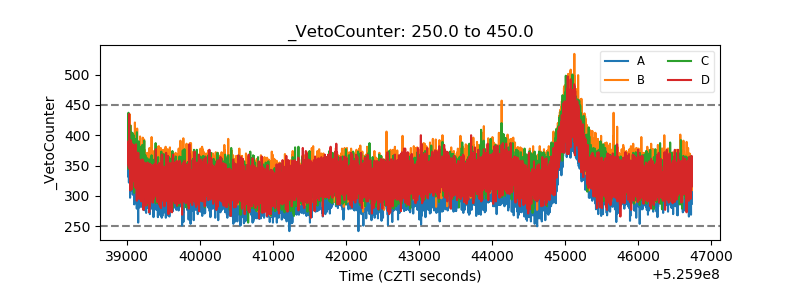

| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

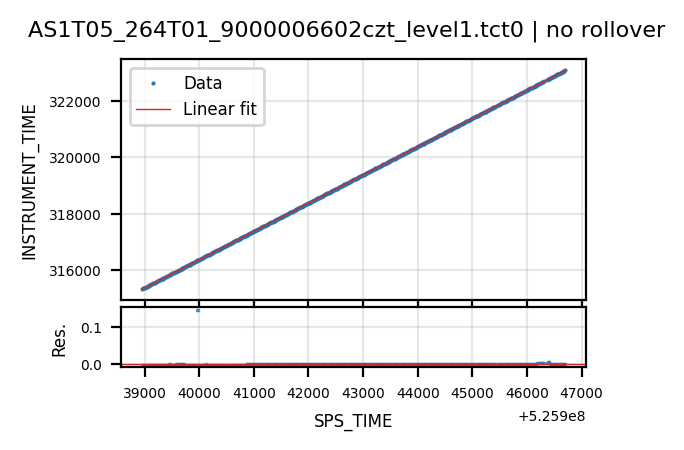

| Tct |  |  |
