| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_264T01_9000006602_59129cztM0_level2.fits | modeM0/AS1T05_264T01_9000006602_59129cztM0_level2_quad_clean.evt |
| Size (bytes) | 824,529,600 | 104,135,040 |
| Size | 786.3 MB | 99.3 MB |
| Events in quadrant A | 4,515,516 | 755,011 |
| Events in quadrant B | 4,511,331 | 818,811 |
| Events in quadrant C | 5,082,275 | 738,441 |
| Events in quadrant D | 15,779,720 | 274,434 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19209 | 0 |
| B | 0 | 18910 | 0 |
| C | 0 | 20472 | 0 |
| D | 0 | 52426 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8148 | 234 | 2.871870% |
| B | 8149 | 327 | 4.012762% |
| C | 8149 | 307 | 3.767333% |
| D | 8149 | 5202 | 63.836054% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8148 | 8148 | 52 | 52 | 0.64% | 0.64% |  |
| B | 8149 | 8149 | 88 | 88 | 1.08% | 1.08% |  |
| C | 8149 | 8149 | 186 | 186 | 2.28% | 2.28% |  |
| D | 8149 | 8149 | 4098 | 4098 | 50.29% | 50.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 683636 | 3002.72 | 922 | 899 | 227.4 |
| A | 10 | 251 | 175375 | 767.36 | 922 | 899 | 227.4 |
| A | 3 | 245 | 39276 | 168.78 | 922 | 899 | 227.4 |
| B | 4 | 236 | 390226 | 1960.31 | 915 | 881 | 198.6 |
| B | 4 | 201 | 154206 | 771.97 | 915 | 881 | 198.6 |
| B | 5 | 185 | 150614 | 753.89 | 915 | 881 | 198.6 |
| C | 15 | 198 | 635985 | 2616.1 | 892 | 886 | 242.8 |
| C | 3 | 233 | 634915 | 2611.69 | 892 | 886 | 242.8 |
| C | 12 | 252 | 175406 | 718.88 | 892 | 886 | 242.8 |
| D | 12 | 1 | 10315185 | 71933.16 | 507 | 486 | 143.4 |
| D | 12 | 110 | 3210094 | 22383.32 | 507 | 486 | 143.4 |
| D | 6 | 239 | 85713 | 594.36 | 507 | 486 | 143.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

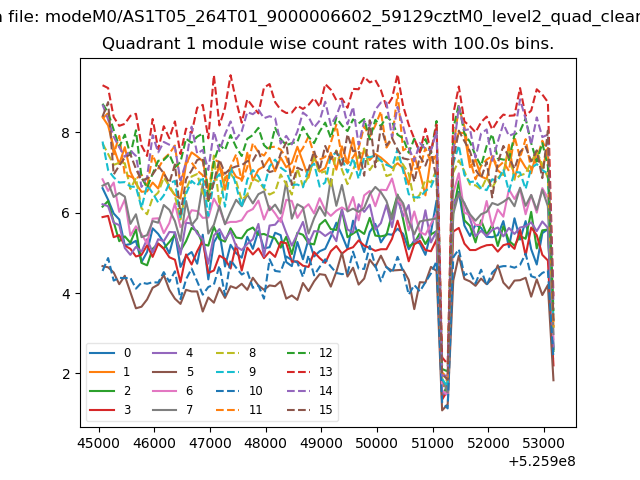

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

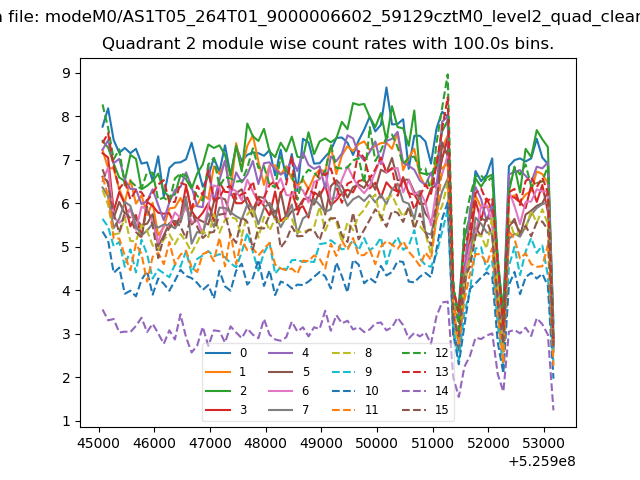

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

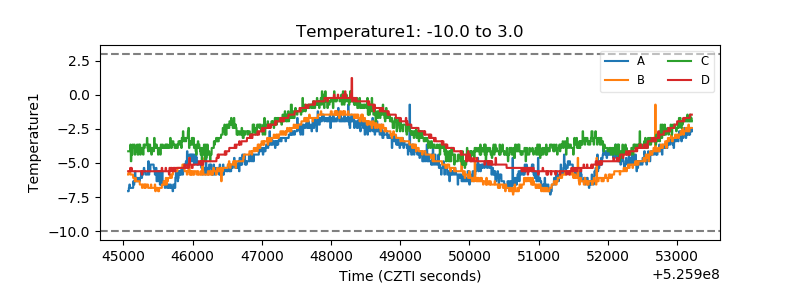

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

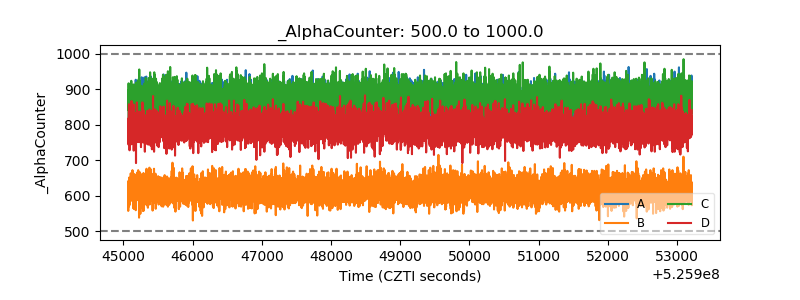

| Alpha Counter |  |
| _CPM_Rate |  |

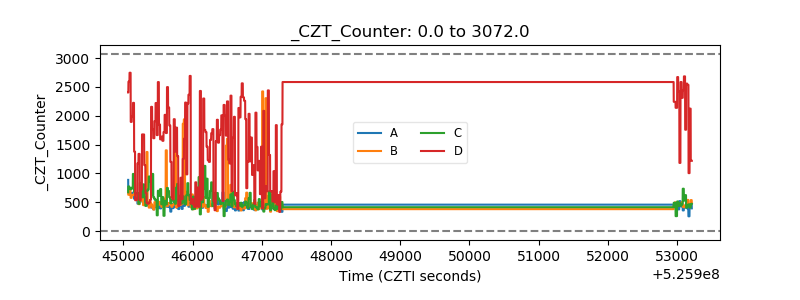

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

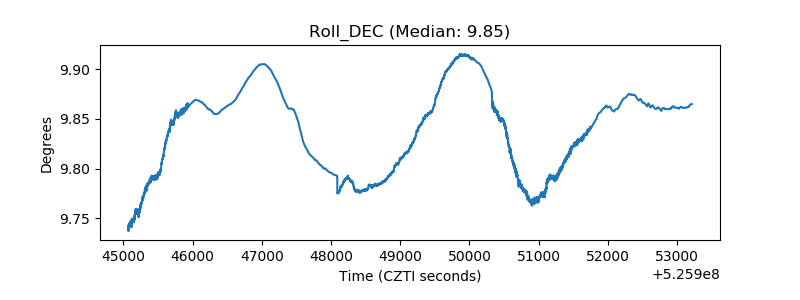

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |

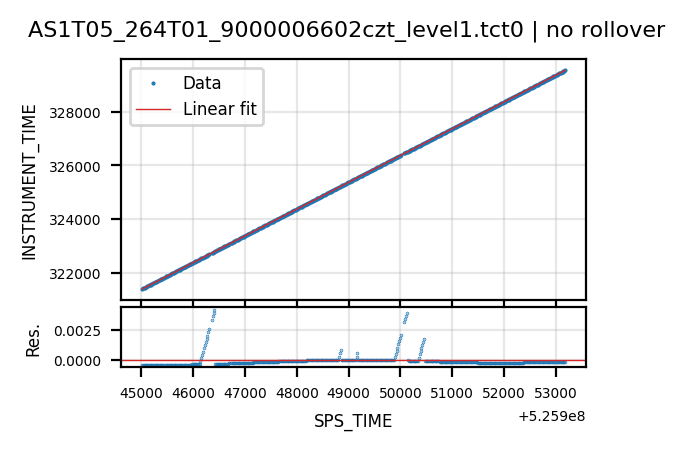

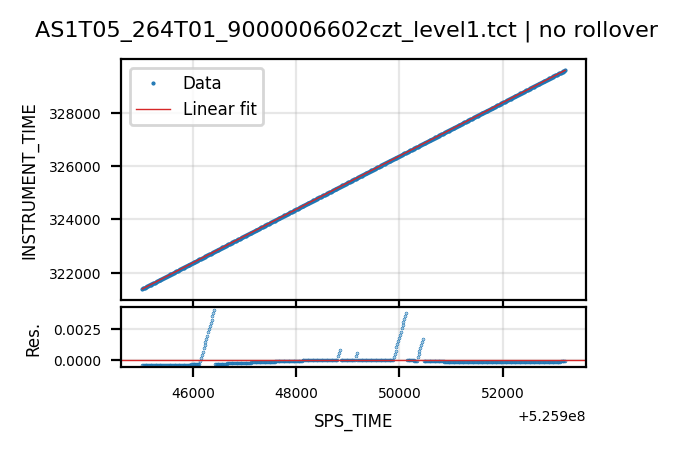

| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
