| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_264T01_9000006602_59156cztM0_level2.fits | modeM0/AS1T05_264T01_9000006602_59156cztM0_level2_quad_clean.evt |
| Size (bytes) | 787,144,320 | 96,402,240 |
| Size | 750.7 MB | 91.9 MB |
| Events in quadrant A | 3,547,344 | 720,742 |
| Events in quadrant B | 3,690,995 | 788,076 |
| Events in quadrant C | 4,276,361 | 707,613 |
| Events in quadrant D | 17,034,192 | 175,239 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16035 | 0 |
| B | 0 | 16220 | 0 |
| C | 0 | 17937 | 1 |
| D | 0 | 55785 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7575 | 41 | 0.541254% |
| B | 7576 | 122 | 1.610348% |
| C | 7575 | 128 | 1.689769% |
| D | 7575 | 5728 | 75.617162% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7575 | 7575 | 12 | 12 | 0.16% | 0.16% |  |
| B | 7576 | 7576 | 11 | 11 | 0.15% | 0.15% |  |
| C | 7575 | 7575 | 101 | 101 | 1.33% | 1.33% |  |
| D | 7575 | 7575 | 5621 | 5621 | 74.20% | 74.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 251 | 143091 | 664.68 | 861 | 836 | 214.0 |
| A | 3 | 245 | 32132 | 146.23 | 861 | 836 | 214.0 |
| A | 15 | 248 | 19924 | 89.19 | 861 | 836 | 214.0 |
| B | 5 | 185 | 127771 | 679.3 | 857 | 823 | 186.9 |
| B | 0 | 197 | 49210 | 258.92 | 857 | 823 | 186.9 |
| B | 4 | 236 | 42086 | 220.8 | 857 | 823 | 186.9 |
| C | 5 | 250 | 687544 | 2966.33 | 837 | 829 | 231.5 |
| C | 12 | 252 | 126731 | 543.84 | 837 | 829 | 231.5 |
| C | 14 | 254 | 56766 | 241.62 | 837 | 829 | 231.5 |
| D | 12 | 1 | 10130740 | 91996.14 | 380 | 361 | 110.1 |
| D | 12 | 110 | 4818482 | 43754.39 | 380 | 361 | 110.1 |
| D | 6 | 239 | 540259 | 4902.93 | 380 | 361 | 110.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

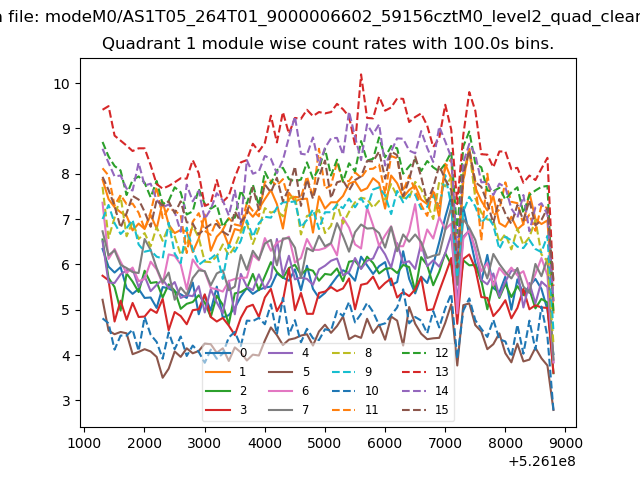

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

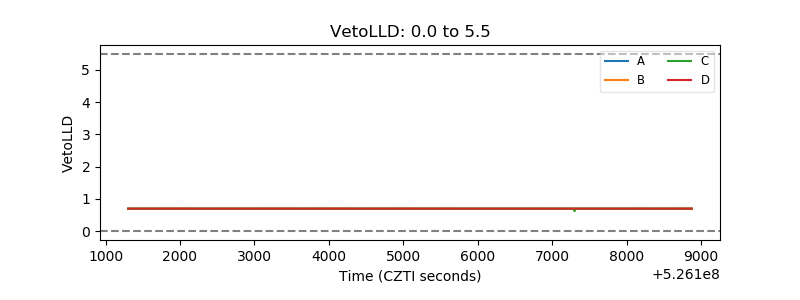

| Veto LLD |  |
| Alpha Counter |  |

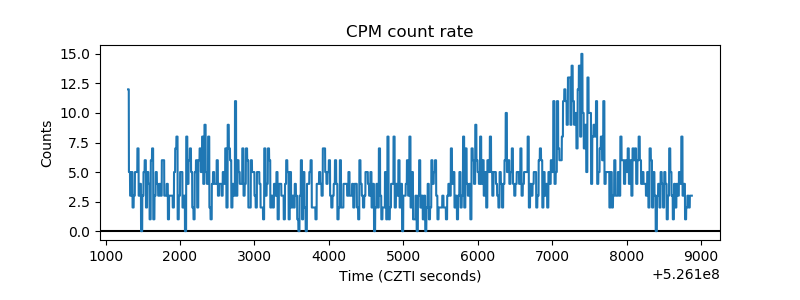

| _CPM_Rate |  |

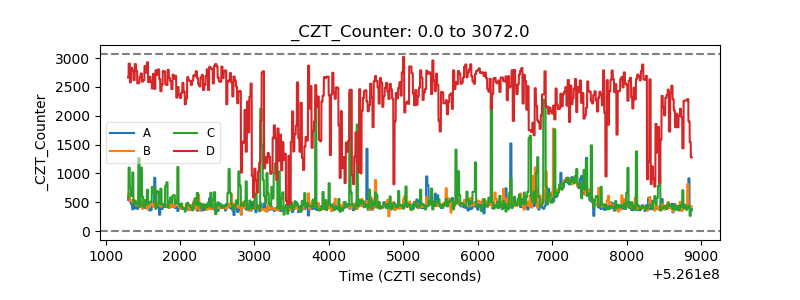

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

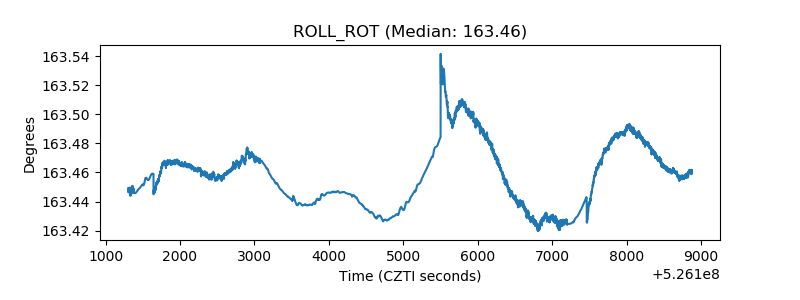

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

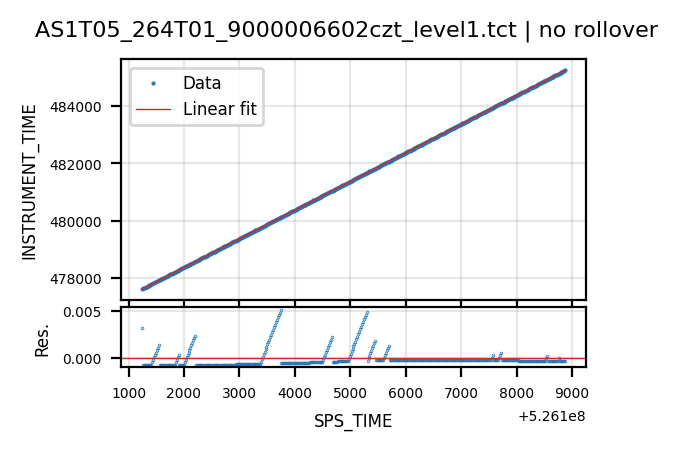

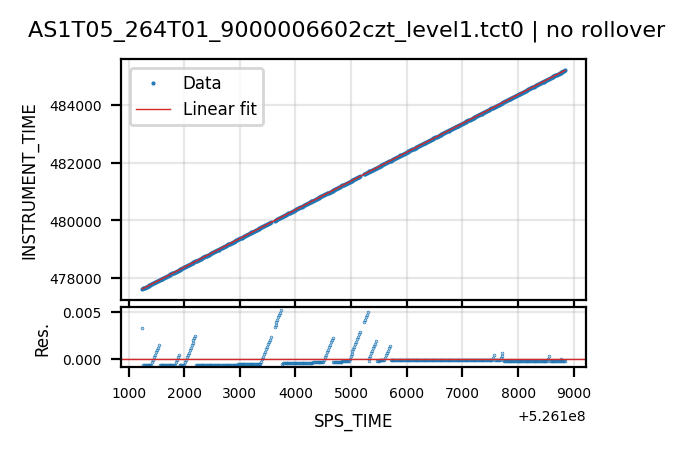

| Tct |  |  |
