| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_271T01_9000006604_59187cztM0_level2.fits | modeM0/AS1T05_271T01_9000006604_59187cztM0_level2_quad_clean.evt |
| Size (bytes) | 793,877,760 | 107,507,520 |
| Size | 757.1 MB | 102.5 MB |
| Events in quadrant A | 3,788,292 | 771,243 |
| Events in quadrant B | 3,975,647 | 829,565 |
| Events in quadrant C | 4,073,992 | 741,657 |
| Events in quadrant D | 16,919,343 | 348,193 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17199 | 0 |
| B | 0 | 17562 | 0 |
| C | 0 | 17871 | 0 |
| D | 0 | 55848 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8116 | 22 | 0.271069% |
| B | 8117 | 90 | 1.108784% |
| C | 8117 | 44 | 0.542072% |
| D | 8117 | 4765 | 58.703955% |

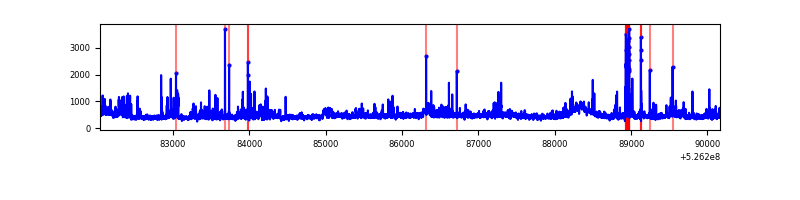

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8116 | 8116 | 3 | 3 | 0.04% | 0.04% |  |
| B | 8117 | 8117 | 16 | 16 | 0.20% | 0.20% |  |
| C | 8117 | 8117 | 34 | 34 | 0.42% | 0.42% |  |
| D | 8117 | 8117 | 5151 | 5151 | 63.46% | 63.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 182620 | 831.33 | 891 | 866 | 218.6 |
| A | 10 | 251 | 70163 | 316.96 | 891 | 866 | 218.6 |
| A | 0 | 24 | 55367 | 249.28 | 891 | 866 | 218.6 |
| B | 4 | 171 | 285519 | 1505.49 | 883 | 847 | 189.1 |
| B | 10 | 247 | 70490 | 368.31 | 883 | 847 | 189.1 |
| B | 4 | 236 | 33812 | 174.34 | 883 | 847 | 189.1 |
| C | 3 | 233 | 250377 | 1055.65 | 865 | 857 | 236.4 |
| C | 9 | 38 | 186981 | 787.44 | 865 | 857 | 236.4 |
| C | 13 | 3 | 104326 | 437.75 | 865 | 857 | 236.4 |
| D | 12 | 110 | 12963805 | 62299.26 | 736 | 703 | 208.1 |
| D | 2 | 31 | 278617 | 1335.62 | 736 | 703 | 208.1 |
| D | 3 | 13 | 247309 | 1185.16 | 736 | 703 | 208.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

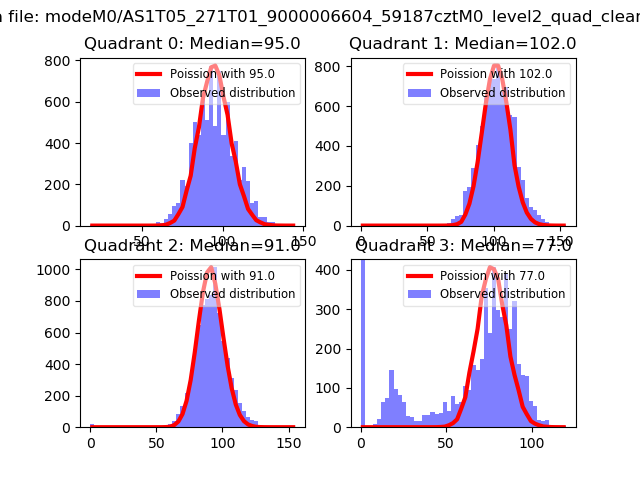

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

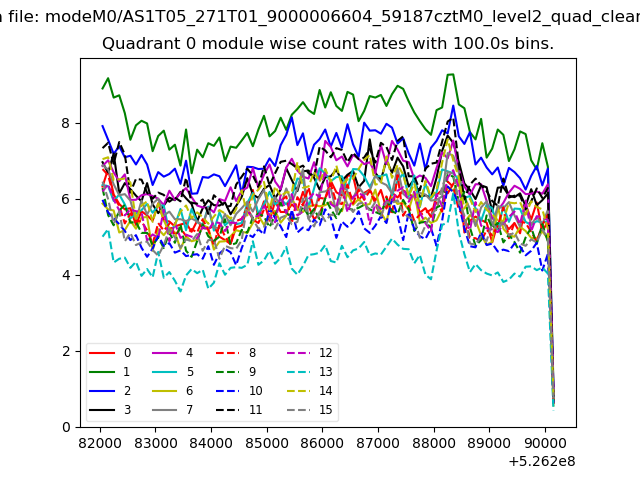

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

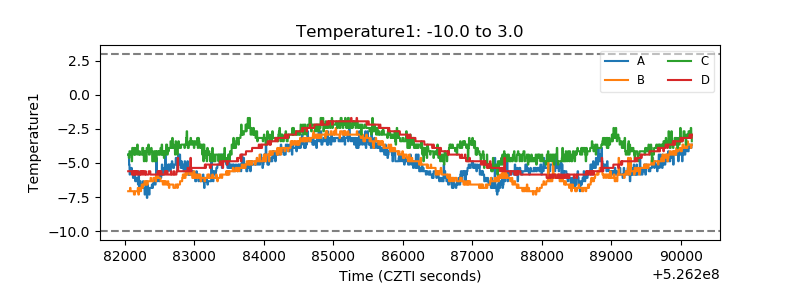

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

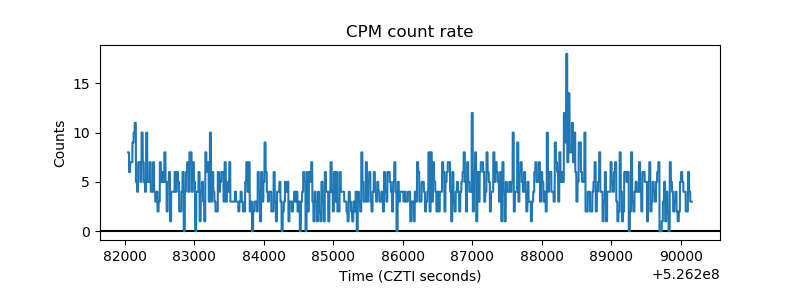

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

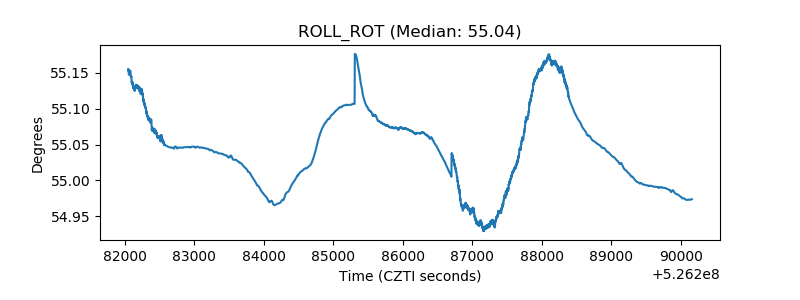

| _ROLL_ROT |  |
| _Roll_DEC |  |

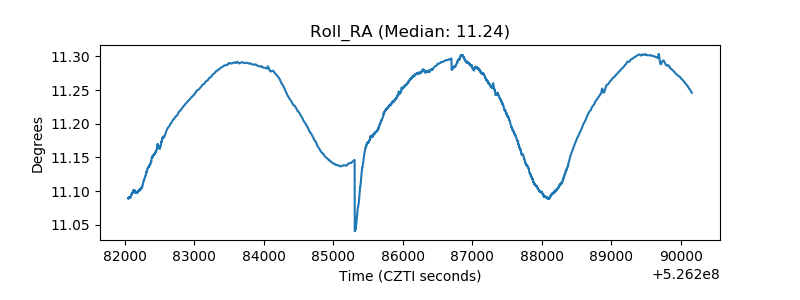

| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
