| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_271T01_9000006604_59201cztM0_level2.fits | modeM0/AS1T05_271T01_9000006604_59201cztM0_level2_quad_clean.evt |
| Size (bytes) | 581,356,800 | 117,178,560 |
| Size | 554.4 MB | 111.8 MB |
| Events in quadrant A | 4,048,729 | 770,707 |
| Events in quadrant B | 4,168,444 | 824,007 |
| Events in quadrant C | 4,433,951 | 738,726 |
| Events in quadrant D | 8,242,022 | 652,539 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17872 | 0 |
| B | 0 | 18187 | 0 |
| C | 0 | 19046 | 1 |
| D | 0 | 30160 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8084 | 54 | 0.667986% |
| B | 8084 | 123 | 1.521524% |
| C | 8083 | 54 | 0.668069% |
| D | 8084 | 735 | 9.092034% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8084 | 8084 | 48 | 48 | 0.59% | 0.59% |  |
| B | 8084 | 8084 | 66 | 66 | 0.82% | 0.82% |  |
| C | 8083 | 8083 | 46 | 46 | 0.57% | 0.57% |  |
| D | 8084 | 8084 | 729 | 729 | 9.02% | 9.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 24 | 389250 | 1789.75 | 877 | 853 | 217.0 |
| A | 10 | 251 | 225195 | 1033.78 | 877 | 853 | 217.0 |
| A | 15 | 233 | 17105 | 74.89 | 877 | 853 | 217.0 |
| B | 0 | 186 | 227060 | 1204.4 | 870 | 838 | 187.8 |
| B | 10 | 247 | 216060 | 1145.83 | 870 | 838 | 187.8 |
| B | 4 | 201 | 185947 | 985.51 | 870 | 838 | 187.8 |
| C | 3 | 233 | 613254 | 2613.54 | 856 | 850 | 234.3 |
| C | 12 | 252 | 194216 | 825.22 | 856 | 850 | 234.3 |
| C | 15 | 147 | 167274 | 710.24 | 856 | 850 | 234.3 |
| D | 12 | 110 | 4343847 | 18674.77 | 828 | 790 | 232.6 |
| D | 11 | 129 | 339057 | 1454.52 | 828 | 790 | 232.6 |
| D | 8 | 240 | 88357 | 376.53 | 828 | 790 | 232.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

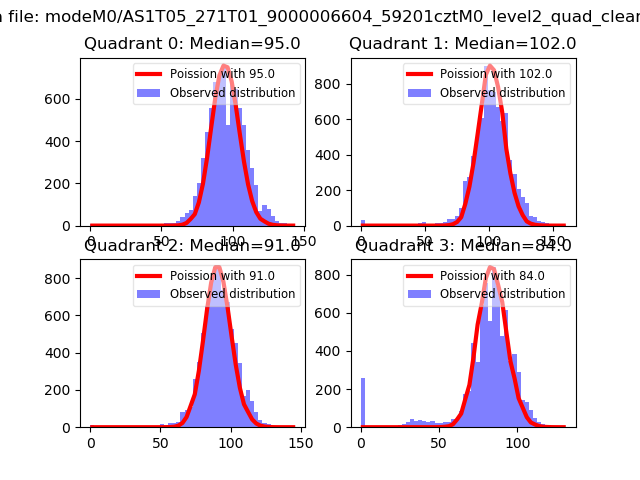

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

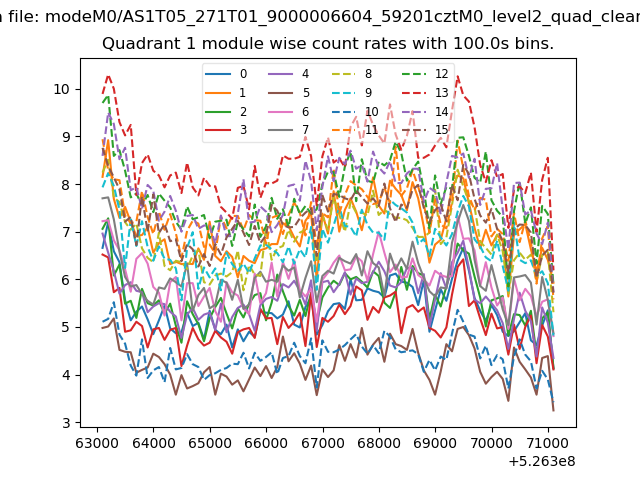

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

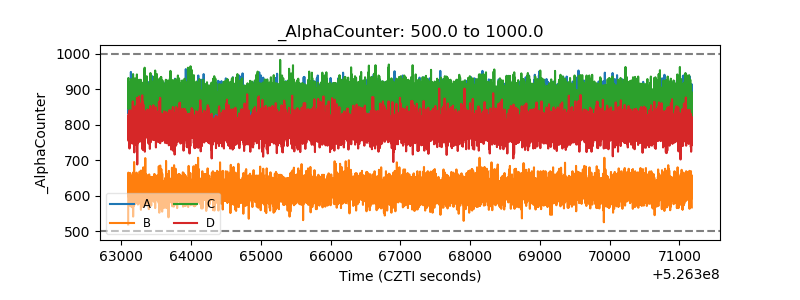

| Alpha Counter |  |

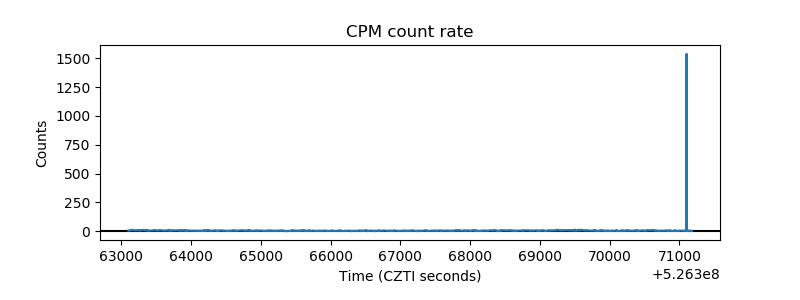

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

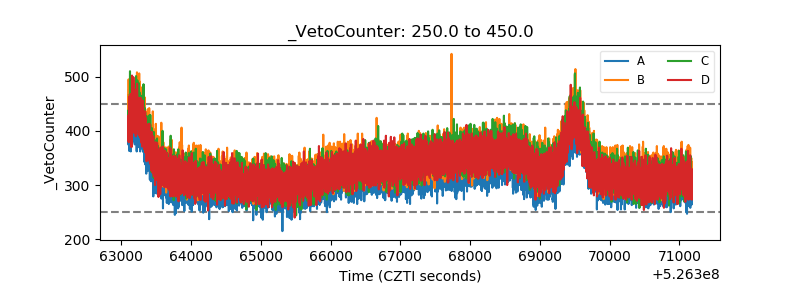

| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

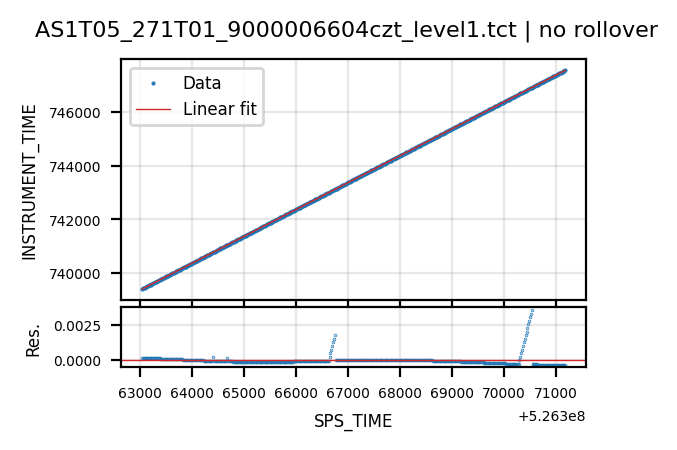

| Tct |  |  |
