| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_271T01_9000006604_59215cztM0_level2.fits | modeM0/AS1T05_271T01_9000006604_59215cztM0_level2_quad_clean.evt |
| Size (bytes) | 839,724,480 | 98,712,000 |
| Size | 800.8 MB | 94.1 MB |
| Events in quadrant A | 4,544,499 | 769,879 |
| Events in quadrant B | 3,803,608 | 842,356 |
| Events in quadrant C | 4,893,471 | 726,522 |
| Events in quadrant D | 17,206,964 | 82,837 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19333 | 1 |
| B | 0 | 17306 | 1 |
| C | 0 | 20378 | 1 |
| D | 0 | 56887 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8159 | 233 | 2.855742% |
| B | 8159 | 99 | 1.213384% |
| C | 8159 | 372 | 4.559382% |
| D | 8160 | 7282 | 89.240196% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

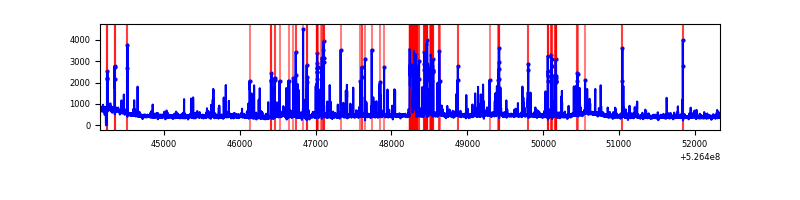

| A | 8174 | 8160 | 179 | 179 | 2.19% | 2.19% |  |
| B | 8174 | 8160 | 20 | 20 | 0.24% | 0.25% |  |
| C | 8174 | 8160 | 336 | 336 | 4.11% | 4.12% |  |

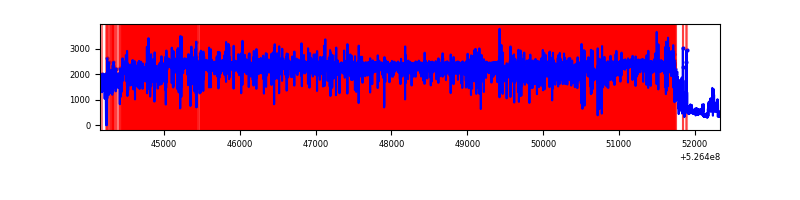

| D | 8175 | 8161 | 6181 | 6181 | 75.61% | 75.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 24 | 449079 | 2044.75 | 889 | 865 | 219.2 |
| A | 14 | 238 | 361288 | 1644.25 | 889 | 865 | 219.2 |
| A | 10 | 251 | 157913 | 716.45 | 889 | 865 | 219.2 |
| B | 4 | 236 | 44125 | 226.02 | 893 | 857 | 191.4 |
| B | 7 | 252 | 43165 | 221.0 | 893 | 857 | 191.4 |
| B | 10 | 247 | 38042 | 194.24 | 893 | 857 | 191.4 |
| C | 15 | 147 | 1071857 | 4546.96 | 861 | 854 | 235.5 |
| C | 5 | 250 | 110721 | 466.44 | 861 | 854 | 235.5 |
| C | 6 | 223 | 67436 | 282.67 | 861 | 854 | 235.5 |
| D | 12 | 110 | 14828847 | 105545.27 | 497 | 475 | 140.5 |
| D | 8 | 240 | 175768 | 1247.7 | 497 | 475 | 140.5 |
| D | 11 | 129 | 148402 | 1052.91 | 497 | 475 | 140.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

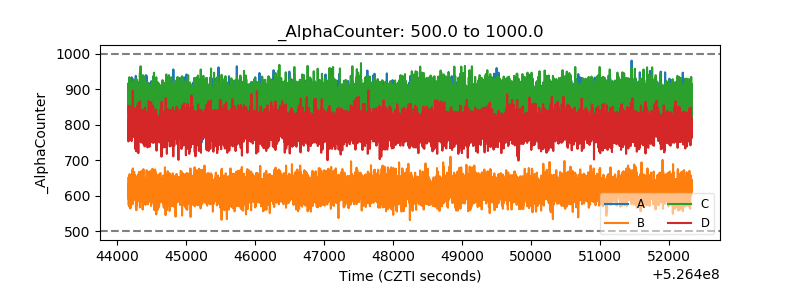

| Alpha Counter |  |
| _CPM_Rate |  |

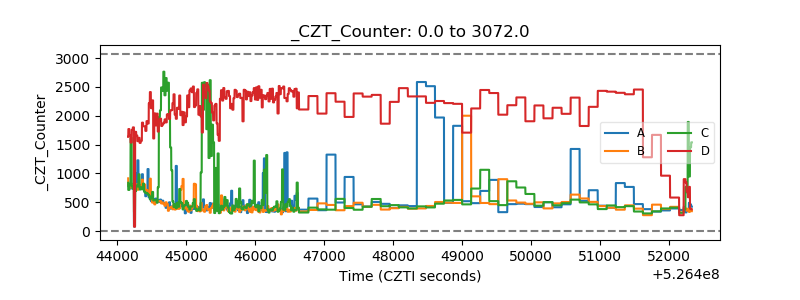

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

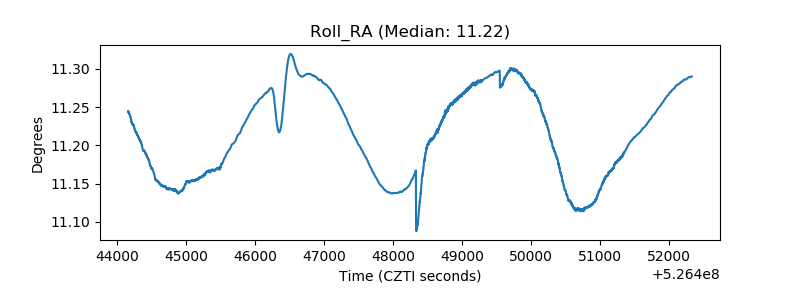

| _Roll_RA |  |

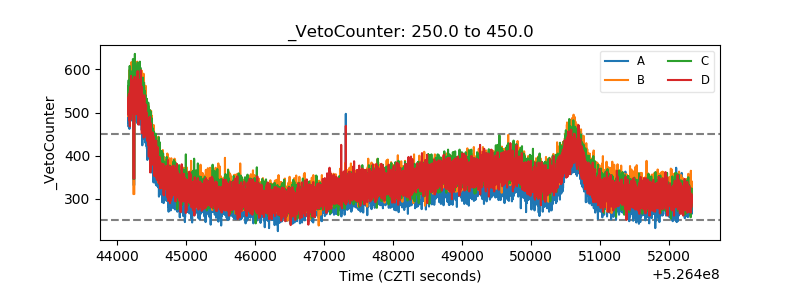

| Veto Counter |  |

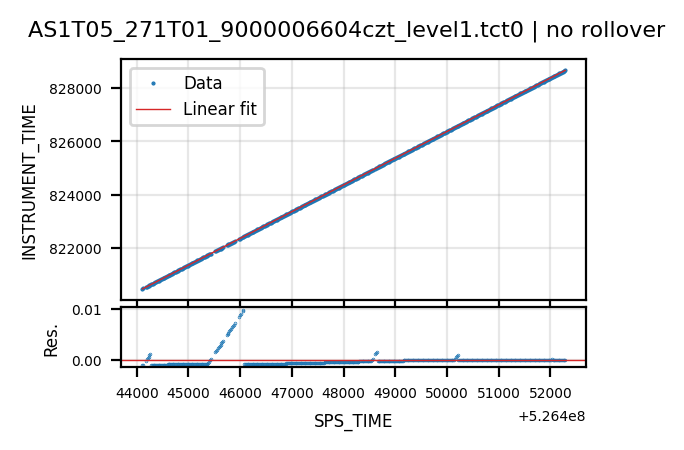

| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
