| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_271T01_9000006604_59216cztM0_level2.fits | modeM0/AS1T05_271T01_9000006604_59216cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,077,440 | 101,096,640 |
| Size | 511.2 MB | 96.4 MB |
| Events in quadrant A | 4,600,026 | 658,784 |
| Events in quadrant B | 3,303,022 | 727,917 |
| Events in quadrant C | 4,100,304 | 643,058 |
| Events in quadrant D | 7,285,523 | 533,282 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19030 | 0 |
| B | 0 | 15031 | 0 |
| C | 0 | 17370 | 0 |
| D | 0 | 26624 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7148 | 270 | 3.777280% |
| B | 7149 | 70 | 0.979158% |
| C | 7149 | 195 | 2.727654% |
| D | 7149 | 1012 | 14.155826% |

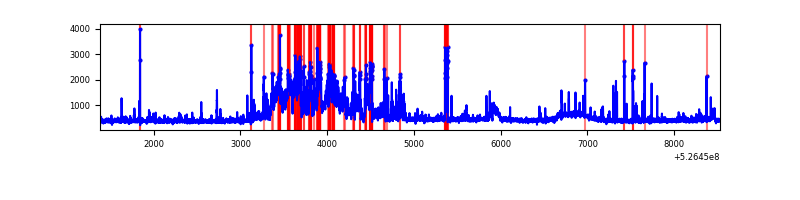

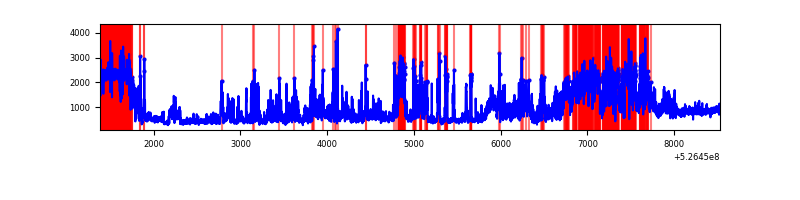

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7148 | 7148 | 200 | 200 | 2.80% | 2.80% |  |
| B | 7149 | 7149 | 16 | 16 | 0.22% | 0.22% |  |
| C | 7149 | 7149 | 179 | 179 | 2.50% | 2.50% |  |
| D | 7149 | 7149 | 846 | 846 | 11.83% | 11.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 1308759 | 6890.59 | 770 | 748 | 189.8 |
| A | 0 | 24 | 185337 | 972.41 | 770 | 748 | 189.8 |
| A | 10 | 251 | 100284 | 524.35 | 770 | 748 | 189.8 |
| B | 4 | 201 | 60374 | 357.43 | 770 | 739 | 166.8 |
| B | 5 | 248 | 41683 | 245.41 | 770 | 739 | 166.8 |
| B | 5 | 185 | 37174 | 218.38 | 770 | 739 | 166.8 |
| C | 15 | 147 | 771138 | 3777.44 | 749 | 744 | 203.9 |
| C | 12 | 252 | 125631 | 612.35 | 749 | 744 | 203.9 |
| C | 3 | 233 | 76890 | 373.36 | 749 | 744 | 203.9 |
| D | 12 | 110 | 3998730 | 19851.89 | 714 | 682 | 201.4 |
| D | 11 | 129 | 321963 | 1595.29 | 714 | 682 | 201.4 |
| D | 8 | 240 | 47141 | 230.69 | 714 | 682 | 201.4 |

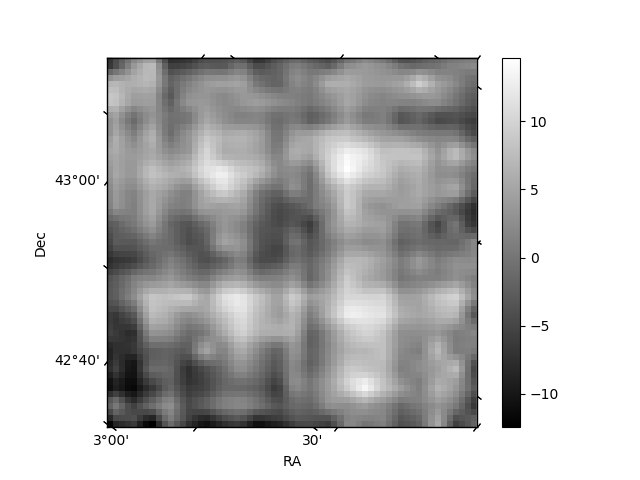

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

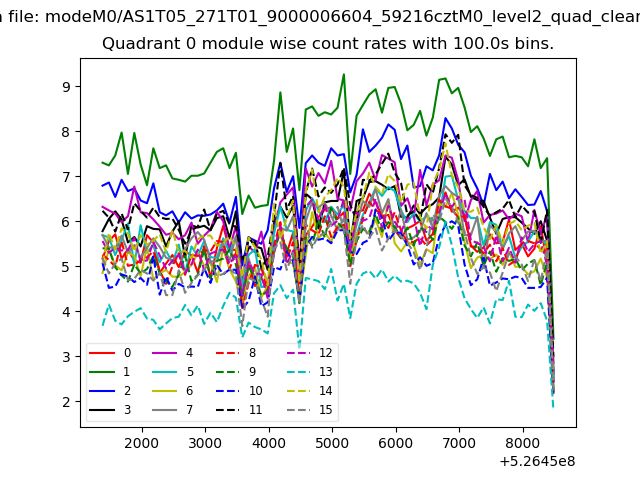

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

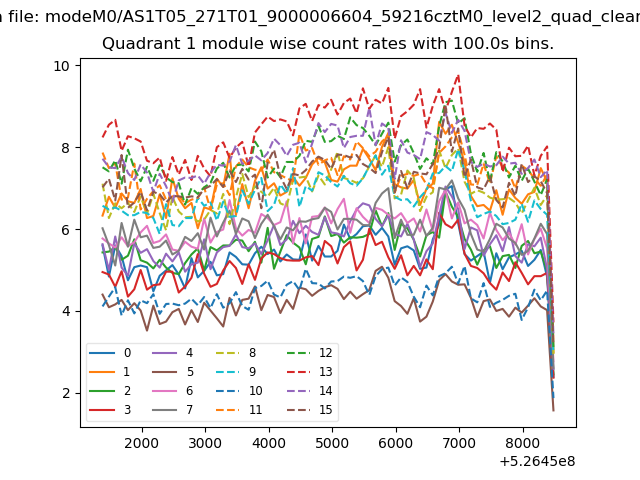

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

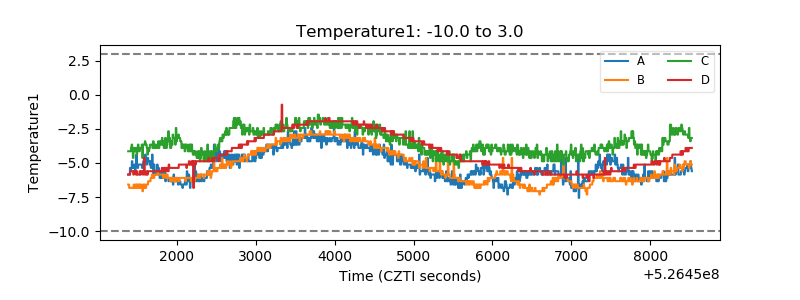

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

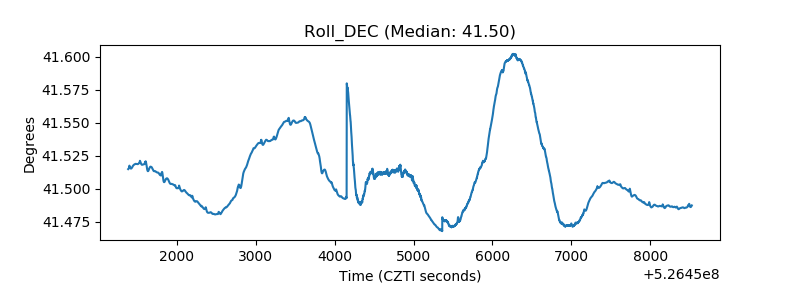

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

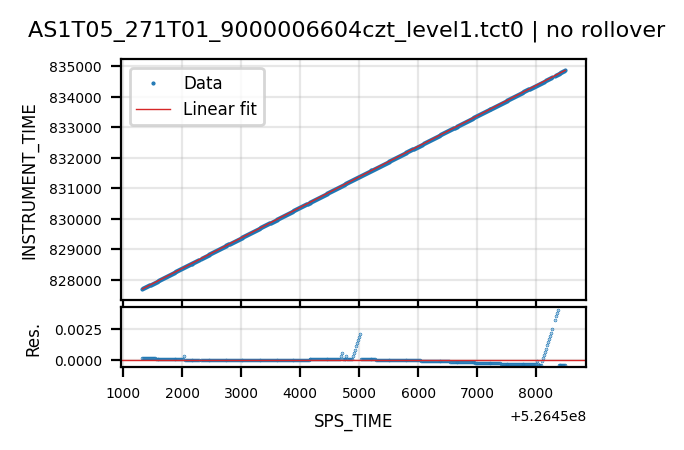

| Tct |  |  |
