| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_271T01_9000006604_59245cztM0_level2.fits | modeM0/AS1T05_271T01_9000006604_59245cztM0_level2_quad_clean.evt |
| Size (bytes) | 626,184,000 | 104,526,720 |
| Size | 597.2 MB | 99.7 MB |
| Events in quadrant A | 3,749,991 | 720,607 |
| Events in quadrant B | 3,600,582 | 779,709 |
| Events in quadrant C | 3,636,579 | 703,628 |
| Events in quadrant D | 11,587,353 | 419,803 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16882 | 0 |
| B | 0 | 16537 | 0 |
| C | 0 | 16678 | 1 |
| D | 0 | 39894 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7781 | 72 | 0.925331% |
| B | 7782 | 67 | 0.860961% |
| C | 7781 | 37 | 0.475517% |
| D | 7781 | 3041 | 39.082380% |

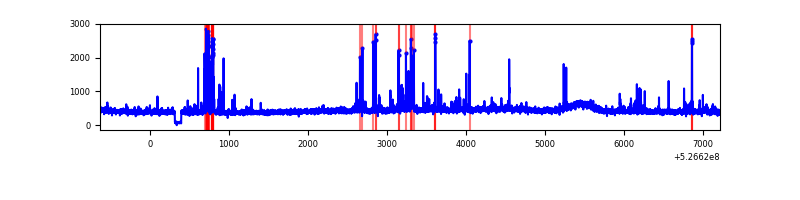

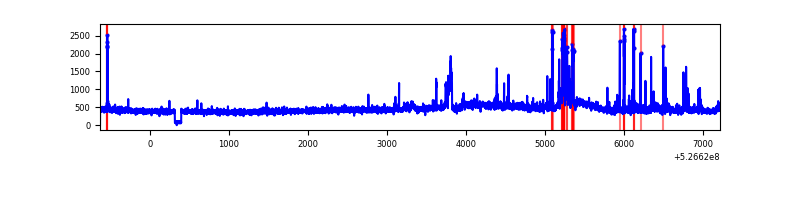

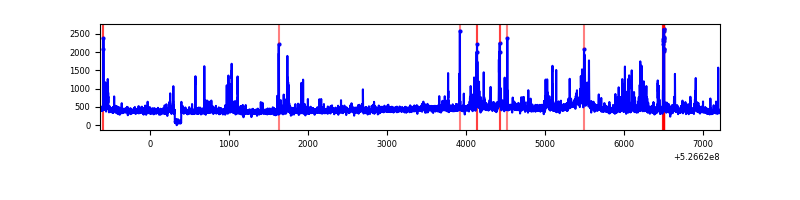

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7845 | 7844 | 51 | 51 | 0.65% | 0.65% |  |
| B | 7846 | 7845 | 45 | 45 | 0.57% | 0.57% |  |
| C | 7845 | 7844 | 23 | 23 | 0.29% | 0.29% |  |
| D | 7845 | 7842 | 3113 | 3113 | 39.68% | 39.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 374487 | 1839.81 | 823 | 802 | 203.1 |
| A | 3 | 245 | 113111 | 552.94 | 823 | 802 | 203.1 |
| A | 10 | 251 | 47723 | 231.01 | 823 | 802 | 203.1 |
| B | 10 | 247 | 120733 | 679.19 | 820 | 787 | 176.6 |
| B | 4 | 236 | 113096 | 635.95 | 820 | 787 | 176.6 |
| B | 4 | 201 | 27703 | 152.41 | 820 | 787 | 176.6 |
| C | 14 | 95 | 110635 | 494.21 | 808 | 802 | 222.2 |
| C | 12 | 252 | 92312 | 411.77 | 808 | 802 | 222.2 |
| C | 6 | 13 | 80680 | 359.42 | 808 | 802 | 222.2 |
| D | 12 | 110 | 8095930 | 41072.42 | 698 | 668 | 197.1 |
| D | 12 | 2 | 176215 | 890.66 | 698 | 668 | 197.1 |
| D | 11 | 129 | 164363 | 830.53 | 698 | 668 | 197.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

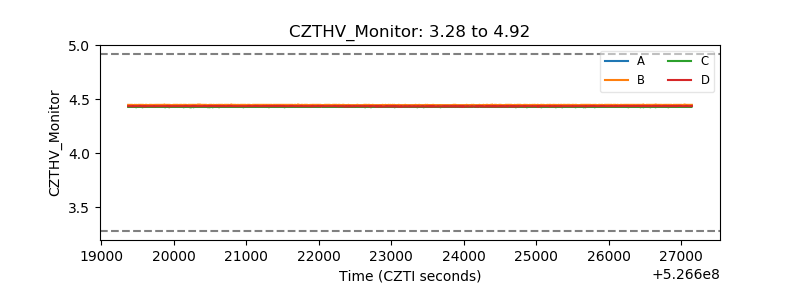

| CZT HV Monitor |  |

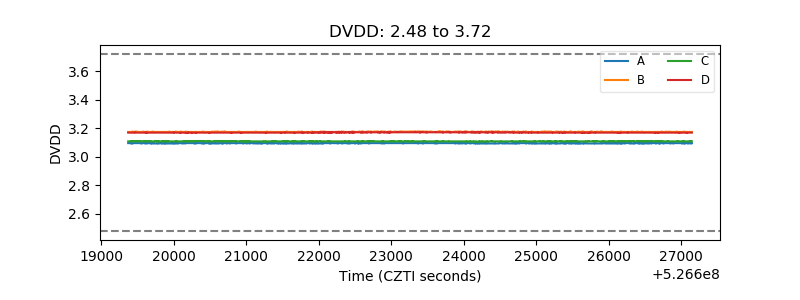

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

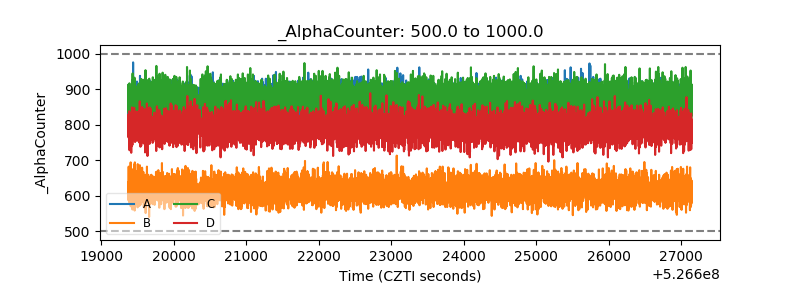

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

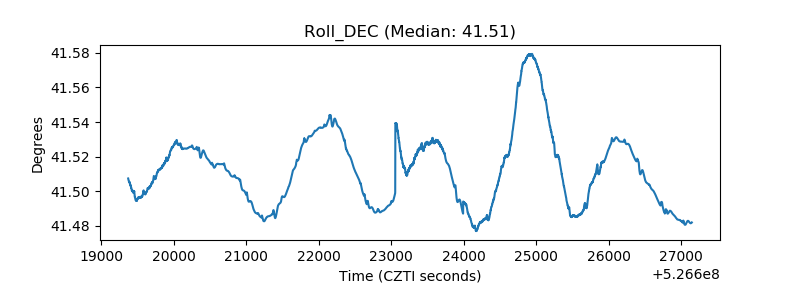

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
