| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_271T01_9000006604_59259cztM0_level2.fits | modeM0/AS1T05_271T01_9000006604_59259cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,424,640 | 135,184,320 |
| Size | 522.1 MB | 128.9 MB |
| Events in quadrant A | 4,804,064 | 870,796 |
| Events in quadrant B | 4,288,205 | 947,390 |
| Events in quadrant C | 4,997,493 | 845,023 |
| Events in quadrant D | 5,461,105 | 793,123 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20941 | 0 |
| B | 0 | 19520 | 0 |
| C | 0 | 21465 | 0 |
| D | 0 | 22543 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 184 | 0 |
| B | 0 | 184 | 0 |
| C | 0 | 184 | 0 |
| D | 0 | 184 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9181 | 115 | 1.252587% |
| B | 9182 | 95 | 1.034633% |
| C | 9182 | 149 | 1.622740% |
| D | 9182 | 85 | 0.925724% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9181 | 9181 | 60 | 60 | 0.65% | 0.65% |  |
| B | 9182 | 9182 | 19 | 19 | 0.21% | 0.21% |  |
| C | 9182 | 9182 | 113 | 113 | 1.23% | 1.23% |  |
| D | 9182 | 9182 | 41 | 41 | 0.45% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 405894 | 1648.52 | 1002 | 977 | 245.6 |
| A | 0 | 128 | 163563 | 661.93 | 1002 | 977 | 245.6 |
| A | 0 | 24 | 158911 | 642.99 | 1002 | 977 | 245.6 |
| B | 5 | 185 | 111999 | 513.08 | 1000 | 959 | 216.4 |
| B | 10 | 247 | 73276 | 334.15 | 1000 | 959 | 216.4 |
| B | 4 | 236 | 36605 | 164.71 | 1000 | 959 | 216.4 |
| C | 12 | 252 | 467914 | 1717.5 | 990 | 980 | 271.9 |
| C | 10 | 22 | 297172 | 1089.47 | 990 | 980 | 271.9 |
| C | 15 | 147 | 272810 | 999.86 | 990 | 980 | 271.9 |
| D | 12 | 110 | 1329683 | 4791.74 | 977 | 933 | 277.3 |
| D | 3 | 160 | 82077 | 292.62 | 977 | 933 | 277.3 |
| D | 2 | 249 | 74713 | 266.07 | 977 | 933 | 277.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

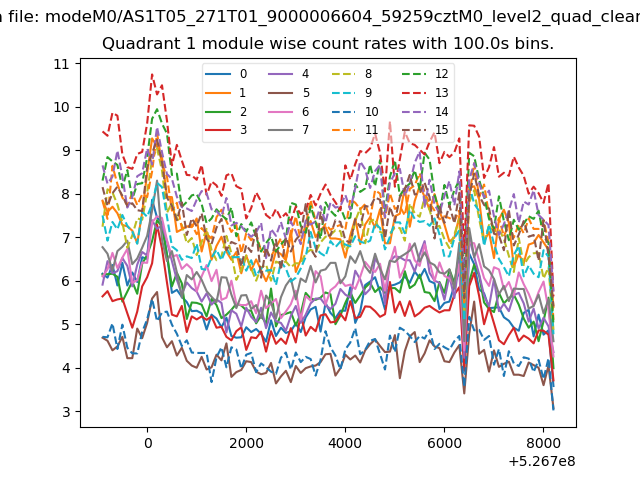

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

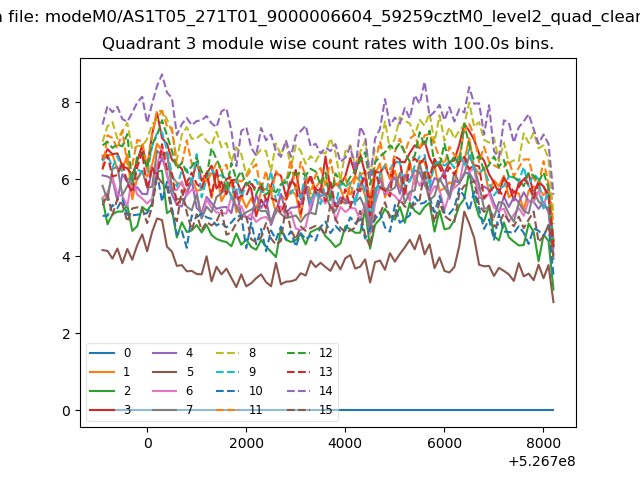

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

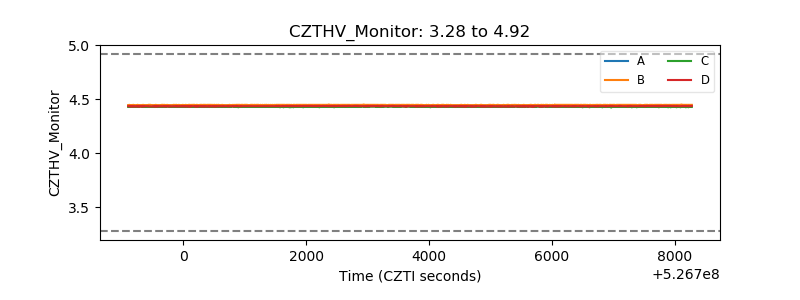

| CZT HV Monitor |  |
| D_VDD |  |

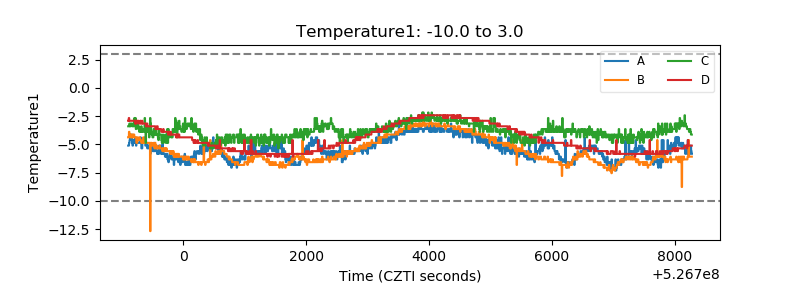

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

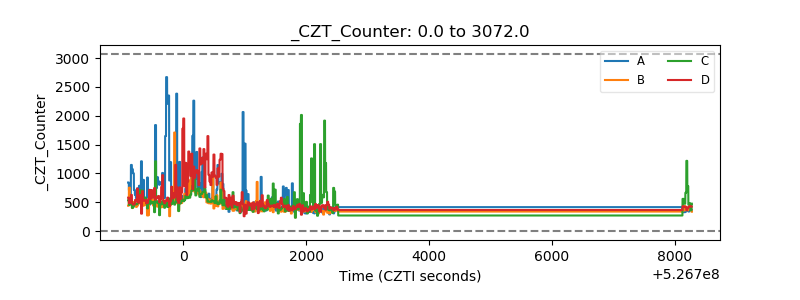

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

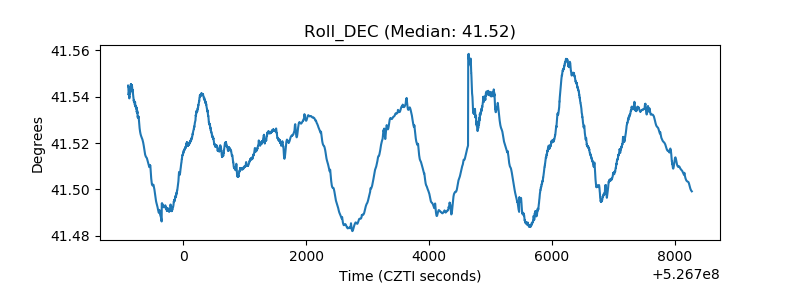

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

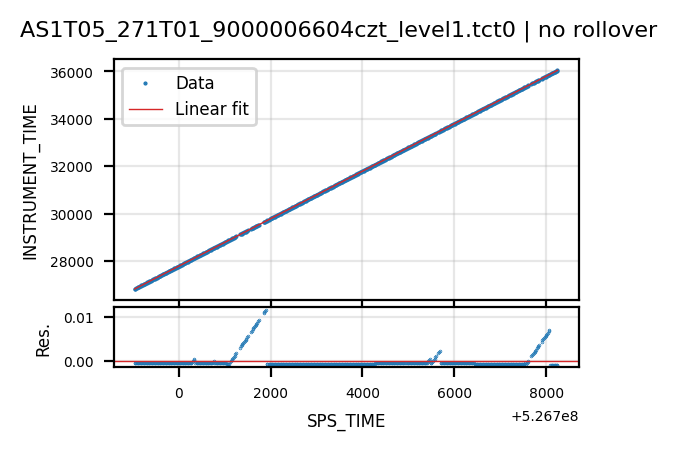

| Tct |  |  |
