| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_021T06_9000006606_59288cztM0_level2.fits | modeM0/AS1A14_021T06_9000006606_59288cztM0_level2_quad_clean.evt |
| Size (bytes) | 853,165,440 | 100,834,560 |
| Size | 813.6 MB | 96.2 MB |
| Events in quadrant A | 4,078,864 | 752,448 |
| Events in quadrant B | 5,954,559 | 798,044 |
| Events in quadrant C | 6,424,882 | 650,257 |
| Events in quadrant D | 14,499,031 | 293,108 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18345 | 0 |
| B | 0 | 23436 | 0 |
| C | 0 | 24858 | 0 |
| D | 0 | 48651 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8045 | 234 | 2.908639% |
| B | 8046 | 629 | 7.817549% |
| C | 8046 | 1012 | 12.577678% |
| D | 8046 | 4759 | 59.147402% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8045 | 8045 | 201 | 201 | 2.50% | 2.50% |  |
| B | 8046 | 8046 | 437 | 437 | 5.43% | 5.43% |  |
| C | 8046 | 8046 | 861 | 861 | 10.70% | 10.70% |  |
| D | 8046 | 8046 | 4077 | 4077 | 50.67% | 50.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 709794 | 3417.18 | 842 | 822 | 207.5 |
| A | 3 | 245 | 71804 | 342.12 | 842 | 822 | 207.5 |
| A | 3 | 14 | 15746 | 71.93 | 842 | 822 | 207.5 |
| B | 4 | 236 | 1207395 | 6763.1 | 835 | 805 | 178.4 |
| B | 5 | 236 | 661303 | 3702.18 | 835 | 805 | 178.4 |
| B | 5 | 185 | 325954 | 1822.5 | 835 | 805 | 178.4 |
| C | 15 | 198 | 2564465 | 11910.72 | 780 | 771 | 215.2 |
| C | 12 | 252 | 521104 | 2417.43 | 780 | 771 | 215.2 |
| C | 4 | 5 | 121357 | 560.23 | 780 | 771 | 215.2 |
| D | 12 | 110 | 11358350 | 63023.32 | 615 | 584 | 180.2 |
| D | 12 | 2 | 249841 | 1383.11 | 615 | 584 | 180.2 |
| D | 11 | 129 | 176961 | 978.7 | 615 | 584 | 180.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

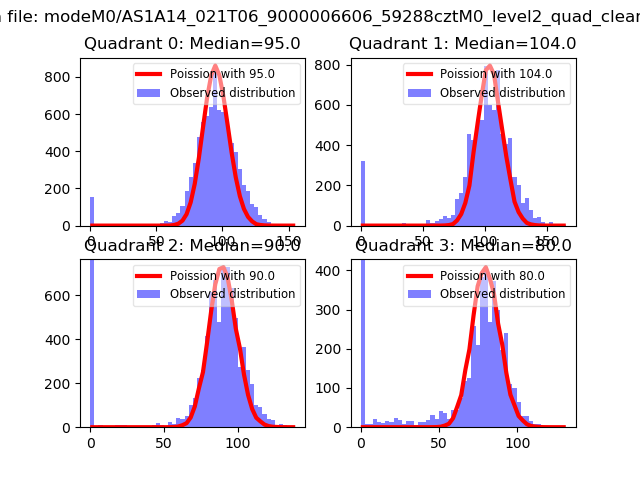

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

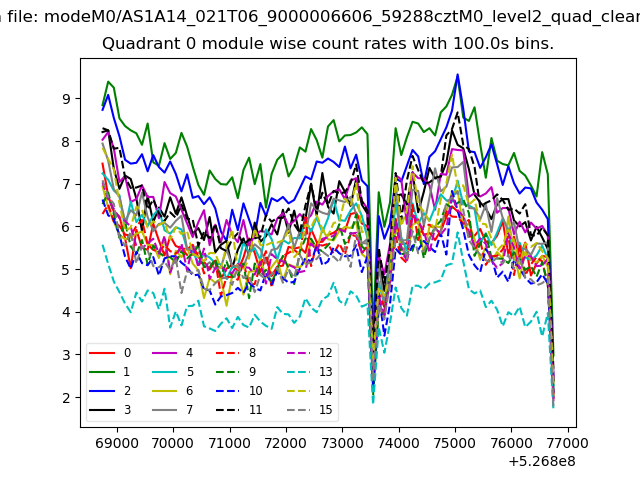

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

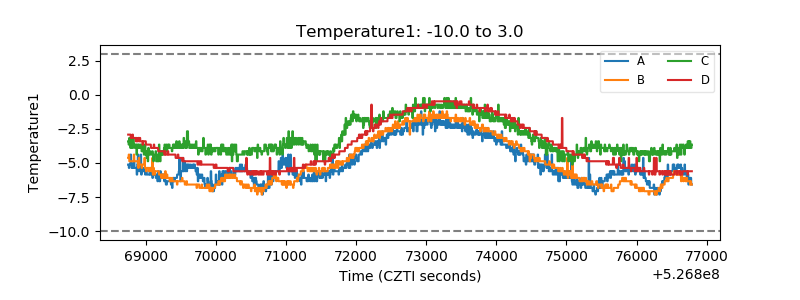

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

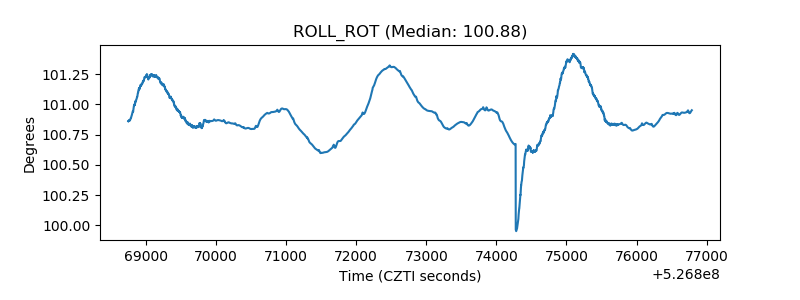

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
