| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_021T06_9000006606_59291cztM0_level2.fits | modeM0/AS1A14_021T06_9000006606_59291cztM0_level2_quad_clean.evt |
| Size (bytes) | 766,863,360 | 67,443,840 |
| Size | 731.3 MB | 64.3 MB |
| Events in quadrant A | 3,392,792 | 552,197 |
| Events in quadrant B | 4,257,761 | 585,297 |
| Events in quadrant C | 7,349,740 | 398,184 |
| Events in quadrant D | 12,922,325 | 88,499 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14660 | 1 |
| B | 0 | 16826 | 1 |
| C | 0 | 26062 | 1 |
| D | 0 | 42518 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5976 | 233 | 3.898929% |
| B | 5976 | 511 | 8.550870% |
| C | 5976 | 1738 | 29.082999% |
| D | 5976 | 5101 | 85.358099% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5991 | 5977 | 160 | 160 | 2.67% | 2.68% |  |
| B | 5991 | 5977 | 320 | 320 | 5.34% | 5.35% |  |
| C | 5991 | 5977 | 1485 | 1485 | 24.79% | 24.85% |  |
| D | 5991 | 5977 | 4445 | 4445 | 74.19% | 74.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 64 | 475987 | 3047.46 | 633 | 617 | 156.0 |
| A | 10 | 251 | 210942 | 1348.33 | 633 | 617 | 156.0 |
| A | 14 | 238 | 183109 | 1169.9 | 633 | 617 | 156.0 |
| B | 4 | 236 | 885251 | 6616.52 | 622 | 600 | 133.7 |
| B | 5 | 185 | 281018 | 2097.31 | 622 | 600 | 133.7 |
| B | 4 | 201 | 162868 | 1213.64 | 622 | 600 | 133.7 |
| C | 15 | 198 | 4982430 | 34085.2 | 530 | 524 | 146.2 |
| C | 12 | 252 | 110648 | 753.45 | 530 | 524 | 146.2 |
| C | 7 | 64 | 64446 | 437.34 | 530 | 524 | 146.2 |
| D | 12 | 110 | 10465015 | 89410.53 | 404 | 384 | 117.0 |
| D | 11 | 129 | 502503 | 4290.14 | 404 | 384 | 117.0 |
| D | 12 | 2 | 236437 | 2016.85 | 404 | 384 | 117.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

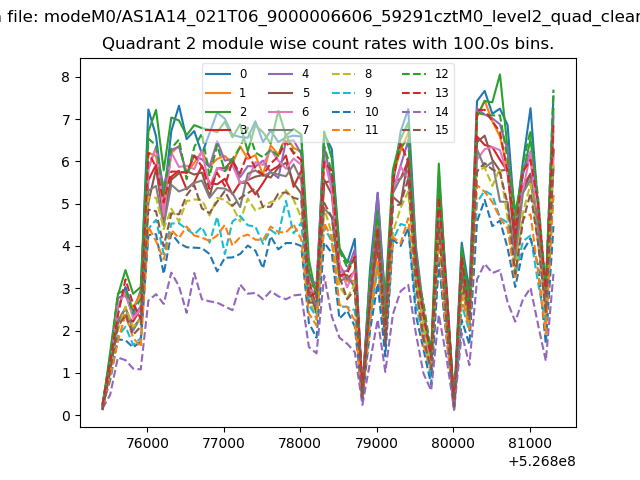

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|
| Tct |  |  |
