| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_021T06_9000006606_59303cztM0_level2.fits | modeM0/AS1A14_021T06_9000006606_59303cztM0_level2_quad_clean.evt |
| Size (bytes) | 717,376,320 | 123,503,040 |
| Size | 684.1 MB | 117.8 MB |
| Events in quadrant A | 3,917,629 | 841,877 |
| Events in quadrant B | 9,005,325 | 797,195 |
| Events in quadrant C | 4,465,435 | 805,580 |
| Events in quadrant D | 8,487,656 | 686,756 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18402 | 0 |
| B | 0 | 32877 | 0 |
| C | 0 | 19731 | 0 |
| D | 0 | 31370 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 0 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 0 |
| D | 0 | 174 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8761 | 66 | 0.753339% |
| B | 8762 | 1531 | 17.473180% |
| C | 8762 | 123 | 1.403789% |
| D | 8761 | 959 | 10.946239% |

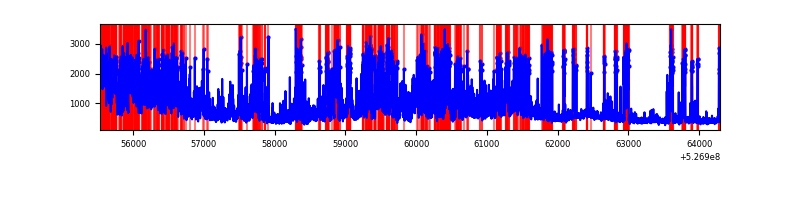

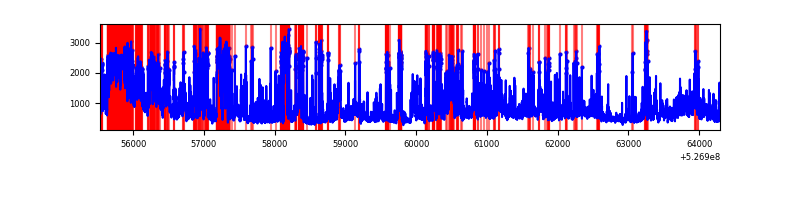

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8761 | 8761 | 61 | 61 | 0.70% | 0.70% |  |
| B | 8762 | 8762 | 1093 | 1093 | 12.47% | 12.47% |  |
| C | 8762 | 8762 | 123 | 123 | 1.40% | 1.40% |  |
| D | 8761 | 8761 | 883 | 883 | 10.08% | 10.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 206 | 192700 | 826.07 | 939 | 912 | 232.2 |
| A | 4 | 3 | 21629 | 89.23 | 939 | 912 | 232.2 |
| A | 7 | 64 | 19014 | 77.97 | 939 | 912 | 232.2 |
| B | 5 | 236 | 3748975 | 19784.73 | 891 | 858 | 189.4 |
| B | 4 | 236 | 1409477 | 7435.51 | 891 | 858 | 189.4 |
| B | 6 | 255 | 117548 | 615.96 | 891 | 858 | 189.4 |
| C | 12 | 252 | 617366 | 2437.71 | 926 | 918 | 252.9 |
| C | 4 | 5 | 167622 | 659.22 | 926 | 918 | 252.9 |
| C | 6 | 13 | 14239 | 52.68 | 926 | 918 | 252.9 |
| D | 11 | 129 | 2277510 | 9117.61 | 884 | 844 | 249.7 |
| D | 12 | 110 | 1434933 | 5743.25 | 884 | 844 | 249.7 |
| D | 12 | 2 | 976515 | 3907.37 | 884 | 844 | 249.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

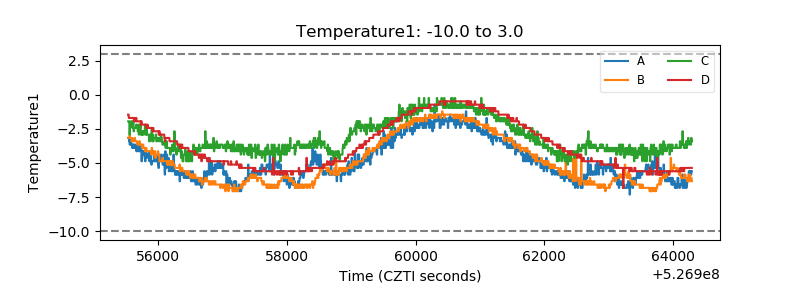

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

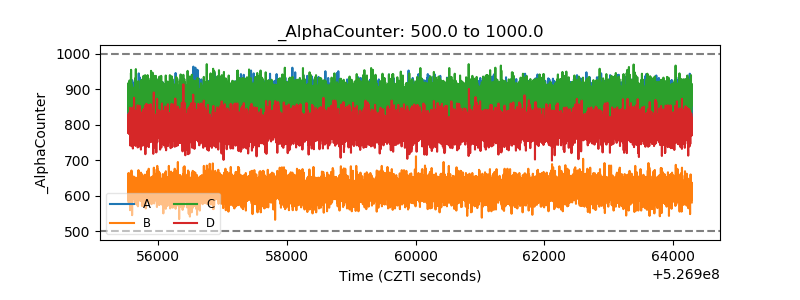

| Alpha Counter |  |
| _CPM_Rate |  |

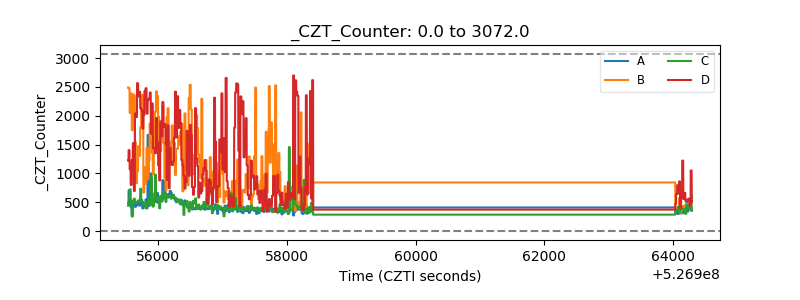

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

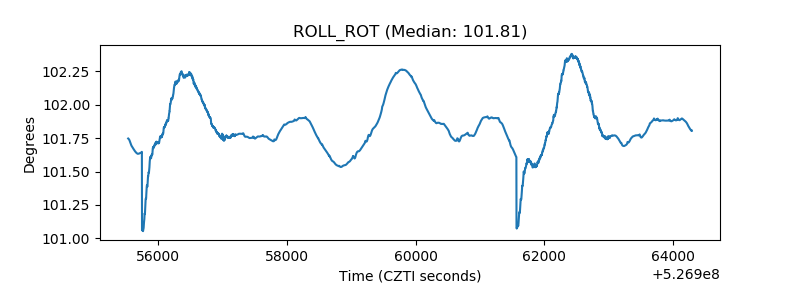

| _ROLL_ROT |  |
| _Roll_DEC |  |

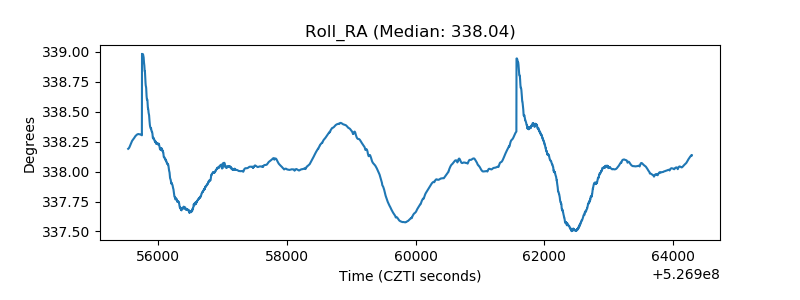

| _Roll_RA |  |
| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

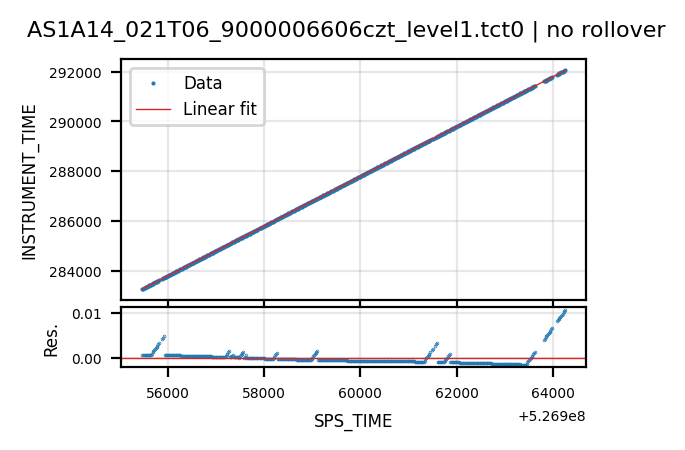

| Tct |  |  |
