| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_021T06_9000006606_59317cztM0_level2.fits | modeM0/AS1A14_021T06_9000006606_59317cztM0_level2_quad_clean.evt |
| Size (bytes) | 634,564,800 | 103,213,440 |
| Size | 605.2 MB | 98.4 MB |
| Events in quadrant A | 3,356,444 | 711,633 |
| Events in quadrant B | 6,174,888 | 723,871 |
| Events in quadrant C | 3,422,463 | 682,281 |
| Events in quadrant D | 9,957,861 | 488,388 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15723 | 0 |
| B | 0 | 23699 | 0 |
| C | 0 | 15809 | 0 |
| D | 0 | 34845 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7452 | 13 | 0.174450% |
| B | 7453 | 723 | 9.700792% |
| C | 7453 | 38 | 0.509862% |
| D | 7453 | 1765 | 23.681739% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

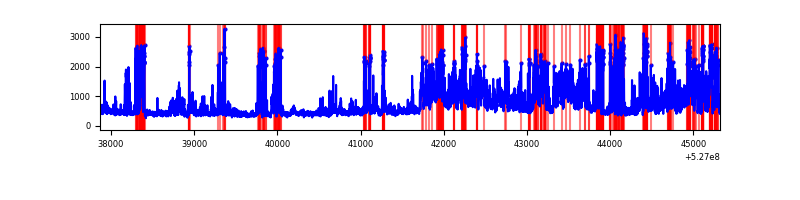

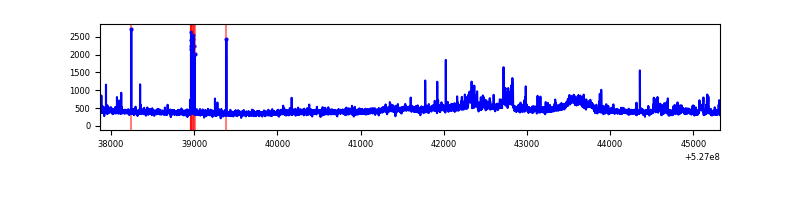

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7452 | 7452 | 10 | 10 | 0.13% | 0.13% |  |
| B | 7453 | 7453 | 435 | 435 | 5.84% | 5.84% |  |
| C | 7453 | 7453 | 34 | 34 | 0.46% | 0.46% |  |
| D | 7453 | 7453 | 1563 | 1563 | 20.97% | 20.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 118832 | 609.76 | 784 | 766 | 193.6 |
| A | 7 | 64 | 118599 | 608.56 | 784 | 766 | 193.6 |
| A | 3 | 245 | 36848 | 186.35 | 784 | 766 | 193.6 |
| B | 4 | 171 | 1833525 | 11257.47 | 764 | 737 | 162.8 |
| B | 4 | 236 | 823253 | 5052.11 | 764 | 737 | 162.8 |
| B | 5 | 236 | 212013 | 1297.71 | 764 | 737 | 162.8 |
| C | 4 | 5 | 145089 | 691.01 | 770 | 763 | 208.9 |
| C | 12 | 252 | 106136 | 504.51 | 770 | 763 | 208.9 |
| C | 6 | 13 | 39446 | 185.21 | 770 | 763 | 208.9 |
| D | 12 | 110 | 6581529 | 32704.83 | 704 | 674 | 201.2 |
| D | 11 | 129 | 227076 | 1125.15 | 704 | 674 | 201.2 |
| D | 2 | 249 | 153891 | 761.44 | 704 | 674 | 201.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

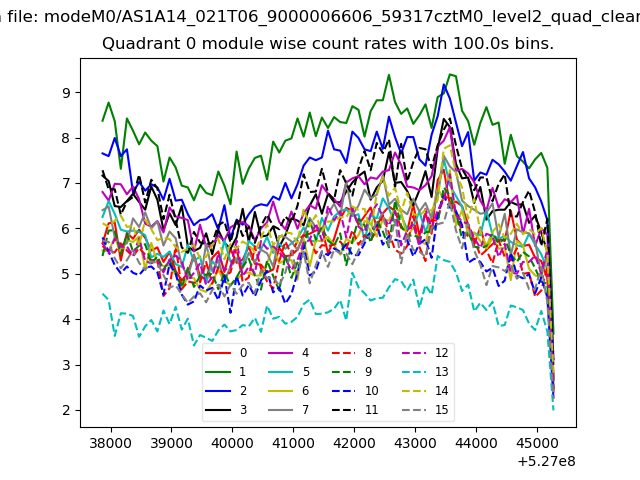

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

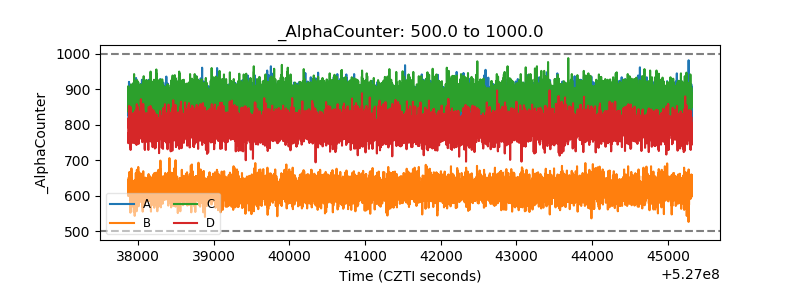

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

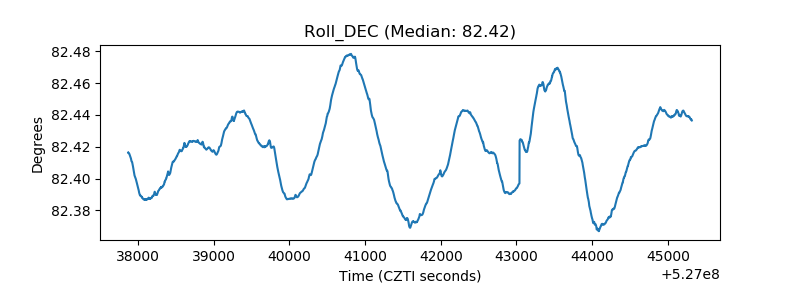

| _Roll_DEC |  |

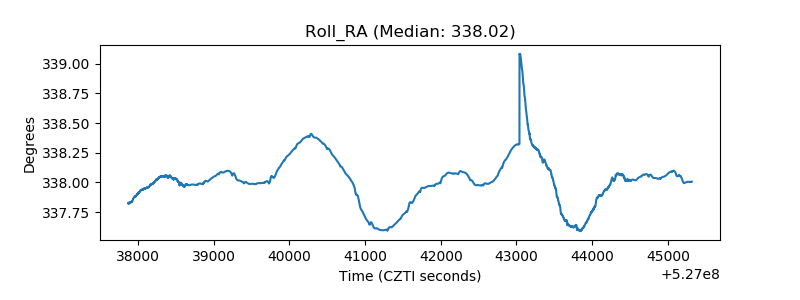

| _Roll_RA |  |

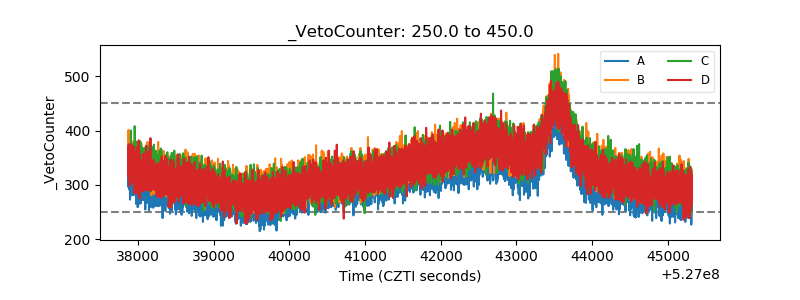

| Veto Counter |  |
| Parameter | TCT0 | TCT_healed |
|---|---|---|

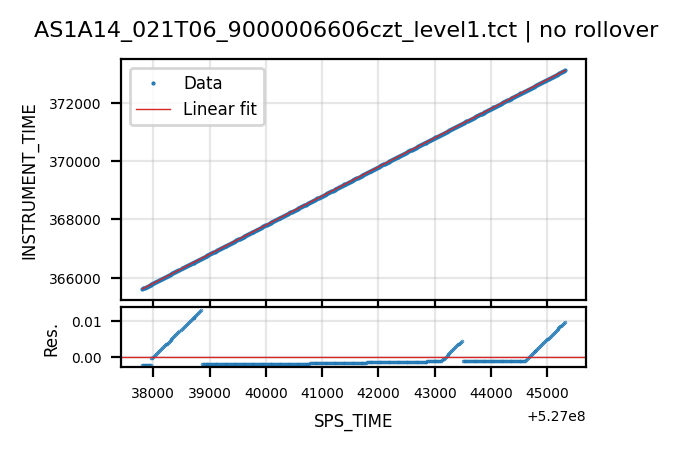

| Tct |  |  |
